COMSOL 6.4 - Results

1

In the Model Builder window, expand Results > Electric Field, First Wave (ewbe3)

, then click Electric Field

2

In the Settings window for Multislice, locate the Multiplane Data section.

3

Find the X-planes subsection. In the Planes text field, type 0.

4

Find the Y-planes subsection. In the Planes text field, type 0.

5

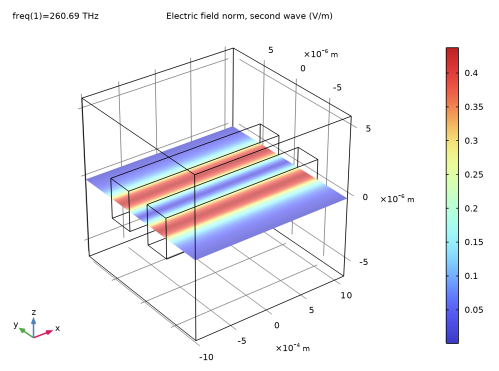

In the Electric Field, First Wave (ewbe3) toolbar, click Plot

This is the norm of the electric field of the first wave.

1

In the Model Builder window, expand Results > Electric Field, Second Wave (ewbe3)

, then click Electric Field

2

In the Settings window for Multislice, locate the Multiplane Data section.

3

Find the X-planes subsection. In the Planes text field, type 0.

4

Find the Y-planes subsection. In the Planes text field, type 0.

5

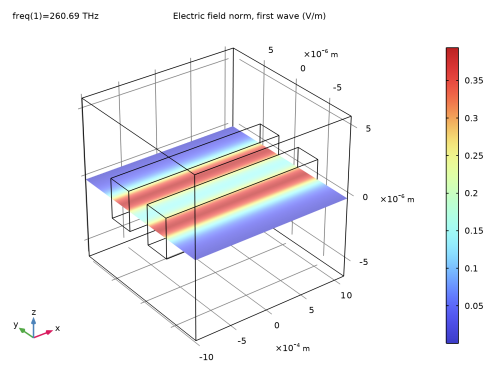

In the Electric Field, Second Wave (ewbe3) toolbar, click Plot

This is the norm of the electric field of the second wave.

Electric Field, Bidirectional, Mode Expansion

1

In the Model Builder window, right-click Electric Field, Second Wave (ewbe3)

and choose Duplicate

2

In the Settings window for 3D Plot Group, type Electric Field, Bidirectional, Mode Expansion in the Label text field.

1

In the Model Builder window, expand the Electric Field, Bidirectional, Mode Expansion

node, then click Electric Field

2

In the Settings window for Multislice, locate the Expression section.

3

In the Expression text field, type ewbe3.normE.

4

Click to expand the Quality section. From the Smoothing list, choose Everywhere.

1

Right-click the Electric Field

node and choose Deformation

2

In the Settings window for Deformation, locate the Expression section.

3

In the Z-component text field, type ewbe3.normE.

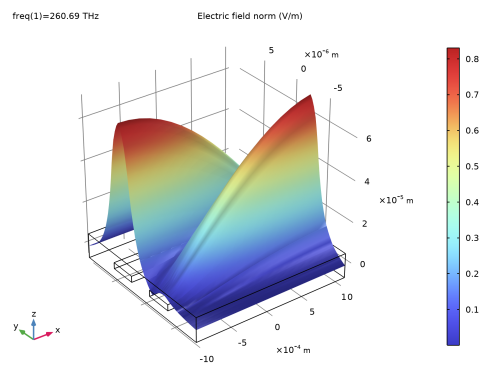

In the Electric Field, Bidirectional, Mode Expansion toolbar, click Plot

and click the Zoom Extents button

in the Graphics window toolbar.

It is clear that the input beam approximates the target field. Add a plot showing the difference between the target field and the actual field.

Electric Field, Difference Between Actual and Target

1

In the Home toolbar, click Add Plot Group

and choose 3D Plot Group

2

In the Settings window for 3D Plot Group, type Electric Field, Difference Between Actual and Target in the Label text field.

3

Locate the Data section. From the Dataset list, choose Study, Bidirectional, Mode Expansion/Solution 11.

1

Right-click Electric Field, Difference Between Actual and Target

and choose Surface

2

In the Settings window for Surface, locate the Expression section.

3

In the Expression text field, type Etarget.

1

Right-click Surface 1

and choose Deformation

2

In the Settings window for Deformation, locate the Expression section.

3

In the X-component text field, type -Etarget.

4

Locate the Scale section. Select the Scale factor checkbox.

5

In the associated text field, type 1E-3.

1

In the Model Builder window, right-click Electric Field, Difference Between Actual and Target

and choose Surface

2

In the Settings window for Surface, locate the Expression section.

3

In the Expression text field, type ewbe3.Ez.

4

Click to expand the Inherit Style section. From the Plot list, choose Surface 1.

1

Right-click Surface 2

and choose Selection

2

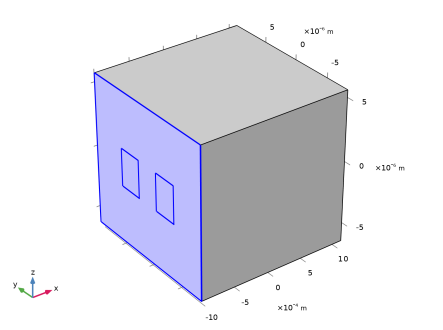

Select Boundaries 1, 5, and 10.

1

In the Model Builder window, right-click Surface 2

and choose Deformation

2

In the Settings window for Deformation, locate the Expression section.

3

In the X-component text field, type -ewbe3.Ez.

4

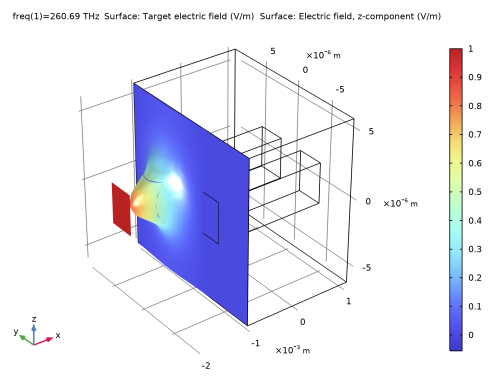

In the Electric Field, Difference Between Actual and Target toolbar, click Plot

and click the Zoom Extents button

in the Graphics window toolbar.

Again, this plot shows that the two modes are superposed to approximate the target field.
