Results
Electric Field
1
In the Model Builder window, expand the Results > Electric Field, First Wave (ewbe2) node and then click Electric Field .
2
In the Settings window for Multislice, locate the Multiplane Data section.
3
Find the X-planes subsection and enter 0 in the Planes text field.
4
Find the Y-planes subsection and enter 0 in the Planes text field.
5
In the Electric Field, First Wave (ewbe2) toolbar, click the Plot button .

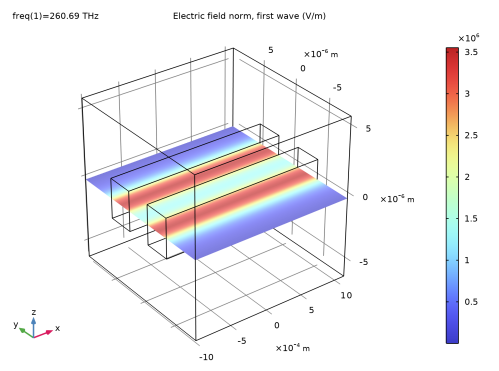

This is the norm of the electric field of the first wave. Notice that the field amplitude is constant in the propagation direction. Furthermore, between the waveguides, the field is never zero, as this is the symmetric mode.
Electric Field
1
In the Model Builder window, expand the Results > Electric Field, Second Wave (ewbe2) node and then click Electric Field .
2
In the Settings window for Multislice, locate the Multiplane Data section.
3
Find the X-planes subsection and enter 0 in the Planes text field.
4
Find the Y-planes subsection and enter 0 in the Planes text field.
5
In the Electric Field, Second Wave (ewbe2) toolbar, click the Plot button .

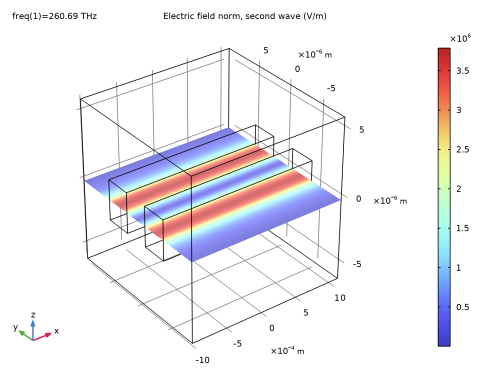

This is the norm of the electric field of the second wave. Notice that the field amplitude is constant in the propagation direction. For this antisymmetric mode, the field is zero at the plane centered between the waveguide cores.
Electric Field, Bidirectional
1
In the Model Builder window, right-click Electric Field, Unidirectional and choose Duplicate .
2
In the Settings window for 3D Plot Group, type Electric Field, Bidirectional in the Label text field.
3
Locate the Data section. From the Dataset list, choose Study, Bidirectional/Solution 6.
Electric Field
1
In the Model Builder window, expand the Electric Field, Bidirectional node, then click Electric Field .
2
In the Settings window for Multislice, locate the Expression section.
3
In the Expression text field, type ewbe2.normE.
Deformation 1
1
In the Model Builder window, expand the Electric Field node, then click Deformation 1.
2
In the Settings window for Deformation, locate the Expression section.
3
In the Z-component text field, type ewbe2.normE.
4
In the Electric Field, Bidirectional toolbar, click Plot . In the Graphics window toolbar, click Zoom Extents .

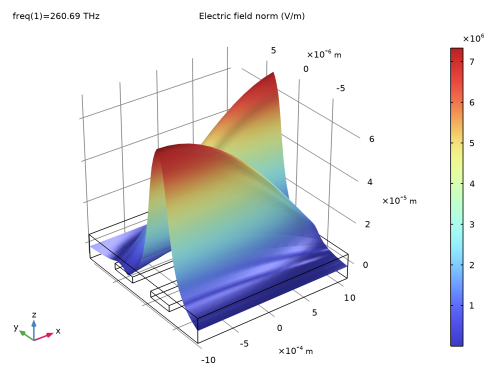

The resulting plot should look similar to Figure 20.
