2D Component
Now solve the space and time-dependent transport and reaction of solutes. For this purpose, the required interfaces are added. Note that the first study solved the coupled ODEs that describe the reactions. A new Study will be used for the coupled transport system.
5
In the Home toolbar click Add Physics . You can also right-click Component 1  in the Model Builder and choose Add Physics .
6

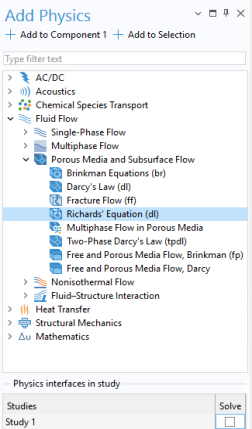

Go to the Add Physics window. In the Physics tree, under Fluid Flow > Porous Media and Subsurface Flow, select Richards’ Equations (dl) . Find the Physics interfaces in study section immediately below the tree (scroll down if necessary), and clear the Solve checkbox for this physics interface in Study 1.
7
Click Add to Component 1 .
8
In the Physics tree, under Chemical Species Transport, click Transport of Diluted Species in Porous Media (tds) . Find the Physics interfaces in study section and clear the Solve checkbox to deactivate this physics interface in Study 1.
9
Click to expand the Dependent variables section immediately below the Physics interfaces in study section. In the Number of species text field, type 3. Change the default names to c_a, c_asx, and c_asn.
10
Click the Add to Component 1  button.
11
In the Home toolbar click Add Physics  to close the Add Physics window.
Next, add a new time-dependent study for solving the recently added interfaces.
12
In the Home toolbar click Add Study .
13
Go to the Add Study window and find the Studies section. In the tree under General Studies select Time Dependent .
14
Go to the Physics interfaces in study section and clear the Solve checkbox for the Global ODEs and DAEs (ge)  interface.
15
Click the Add Study button
16
In the Home toolbar click Add Study  to close the Add Study window.
