Results
After updating the solution, a new plot has been added to Result Templates.
1
In the Home toolbar, click Result Templates to open the Result Templates window.
2
Go to the Result Templates window.
3
In the tree, select Study 1/Solution 1 (sol1) > Solid Mechanics > Failure Indices (solid) > Failure Index (Safety 1).
4
Click Add Result Template in the window toolbar.
5
In the Home toolbar, click Result Templates again to hide the Result Templates window.
6
In the Model Builder window, expand the Failure Index (Safety 1) node, then click Surface 1.
7
In the Settings window for Surface, click to expand the Range section.
8
Select the Manual color range checkbox.
9
In the Maximum text field, type 1.
10
In the Model Builder window, click Failure Index (Safety 1).
11
In the Settings window for 3D Plot Group, locate the Plot Settings section.
12
From the View list, choose New View.
13

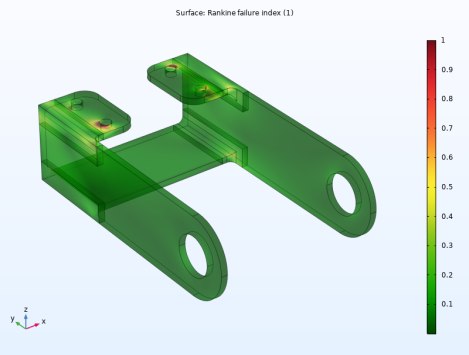

In the Failure Index (Safety 1) toolbar, click Plot .
14
In the Graphics toolbar, click the Scene Light , the Transparency , and the Show Grid buttons.
It is always a good idea to check that the reaction forces and moments match the applied loads. The reactions are available as a result template.
1
In the Home toolbar, click Result Templates to open the Result Templates window.
2
Go to the Result Templates window.
3
In the tree, select Study 1/Solution 1 (sol1) > Solid Mechanics > Total Reaction Forces and Moments (Solid Mechanics).
4
Click Add Result Template in the window toolbar.
5
In the Home toolbar, click Result Templates again to hide the Result Templates window.
Evaluation Group: Total Reaction Forces and Moments (Solid Mechanics)
1

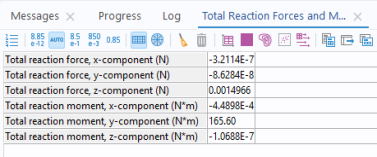

In the Total Reaction Forces and Moments (Solid Mechanics) toolbar, click Evaluate .
Since the loads have opposite direction, there should be not force resultant. The largest error is about 1 mN. The only nonzero reaction is the moment around the Y-axis. Make a quick computation to check that value. To do that, the distance between the two arms is needed.
2
In the Total Reaction Forces and Moments (Solid Mechanics) toolbar, click Measure, and choose Distance Measurement.
Distance Measurement 1
1
In the settings for Distance Measurement, select points 2 and 93.
2
In the Total Reaction Forces and Moments (Solid Mechanics) toolbar, click Evaluate . The distance is 0.207 m.
Global Evaluation 2
1
In the Model Builder window, right-click Total Reaction Forces and Moments (Solid Mechanics) and choose Global Evaluation.
2
In the Settings window for Global Evaluation, locate the Expressions section.
3
In the table enter 0.20700[m]*Fh. It is possible to Copy-Paste the number from the cell in the result table.
4

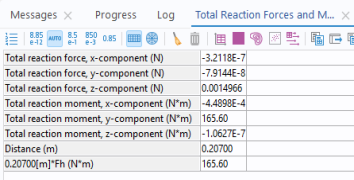

In the Total Reaction Forces and Moments (Solid Mechanics) toolbar, click Evaluate . The applied moment matched the computed reaction.
