Cylindrical
A sketch of the cylindrical journal bearing is given in
Figure 7-9
below:

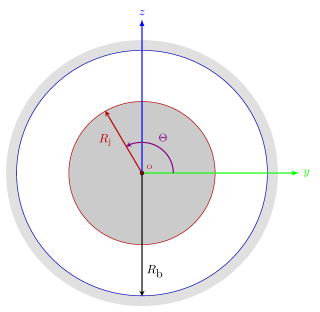

Figure 7-9:
Cylindrical journal bearing.
In this case, the initial film thickness does not depend on the polar coordinate,
Θ
, and is equal to the difference between the bearing and journal radius:
