The Radiation Pattern Plots

The plots are available with this module to plot the value of a global variable (for example, the far field norm, normEfar and normdBEfar, or components of the far-field variable Efar).

The variables are plotted for a selected number of angles on a unit circle (in 2D) or a unit sphere (in 3D). The angle interval and the number of angles can be manually specified. For 2D plots, the reference direction from which the angle is measured and the normal to the plane the far field is computed for can also be specified. For 3D plots, you also specify an expression for the surface color.

The main advantage with the plot, as compared to making a , is that the unit circle or sphere that you use for defining the plot directions is not part of your geometry for the solution. Thus, the number of plotting directions is decoupled from the discretization of the solution domain.


	Default Radiation Pattern plots of the far-field norm are automatically added to any model that uses far-field calculation features combined with a far-field domain feature. If a model is driven by ports or lumped ports, an antenna realized gain plot is added instead. An Export Expressions subfeature is also added under the default Radiation Pattern node to include elevation and azimuth angle information. This subfeature is useful when performing Add Plot Data to Export from the context menu.

Table 2-4: Variables and operators generated by far field.
	name	Description	Available component
Variables	normEfar	Far-field norm	2D, 2D Axisymmetric, 3D
	normdBEfar	Far-field norm, dB	2D, 2D Axisymmetric, 3D
	Efarx	Far-field variable, x component	2D, 3D
	Efary	Far-field variable, y component	2D, 3D
	Efarz	Far-field variable, z component	2D, 2D Axisymmetric, 3D
	Efarr	Far-field variable, r component	2D Axisymmetric
	EIRP	Effective isotropic radiated power	2D Axisymmetric, 3D
	EIRPdB	Effective isotropic radiated power, dB	2D Axisymmetric, 3D
	gainEfar	Far-field gain	2D Axisymmetric, 3D
	gaindBEfar	Far-field gain, dB	2D Axisymmetric, 3D
	axialRatio	Axial ratio	3D
	axialRatiodB	Axial ratio, dB	3D
	bRCS3D	Bistatic radar cross section	3D
	mRCS3D	Monostatic radar cross section	3D
	Efarphi	Far-field variable, phi component	2D Axisymmetric, 3D
	Efartheta	Far-field variable, theta component	3D
	EfarRHCP	Far-field variable, right-hand circular polarization	3D
	EfarLHCP	Far-field variable, left-hand circular polarization	3D
	rGainEfar	Far-field realized gain	2D Axisymmetric, 3D
	rGaindBEfar	Far-field realized gain, dBi	2D Axisymmetric, 3D
	rGainLHCP	Far-field realized gain, left-hand circular polarization	3D
	rGaindBLHCP	Far-field realized gain, left-hand circular polarization, dBc	3D
	rGainRHCP	Far-field realized gain, right-hand circular polarization	3D
	rGaindBRHCP	Far-field realized gain, right-hand circular polarization, dBc	3D
	TRP	Total radiated power	2D Axisymmetric, 3D
	TRPdB	Total radiated power, dB	2D Axisymmetric, 3D
	bRCS2D	Bistatic radar cross section per unit length	2D
	mRCS2D	Monostatic radar cross section per unit length	2D
	maxD	Maximum directivity1	2D Axisymmetric, 3D
	maxDdB	Maximum directivity, dB1	2D Axisymmetric, 3D
	maxGain	Maximum gain1	2D Axisymmetric, 3D
	maxGaindB	Maximum gain, dB1	2D Axisymmetric, 3D
	maxRGain	Maximum realized gain1	2D Axisymmetric, 3D
	maxRGaindB	Maximum realized gain, dB1	2D Axisymmetric, 3D
Functions4	norm3DEfar	3D far-field norm2	2D Axisymmetric
	normdB3DEfar	3D far-field norm, dB2	2D Axisymmetric
	af3	Uniform three dimensional array factor3	2D Axisymmetric, 3D
	af2	Uniform two dimensional array factor3	2D
	afhex	Hexagonal uniform array factor3	3D
	normEfar_opt	Far-field norm	2D, 2D Axisymmetric, 3D
	normdBEfar_opt	Far-field norm, dB	2D, 2D Axisymmetric, 3D
	Efarx_opt	Far-field variable, x component	2D, 3D
	Efary_opt	Far-field variable, y component	2D, 3D
	Efarz_opt	Far-field variable, z component	2D, 2D Axisymmetric, 3D
	Efarr_opt	Far-field variable, r component	2D Axisymmetric
	EIRP_opt	Effective isotropic radiated power	2D Axisymmetric, 3D
	EIRPdB_opt	Effective isotropic radiated power, dB	2D Axisymmetric, 3D
	axialRatio_opt	Axial ratio	3D
	axialRatiodB_opt	Axial ratio, dB	3D
	Efarphi_opt	Far-field variable, phi component	2D Axisymmetric, 3D
	Efartheta_opt	Far-field variable, theta component	3D
	rGainEfar_opt	Far-field realized gain	2D Axisymmetric, 3D
	rGaindBEfar_opt	Far-field realized gain, dBi	2D Axisymmetric, 3D
	maxRGain_opt	Maximum realized gain1	2D Axisymmetric, 3D
	maxRGaindB_opt	Maximum realized gain, dB1	2D Axisymmetric, 3D

1See Directivity via Global Evaluation.

2See 3D Far-Field Norm Functions in 2D Axisymmetry.

3See Array Factor Operators.

4See Far-Field Analysis Using Functions and Operators.

Far-Field Analysis Using Functions and Operators

The postprocessing far-field functions are available under > > . Below you find example models using these functions and some links to more information.

•

2D example with a Polar Plot Group — Radar Cross Section: Application Library path

•

2D axisymmetric example with a Polar Plot Group and a 3D Plot Group — Conical Antenna: Application Library path

•

3D example with a Polar Plot Group and a 3D Plot Group — Radome with Double-Layered Dielectric Lens: Application Library path

•

Uniform array factor operator used in a Polar Plot Group and a 3D Plot Group — Microstrip Patch Antenna: Application Library path

•

Realized gain operator used for shape optimization — Optimizing the Front End of a Conical Horn-Lens Antenna: Application Library path

•

Far-Field Support in the Electromagnetic Waves, Frequency Domain Interface

•

Radiation Pattern in the COMSOL Multiphysics Reference Manual

3D Far-Field Norm Functions in 2D Axisymmetry

The functions norm3DEfar and normdB3DEfar calculate the 3D far-field norms, based on field solutions in 2D axisymmetric geometry. These functions are available in these cases:

•

Far-field analysis using circular port excitation with a positive azimuthal mode number

•

Scattered field analysis excited by the predefined circularly polarized plane wave type

The function can be used in a 3D plot, where the input argument of the function must be same as the in the section in the window.

The suffix of a function name varies based on the circular port mode type, port mode number, and azimuthal mode number in the physics interface. For example, when using azimuthal mode number 1 in the physics interface and transverse electric (TE) mode with mode number 2 in the port settings, the generated operator name is norm3DEfar_TE12.

When the function is used in a radiation pattern plot under a 1D or a polar plot group, the value of input argument defines the plotting plane regardless of the normal and reference direction in the section in the window. For example, norm3DEfar_TE12(0)evaluates the norm of the electric far field for the TE12 mode for a 0-degree azimuthal angle. This is equivalent to plotting this variable on the xz-plane. Similarly, norm3DEfar_TE12(pi/2) is the evaluation at a 90-degree azimuthal angle, which is equivalent to plotting the variable on the yz-plane.

The 3D far-field norm, the linear superposition of the positive and negative azimuthal modes scaled by 0.5, is

where ϕ is the azimuthal angle.

Array Factor Operators

Uniform array factor

The equation for the uniform three dimensional array factor operator af3 is

where θ is the elevation angle and ϕ is the azimuthal angle.

The uniform two-dimensional array factor operator af2 is simpler than the three-dimensional version, as the third, the z-component factor, is unity.

The number of input arguments for the array factor operators depends on the dimension of model component, 2D, 2D Axisymmetric, or 3D.

Table 2-5: Input arguments of uniform array factor operator.
Argument	Description	unit	Component
nx	Number of elements along x-axis	Dimensionless	2D, 2D Axisymmetric, 3D
ny	Number of elements along y-axis	Dimensionless	2D, 2D Axisymmetric, 3D
nz	Number of elements along z-axis	Dimensionless	2D Axisymmetric, 3D
dx	Distance between array elements along x-axis	Wavelength	2D, 2D Axisymmetric, 3D
dy	Distance between array elements along y-axis	Wavelength	2D, 2D Axisymmetric, 3D
dz	Distance between array elements along z-axis	Wavelength	2D Axisymmetric, 3D
alphax	Phase progression along x-axis	Radian	2D, 2D Axisymmetric, 3D
alphay	Phase progression along y-axis	Radian	2D, 2D Axisymmetric, 3D
alphaz	Phase progression along z-axis	Radian	2D Axisymmetric, 3D

Hexagonal uniform array factor

When array elements are distributed not on a conventional rectangular grid but on a triangular grid forming a hexagonal shape array, the two-dimensional afhex operator is available in a 3D model.

Table 2-6: Input arguments of Hexagonal uniform array factor operator.
Argument	Description	unit	Component
np	Number of elements along diagonal axis	Dimensionless	3D
dx	Distance between array elements along x-axis	Wavelength	3D
dy	Distance between array elements along y-axis	Wavelength	3D

For an odd number of array elements, the number of elements on the diagonal axis is also an odd number. For instance, when np is set to 15, the number of elements, n, on a hexagonal array edge, (np + 1)/2, evaluates to 8 and the total number of array elements, 3n2 − 3n + 1, is then 169.

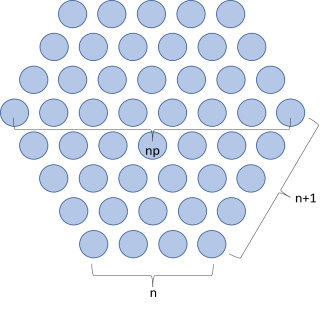

Figure 2-2: Configuration for an odd number hexagonal array.

For an even number of array elements, the number of elements on the diagonal axis is also an even number. The shape of the hexagon is uneven and configured with two edge sizes. The number of elements on the smaller edge n is np/2 and the other edge has n + 1 elements. When np is set to 8, the total number of array elements, 3n2, is 48.

Figure 2-3: Configuration for an even number hexagonal array.

Antenna Analysis Using Far-Field Variables

The directional properties of a radiation pattern described by variables, generated from a far-field calculation feature, help to characterize the performance of antenna devices.

Directivity from a 3D Plot

While plotting a 3D radiation pattern, the maximum directivity can be calculated by evaluating the ratio between the radiation intensity and the average value of the radiation intensity. Since the radiation intensity is a function of power, the square of the far-field norm has to be used in the in the settings window for the antenna directivity calculation. For other physics interfaces, such as in the Acoustics module, the expression is different.

Directivity via Global Evaluation

The maximum directivity can be computed through > > . This calculation is based on the maximum and averaged intensity values on the far-field calculation selection. It requires the selection for the far-field calculation feature to be spherical for 3D and circular for 2D axisymmetric model components, both centered at the origin.

Gain

The antenna realized gain is defined as

where U is the radiation intensity,

, and Pin is the total input power.

The antenna gain is

where the delivered power, Pdelivered is Pin(1 − |S11|2). The gain is available only when the S-parameter calculation is valid, that is, for the single port excitation case.
