Results

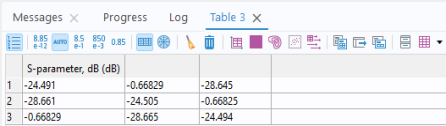

After the computation finishes, inspect the full 3 by 3 S-parameter matrix generated by the default Global Matrix Evaluation
.
Alternatively you can open the Table window from the Home toolbar by clicking Windows and choosing Table
.
Note:
The matrix is nonsymmetric, which is typical for a device based on a gyrotropic material. There are three groups of matrix elements that differ in the fourth digit. These should in theory be equal within each group so this gives some indication of the discretization errors.
.
.
