Results
Electric Field
The default multislice plot shows the electric field norm. It is best viewed from above, so click the Go to XY View
button in the Graphics toolbar.

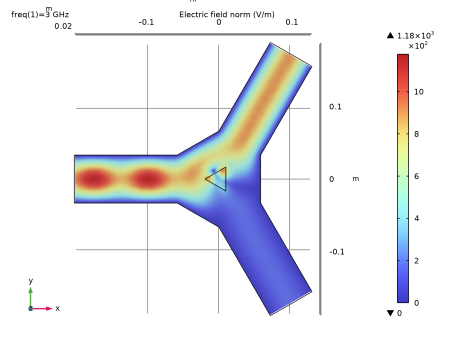

The electric field norm gives a good indication of where the main power is flowing and where there are standing waves due to reflections from the impedance mismatch at the center.
button in the Graphics toolbar.
