Heat Transfer in Solids and Fluids
In the Model Builder window, under Component 1 click Heat Transfer in Solids and Fluids .

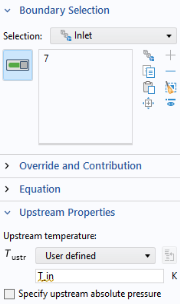

Inflow 1
1
2
3
The water temperature T_in is a priori unknown (indicated by the yellow wavy line under the expression), because it increases over time during the charging process. While water is pumped through a closed loop, it is heated by a solar system. Therefore you later define the variable T_in as a function of the outlet temperature and the solar heating power using Equation 1.
Outflow 1
1
2
