Study 1
Step 1: Time Dependent
1
In the Model Builder window, under Study 1 click Step 1: Time Dependent.
2
In the Settings window for Time Dependent, click to expand the Results While Solving section.
3
Select the Plot checkbox.
4
From the Update at list, choose Time steps taken by solver.
Getting the initial values for the step also creates the solver suggestions based on the existing physics.
Solver Configurations
In the Model Builder window, expand the Study 1 > Solver Configurations node.
Solution 1 (sol1)
1
In the Model Builder window, expand the Study 1 > Solver Configurations > Solution 1 (sol1) node, then click Time-Dependent Solver 1.
2
In the Settings window for Time-Dependent Solver, click to expand the Time Stepping section.
3
From the Method list, choose Generalized alpha.
4
From the Maximum step constraint list, choose Expression.
5
In the Maximum step text field, type comp1.vef.dt_CFL.
6
In the Model Builder window, expand the Study 1 > Solver Configurations > Solution 1 (sol1) > Time-Dependent Solver 1 node, then click Automatic Remeshing.
7

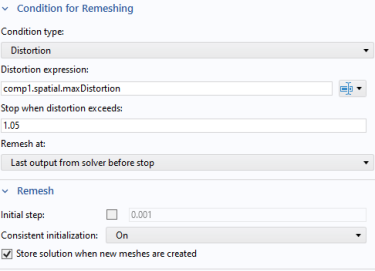

In the Settings window for Automatic Remeshing, locate the Condition for Remeshing section.
8
From the Condition type list, choose Distortion.
9
Reduce the default value. Type 1.05 in the Stop when distortion exceeds field.
10
From the Remesh at list, choose Last output from solver before stop.
11
Locate the Remesh section. From the Consistent initialization list, choose On.
12
Click  Compute.
