Coating Fluid Parameters
1
In the Model Builder window, under Global Definitions > Materials click Material 2 (mat2).
2
In the Settings window for Material, type Coating Fluid in the Label text field.
3

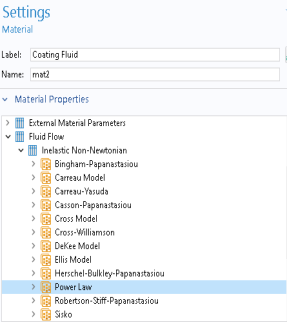

Locate the Material Properties section. In the Material properties tree, select Fluid Flow > Inelastic Non-Newtonian > Power Law.
4
Right-click and choose Add to Material.
Use the parameters from the least-squares fit lsq1.m and lsq1.n to define material coefficients.
5
Locate the Material Contents section. In the table, enter the following settings:
Property
Variable
Value
Unit
Property group
Fluid consistency coefficient
m_pow
lsq1.m
Pa·s
Power law
Flow behavior index
n_pow
lsq1.n
1
Power law
Density
rho
1400
kg/m³
Basic
