Definitions
1
In the Definitions toolbar, click Explicit .
2
In the Settings window, type Walls in the Label field.
3
Locate the Input Entities section.
4
From the Geometric entity level list, choose Boundary.
5
Go to the Home tab on the Model desktop toolbar, then choose Windows > Selection List.
6
Select Boundaries 6, 8, 35–38, 44, 45, and 51–56 only (by holding shown shift and clicking on the list), then click the Add to selection button at the top of the Selection List settings window. The selected boundaries in the graphics window will turn blue, indicating that the selection is confirmed.
7
Click back on the Model Builder tab.
8
In the Definitions toolbar, click Explicit .
9
In the Settings window, type Coils in the Label field.
10
Click on the Selection List tab and select Domains 6 and 8–11 only, then click the Add to selection button at the top of the Selection List settings window.
11
Click back on the Model Builder tab.
12
In the Definitions toolbar, click Explicit .
13
In the Settings window, type Coil Boundaries in the Label field.
14
Click on the Selection List tab and select Domains 6 and 8–11 only, then click the Add to selection button at the top of the Selection List settings window.
15
Click back on the Model Builder tab. In the Explicit settings window, locate the Output Entities section.
16
From the Output entities list, choose Adjacent boundaries.
17
Go to the Model desktop toolbar.
18
In the Home toolbar, click Parameters and select Parameters 1.
19

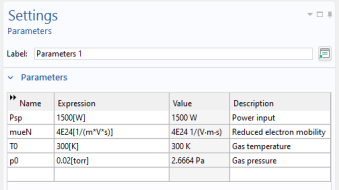

In the Parameters settings window, locate the Parameters section.
In the table, enter the following settings:
