Importing the Geometry
The next step is to create your geometry, which also can be imported from an external program. COMSOL Multiphysics supports a multitude of CAD programs and file formats. In this example, insert the prepared geometry sequence from a file in the COMSOL Multiphysics file format (.mph). The file contains the geometry of the GEC reference cell.
The location of the files used in this exercise varies based on your installation. For example, if the installation is on your hard drive, the file path might be similar to
C:\Program Files\COMSOL\COMSOL64\applications\
.
1
In the Geometry toolbar, click Insert Sequence
.
2
Browse to the folder Plasma_Module\Inductively_Coupled_Plasmas under the COMSOL installation directory and double-click on the file
argon_gec_icp_geom.mph.
3

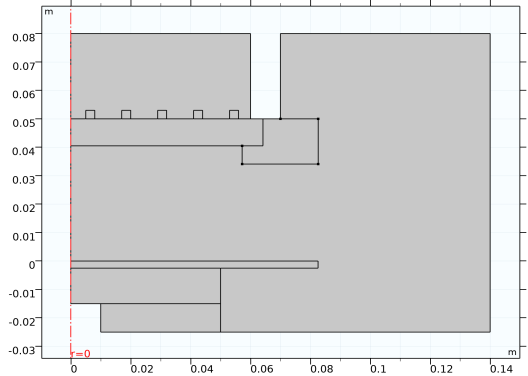

Click the Import button. The geometry should appear in the Graphics window as shown below.
.
