Results

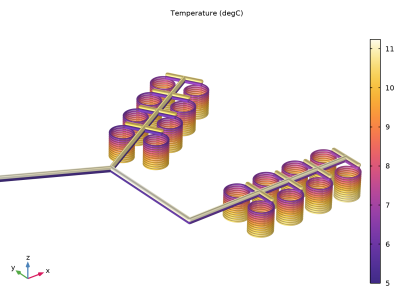

Figure 13
shows the pressure (Pa) in the 1446 m pipe system assuming that water enters the system at a rate of 4 l/s.
Figure 13:
Pressure drop over the pipe system due to flow losses.
The plot below shows the temperature distribution for the pipe fluid. It enters the pipe system at 5 °C and exits with a temperature of approximately 11 °C.
Figure 14:
Temperature of the pipe fluid.

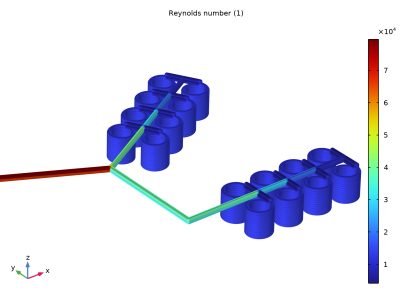

Turbulent flow conditions in the loop are important for good heat exchange between the pipes and the surroundings. A plot of the Reynolds number is shown in
Figure 15
, confirming that flow is turbulent (Re > 3000) throughout the system.
Figure 15:
The Reynolds number in the pipe loop confirms that the flow conditions are turbulent.
