Study
1
In the Home toolbar click Compute
. In this model, the default solver sequence for the Stationary study is sufficient to model the flow. The study creates default plots of the fluid velocity and pressure as shown below. The legends have been moved to the bottom of each plot to make the results easier to see.

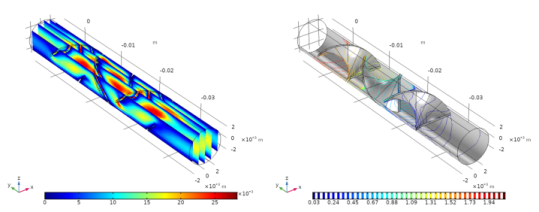

Default plots of the fluid velocity (left) and pressure (right).
