Thick Plate Stress Analysis
Introduction
This example implements the static stress analysis described in the NAFEMS Test No LE10, “Thick Plate Pressure,” found on page 77 in the NAFEMS report Background to Benchmarks (Ref. 1). The computed stress level is compared with the values given in the benchmark report.
Model Definition
The geometry is an ellipse with an ellipse-shaped hole in it. Due to symmetry in load and in geometry, the analysis only includes a quarter of the ellipse.
Figure 1: The thick plate geometry, reduced to a quarter of the ellipse due to symmetry.
Material
Isotropic with E = 210 GPa, ν = 0.3.
Load
A distributed load of 1 MPa on the upper surface pointing in the negative z direction.
Constraints
•
Symmetry planes, x = 0, y = 0.
•
Outer ellipse surface constrained in the x and y directions.
•
Midplane on outer ellipse surface constrained in the z direction.
Results
The normal stress σy is evaluated on the top surface at the inside of the elliptical hole, point D in Figure 1 with coordinate (2, 0, 0.6). It is in good agreement with the NAFEMS benchmark (Ref. 1), considering the coarse mesh. The difference is about 6%.
Result
COMSOL Multiphysics
NAFEMS (Ref. 1)
 σy (at D)
-5.72 MPa
-5.38 MPa
The y-component of the stress is shown in Figure 2.

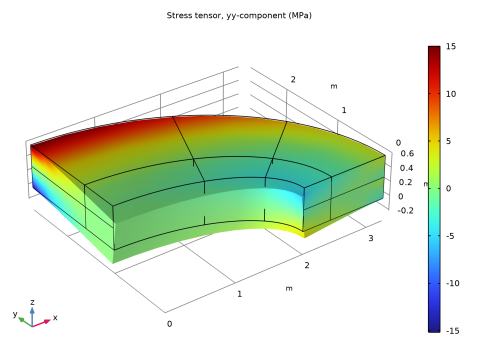

Figure 2: The stress in the y direction.
A note about this example is that the z direction constraint is applied to an edge only. This is a singular constraint, which causes local stresses at the constrained edge. These stresses are unlimited from a theoretical point of view, and in practice the stresses and vertical displacements are strongly mesh dependent. This does not invalidate the possibility to determine stresses at a distance far away from the singular constraint.
Notes About the COMSOL Implementation
In order to get the same mesh as in the original benchmark, some extra lines are drawn in the 2D geometry. As an effect, there will be several domains. This approach is efficient in this simple example, whereas for more complex geometries, the use of Mesh Control Domains should be considered.
Reference
1. G.A.O. Davies, R.T. Fenner, and R.W. Lewis, Background to Benchmarks, NAFEMS, Glasgow, 1993.
Application Library path: Structural_Mechanics_Module/Verification_Examples/thick_plate
Modeling Instructions
From the File menu, choose New.
New
In the New window, click  Model Wizard.
Model Wizard
1
In the Model Wizard window, click  3D.
2
In the Select Physics tree, select Structural Mechanics > Solid Mechanics (solid).
3
Click Add.
4
Click  Study.
5
In the Select Study tree, select General Studies > Stationary.
6
Click  Done.
Geometry 1
If you do not want to build all the geometry, you can load the geometry sequence from the stored model. In the Model Builder window, under Component 1 (comp1) right-click Geometry 1 and choose Insert Sequence. Browse to the model’s Application Libraries folder and double-click the file thick_plate.mph. You can then continue to the Add Material section below.
To build the geometry from scratch, continue here.
Work Plane 1 (wp1)
1
In the Geometry toolbar, click  Work Plane.
2
In the Settings window for Work Plane, click  Go to Plane Geometry.
Work Plane 1 (wp1) > Plane Geometry
In the Model Builder window, click Plane Geometry.
Work Plane 1 (wp1) > Ellipse 1 (e1)
1
In the Work Plane toolbar, click  Ellipse.
2
In the Settings window for Ellipse, locate the Size and Shape section.
3
In the a-semiaxis text field, type 3.25.
4
In the b-semiaxis text field, type 2.75.
5
In the Sector angle text field, type 90.
6
Click  Build Selected.
7
Click the  Zoom Extents button in the Graphics toolbar.
Work Plane 1 (wp1) > Ellipse 2 (e2)
1
In the Work Plane toolbar, click  Ellipse.
2
In the Settings window for Ellipse, locate the Size and Shape section.
3
In the a-semiaxis text field, type 2.
4
In the Sector angle text field, type 90.
5
Click  Build Selected.
Work Plane 1 (wp1) > Ellipse 3 (e3)
1
In the Work Plane toolbar, click  Ellipse.
2
In the Settings window for Ellipse, locate the Size and Shape section.
3
In the a-semiaxis text field, type 2.416.
4
In the b-semiaxis text field, type 1.583.
5
In the Sector angle text field, type 90.
6
Click  Build Selected.
Work Plane 1 (wp1) > Difference 1 (dif1)
1
In the Work Plane toolbar, click  Booleans and Partitions and choose Difference.
2
Select the objects e1 and e3 only.
3
In the Settings window for Difference, locate the Difference section.
4
Click to select the  Activate Selection toggle button for Objects to subtract.
5
Select the object e2 only.
6
Click  Build Selected.
Work Plane 1 (wp1) > Polygon 1 (pol1)
1
In the Work Plane toolbar, click  Polygon.
2
In the Settings window for Polygon, locate the Object Type section.
3
From the Type list, choose Open curve.
4
Locate the Coordinates section. In the table, enter the following settings:
xw (m)
yw (m)
1.783
2.3
1.165
0.812
Work Plane 1 (wp1) > Polygon 2 (pol2)
1
In the Work Plane toolbar, click  Polygon.
2
In the Settings window for Polygon, locate the Object Type section.
3
From the Type list, choose Open curve.
4
Locate the Coordinates section. In the table, enter the following settings:
xw (m)
yw (m)
2.833
1.348
1.783
0.453
5
In the Work Plane toolbar, click  Build All.
Work Plane 1 (wp1) > Plane Geometry
Click the  Zoom Extents button in the Graphics toolbar.
Work Plane 1 (wp1) > Partition Objects 1 (par1)
1
In the Work Plane toolbar, click  Booleans and Partitions and choose Partition Objects.
2
Select the object dif1 only.
3
In the Settings window for Partition Objects, locate the Partition Objects section.
4
Click to select the  Activate Selection toggle button for Tool objects.
5
Select the objects pol1 and pol2 only.
6
Click  Build Selected.

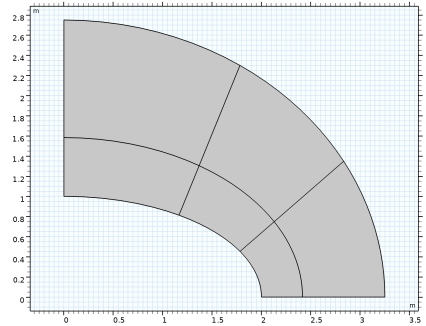

Extrude 1 (ext1)
1
In the Model Builder window, under Component 1 (comp1) > Geometry 1 right-click Work Plane 1 (wp1) and choose Extrude.
2
In the Settings window for Extrude, locate the Distances section.
3
In the table, enter the following settings:
Distances (m)
0.3
0.6
4
Click  Build Selected.
5
Click the  Zoom Extents button in the Graphics toolbar.

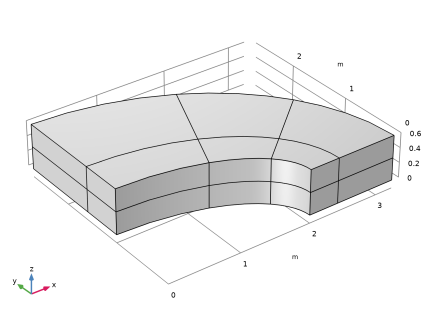

Materials
Material 1 (mat1)
1
In the Model Builder window, under Component 1 (comp1) right-click Materials and choose Blank Material.
2
In the Settings window for Material, locate the Material Contents section.
3
In the table, enter the following settings:
Property
Variable
Value
Unit
Property group
Young’s modulus
E
210[GPa]
Pa
Young’s modulus and Poisson’s ratio
Poisson’s ratio
nu
0.3
1
Young’s modulus and Poisson’s ratio
Density
rho
7850
kg/m³
Basic
Solid Mechanics (solid)
Symmetry 1
1
In the Physics toolbar, click  Boundaries and choose Symmetry.
2
Select Boundaries 1, 4, 8, 11, 40, 41, 49, and 50 only.
Prescribed Displacement 1
1
In the Physics toolbar, click  Boundaries and choose Prescribed Displacement.
2
Select Boundaries 15, 16, 31, 32, 51, and 52 only.
3
In the Settings window for Prescribed Displacement, locate the Prescribed Displacement section.
4
From the Displacement in x direction list, choose Prescribed.
5
From the Displacement in y direction list, choose Prescribed.
Prescribed Displacement 2
1
In the Physics toolbar, click  Edges and choose Prescribed Displacement.
2
Select Edges 20, 41, and 72 only.
3
In the Settings window for Prescribed Displacement, locate the Prescribed Displacement section.
4
From the Displacement in z direction list, choose Prescribed.
Boundary Load 1
1
In the Physics toolbar, click  Boundaries and choose Boundary Load.
2
Select Boundaries 7, 14, 23, 30, 39, and 48 only.
3
In the Settings window for Boundary Load, locate the Force section.
4
Specify the fA vector as
0
x
0
y
-1[MPa]
z
Mesh 1
Mapped 1
In the Mesh toolbar, click  More Generators and choose Mapped.
Distribution 1
Right-click Mapped 1 and choose Distribution.
Mapped 1
Select Boundaries 7, 14, 23, 30, 39, and 48 only.
Distribution 1
1
In the Model Builder window, click Distribution 1.
2
In the Settings window for Distribution, locate the Distribution section.
3
In the Number of elements text field, type 2.
4
Locate the Edge Selection section. From the Selection list, choose All edges.
5
Click  Build Selected.
Swept 1
1
In the Mesh toolbar, click  Swept.
2
In the Settings window for Swept, click  Build All.
Study 1
In the Study toolbar, click  Compute.
Set default units for result presentation.
Results
Preferred Units 1
1
In the Results toolbar, click  Configurations and choose Preferred Units.
2
In the Settings window for Preferred Units, locate the Units section.
3
Click  Add Physical Quantity.
4
In the Physical Quantity dialog, select Solid Mechanics > Stress tensor (N/m^2) in the tree.
5
Click OK.
6
In the Settings window for Preferred Units, locate the Units section.
7
In the table, enter the following settings:
Quantity
Unit
Preferred unit
Stress tensor
N/m^2
MPa
8
Select the Apply conversions to expressions with the same dimensions checkbox.
9
Click  Apply.
Point Evaluation 1
1
In the Results toolbar, click  Point Evaluation.
2
Select Point 24 only.
This corresponds to point D in Figure 1.
3
In the Settings window for Point Evaluation, click Replace Expression in the upper-right corner of the Expressions section. From the menu, choose Component 1 (comp1) > Solid Mechanics > Stress > Stress tensor (spatial frame) - N/m² > solid.sGpyy - Stress tensor, yy-component.
4
Locate the Expressions section. In the table, enter the following settings:
Expression
Unit
Description
solid.sGpyy
MPa
Stress tensor, y-component (COMSOL)
-5.38[MPa]
MPa
Stress tensor, y-component (NAFEMS)
5
Click  Evaluate.
Stress (solid)
Modify the default surface plot to show the y-component of the stress tensor.
Volume 1
1
In the Model Builder window, expand the Results > Stress (solid) node, then click Volume 1.
2
In the Settings window for Volume, click Replace Expression in the upper-right corner of the Expression section. From the menu, choose Component 1 (comp1) > Solid Mechanics > Stress > Stress tensor (spatial frame) - N/m² > solid.sGpyy - Stress tensor, yy-component.
3
Locate the Coloring and Style section. From the Color table list, choose Rainbow.
4
In the Stress (solid) toolbar, click  Plot.
