COMSOL 6.4 - Waveguide Adapter

This is a model of an adapter for microwave propagation in the transition between a rectangular and an elliptical waveguide. Such waveguide adapters are designed to keep energy losses due to reflections at a minimum for the operating frequencies. To investigate the characteristics of the adapter, the simulation includes a wave traveling from a rectangular waveguide through the adapter and into an elliptical waveguide. The S-parameters are calculated as functions of the frequency. The involved frequencies are all in the single-mode range of the waveguide, that is, the frequency range where only one mode is propagating in the waveguide.

Model Definition

The waveguide adapter consists of a rectangular part smoothly transcending into an elliptical part as seen in Figure 1.

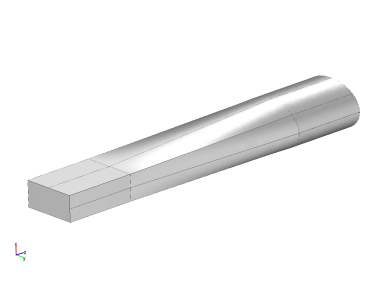

Figure 1: The geometry of the waveguide adapter.

The walls of manufactured waveguides are typically plated with a good conductor such as silver. The model approximates the walls by perfect conductors. This is represented by the boundary condition n × E = 0.

The rectangular port is excited by a transverse electric (TE) wave, which is a wave that has no electric field component in the direction of propagation. This is what an incoming wave would look like after traveling through a straight rectangular waveguide with the same cross section as the rectangular part of the adapter. The excitation frequencies are selected so that the TE10 mode is the only propagating mode through the rectangular waveguide. The cutoff frequencies for the different modes can be achieved analytically from the relation

where m and n are the mode numbers, and c is the speed of light. For the TE10 mode, m = 1 and n = 0. With the dimensions of the rectangular cross section (a = 2.286 cm and b = 1.016 cm), the TE10 mode is the only propagating mode for frequencies between 6.6 GHz and 14.7 GHz.

Although the shape of the TE10 mode is known analytically, this example lets you compute it using a numerical port. This technique is very general, in that it allows the port boundary to have any shape. The solved equation is

Here Hn is the component of the magnetic field perpendicular to the boundary, n the refractive index, β the propagation constant in the direction perpendicular to the boundary, and k0 the free space wave number. The eigenvalues are λ = −jβ.

The same equation is solved separately at the elliptical end of the waveguide. The elliptical port is passive, but the eigenmode is still used in the boundary condition of the 3D propagating wave simulation. The dimensions of the elliptical end of the waveguide are such that the frequency range for the lowest propagating mode overlaps that of the rectangular port.

With the stipulated excitation at the rectangular port and the numerically established mode shapes as boundary conditions, the following equation is solved for the electric field vector E inside the waveguide adapter:

where μr denotes the relative permeability, j the imaginary unit, σ the conductivity, ω the angular frequency, εr the relative permittivity, and ε0 the permittivity of free space. The model uses the following material properties for free space: σ = 0 and μr = εr = 1.

Results

Figure 2 shows a single-mode wave propagating through the waveguide.

Figure 2: The x component of the propagating wave inside the waveguide adapter at the frequency 10 GHz.

Naming the rectangular port Port 1 and the elliptical port Port 2, the S-parameters describing the reflection and transmission of the wave are defined as follows:

Here Ec is the calculated total field. E1 is the analytical field for the port excitation, and E2 is the eigenmode calculated from the boundary mode analysis and normalized with respect to the outgoing power flow. Figure 3 shows the S11 and S21 parameters as functions of the frequency.

Figure 3: The S11 parameter and S21 parameter (in dB) as a function of the frequency. This parameter describes the reflections when the waveguide adapter is excited at the rectangular port and a measure of the part of the wave that is transmitted through the elliptical port when the waveguide adapter is excited at the rectangular port, respectively.

RF_Module/Transmission_Lines_and_Waveguides/waveguide_adapter

Modeling Instructions

From the menu, choose .

New

In the window, click

Model Wizard

In the window, click

In the tree, select > .

Click .

Click

In the tree, select .

Click

Study 1

Step 1: Boundary Mode Analysis

In the toolbar, click

and choose > .

Define the study frequency ahead of performing any frequency-dependent operation such as building mesh. The physics-controlled mesh uses the specified frequency value.

In the window for , locate the section.

In the text field, type 7[GHz].

The exact value of this frequency is not important. What matters is that it should be above the cutoff frequency for the fundamental mode, but below that for the next mode. This setting ensures that the boundary mode analysis finds the fundamental mode.

Add another boundary mode analysis, for the second port.

Step 2: Boundary Mode Analysis 2

In the toolbar, click

and choose > .

In the window for , locate the section.

In the text field, type 2.

In the text field, type 7[GHz].

Finally, add the 3D equation for the propagating wave in the waveguide.

Step 3: Frequency Domain

In the toolbar, click

In the window for , locate the section.

In the text field, type range(6.6[GHz],3.4[GHz]/49,10[GHz]).

Proceed to import the geometry.

Geometry 1

Import 1 (imp1)

In the toolbar, click

In the window for , locate the section.

Click

Browse to the model’s Application Libraries folder and double-click the file waveguide_adapter.mphbin.

Click

Add Material

In the toolbar, click

to open the window.

Go to the window.

In the tree, select > .

Click the button in the window toolbar.

In the toolbar, click

to close the window.

Materials

Air (mat1)

By default, the first material you add applies on all domains so you need not alter any settings.

Electromagnetic Waves, Frequency Domain (emw)

Port 1

In the toolbar, click

and choose .

In the window for , locate the section.

From the list, choose .

For the first port, wave excitation is by default.

Select Boundary 13 only.

The wave enters the adapter through the port with a rectangular cross section.

Port 2

In the toolbar, click

and choose .

In the window for , locate the section.

From the list, choose .

Select Boundary 6 only.

This is the exit port, the one with an elliptical cross section.

Mesh 1

In the window, under click .

In the window for , locate the section.

From the list, choose .

Click

Study 1

Now set up the study to find the boundary modes and use them when computing the field distribution over a range of frequencies.

Step 1: Boundary Mode Analysis

In the window, under click .

In the window for , locate the section.

In the text field, type 50.

This value should be in the vicinity of the value that you expect the fundamental mode to have. If you do not know this in advance, you can experiment with some different values or estimate one from analytical formulas valid for cross sections resembling yours.

From the list, choose .

Step 2: Boundary Mode Analysis 2

In the window, click .

In the window for , locate the section.

In the text field, type 50.

From the list, choose .

In the toolbar, click

Results

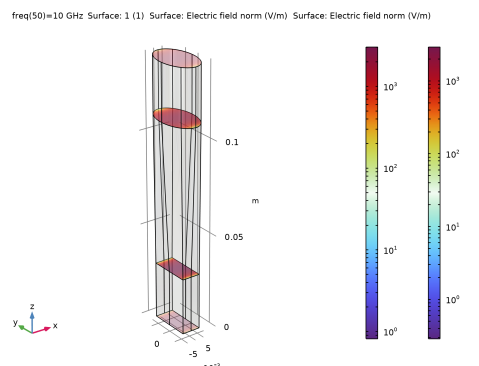

Electric Field (emw)

Click the

button in the toolbar.

The default plot shows the norm of the electric field on slices through the waveguide; you can simplify and improve this plot.

Delete the Multislice plot.

Multislice 1

In the window, expand the node.

Right-click and choose .

Slice 1

Right-click and choose .

In the window for , click in the upper-right corner of the section. From the menu, choose > > > > .

Locate the section. From the list, choose .

Locate the section. In the text field, type 1.

In the toolbar, click

The plot now shows the x component of the electric field at the highest frequency, 10 GHz (compare with Figure 2). If you would like to see the field for other frequencies, you can select them by clicking on the plot group.

Proceed by checking the plot of the S-parameters as functions of the frequency.

S-Parameter (emw)

Select the plot group under in Model Builder. The plot should closely resemble that in Figure 3.

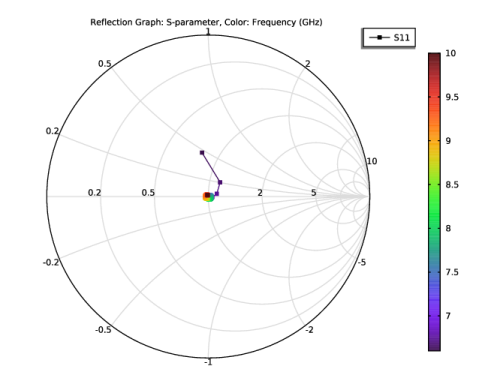

Smith Plot (emw)

In the window, click .

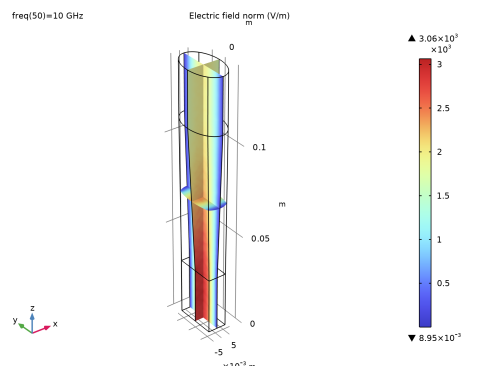

Electric Field, Logarithmic (emw)

In the window, click .

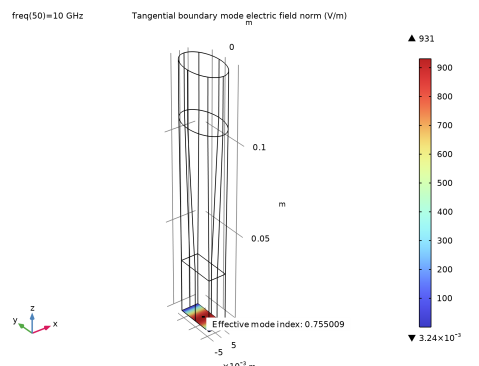

Electric Mode Field, Port 1 (emw)

In the window, click .

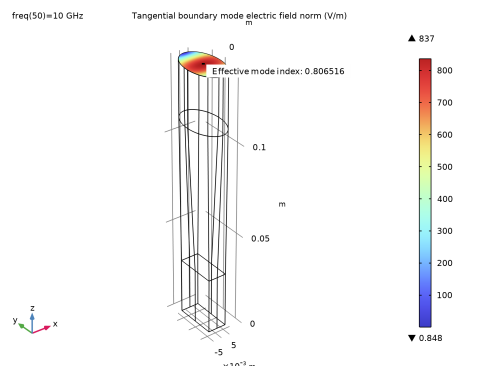

Electric Mode Field, Port 2 (emw)

In the window, click .
