A Low-Pass and Band-Pass Filter Using Lumped Elements

Passive devices can be designed using lumped element features if both the operating frequency of the device and the insertion loss of lumped elements are low. This example simulates two types of lumped element filters. First, a 5-element maximally flat low-pass filter is built to compute frequency responses that show the cutoff at the intended frequency. Second, a band-pass filter transformed from the low-pass filter design is simulated in the same frequency range. Both filter models present S-parameters and electric field distribution by default.

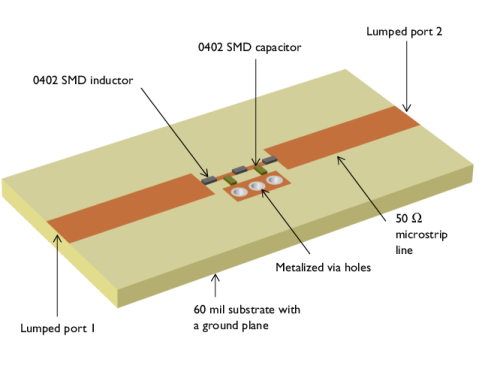

Figure 1: 0402 surface-mount device (SMD) inductors and capacitors are modeled using lumped element features on 2D boundaries. The figure describes only a low-pass filter model.

Model Definition

This example shows a filter design with five SMD devices soldered to a microstrip line that sits on a 60 mil substrate with a ground plane (Figure 1). The performance of each SMD device is assumed to be ideal in the simulated frequency range. All metal parts − the microstrip line, the thin copper ground plane and the metalized via holes − are modeled as perfect electric conductors (PECs). Each end of the microstrip line is configured with a lumped port. One of the lumped ports is the source for the input signal.

The geometry of each SMD device is simplified as a 2D boundary and the electrical performance is modeled using a lumped element. Lumped elements are similar to lumped ports except that they are strictly passive and there are predefined choices for inductances and capacitance.

The dielectric constant of the substrate is εr = 3.38 and the remaining volume in the model is air. The device is assumed to sit in open space, and thus the air domain is truncated using the scattering boundary condition to absorb radiation from the circuit.

Low-Pass Filter

The filter in this example consists of inductors connected in series and capacitors connected in parallel. The capacitors are connected to a small section of microstrip line that is, in turn, connected to the metal vias shorted to the ground plane. The element values − either L or C − of the desired filter are defined by

The calculated values are shown in Table 1.

Table 1: Maximally flat low-pass filter element values, N = 5.
g1	g2	g3	g4	g5	g6
0.618	1.618	2	1.618	0.618	1

These values are determined assuming that the reference impedance is 1 Ω and the cutoff frequency of the filter is 1 Hz. However, for the particular filter in the model, the reference impedance is 50 Ω and the cutoff frequency is 1 GHz. The filter element values, L and C, are scaled using the equations below, where R0 is reference impedance and fc is cutoff frequency of the filter.

The resulting scaled element values are L1 = L3 = 4.9179 nH, L2 = 15.915 nH and C1 = C2 = 5.1503 pF.

Band-Pass Filter

The low-pass filter can be converted to a band-pass filter by transforming series inductors (L) and parallel capacitors (C) to a series LC and a parallel LC circuit, respectively. The value of transformed lumped elements are scaled by impedance and frequency based on the element values for the low pass filter prototype (Table 1).

In a series LC circuit,

In a parallel LC circuit,

where fc is used for the center frequency of the filter and Δ is the fractional bandwidth defined as bandwidth/fc.

Results and Discussion

The norm of the electric field underneath the microstrip lines at 2 GHz is plotted in Figure 2. This frequency is outside the passband of the filter and the plot illustrates that the signal is blocked. In Figure 3, the norm of the field is plotted at 0.3 GHz, which is within the passband of the filter. The plot shows that the wave propagates through the filter.

Figure 2: The norm of the electric field at 2 GHz, which is outside the passband of the filter, shows that the energy from the input port cannot reach the output port.

Figure 3: The norm of the electric field is plotted at 0.3 GHz, which is within the passband of the filter. The SMD filter lets the signal pass from the input port to the output port.

The calculated S-parameters, plotted in Figure 4, show a low-pass filter frequency response with 1 GHz cutoff frequency. A small frequency shift is observed due to the parasitic reactance caused by the metal pads and via holes connecting the SMD devices to the ground plane.

Figure 4: The S-parameters are plotted as a function of frequency to illustrate the filter response. The cutoff frequency of the low-pass filter is observed near 1 GHz.

Figure 5: The norm of the electric field at 2 GHz, which is outside the passband of the filter, shows that the energy from the input port cannot reach the output port.

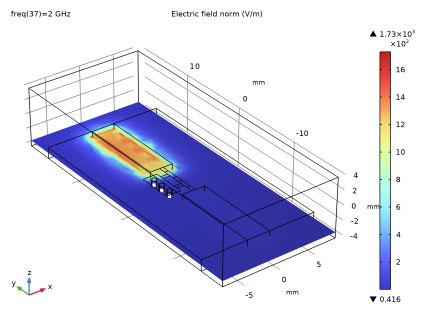

Figure 6: The norm of the electric field is plotted at 1 GHz, which is within the passband of the filter. The SMD filter lets the signal pass from the input port to the output port.

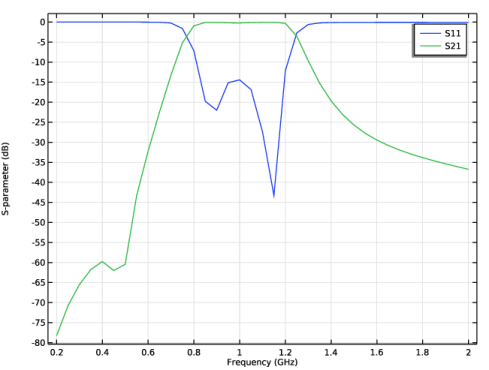

Figure 7: The S-parameter plot illustrates the frequency response of the band-pass filter. The center frequency is observed at 1 GHz.

The S-parameters of the band-pass filter are plotted in Figure 7. Due to the parasitic reactance from the metal pads and via holes, the frequency responses outside the passband are not ideal as those obtained from a circuit theory.

Reference

1. D.M. Pozar, Microwave Engineering, John Wiley & Sons, 1998.

2. R.E. Collin, Foundation of Microwave Engineering, McGraw Hill, 1992.

RF_Module/Filters/lumped_element_filter

Modeling Instructions

From the menu, choose .

New

In the window, click

Model Wizard

In the window, click

In the tree, select > .

Click .

Click

In the tree, select > .

Click

Study 1

Step 1: Frequency Domain

Define the study frequency ahead of performing any frequency-dependent operation such as building mesh. The physics-controlled mesh uses the highest frequency value in the specified range.

In the window, under click .

In the window for , locate the section.

In the text field, type range(0.2[GHz],0.05[GHz],2[GHz]).

Global Definitions

Parameters 1

In the window, under click .

In the window for , locate the section.

In the table, enter the following settings:


Name	Expression	Value	Description
thickness	60[mil]	0.001524 m	Substrate thickness
fc	1[GHz]	1E9 Hz	Cutoff frequency
z0	50[ohm]	50 Ω	Reference impedance
l1	z0*0.618/2/pi/fc	4.9179E-9 H	Inductance l1
c1	1.618/z0/2/pi/fc	5.1503E-12 F	Capacitance c1
l2	z0*2/2/pi/fc	1.5915E-8 H	Inductance l2

Here, mil refers to the unit milliinch.

Geometry 1

In the window, under click .

In the window for , locate the section.

From the list, choose .

Block 1 (blk1)

In the toolbar, click

In the window for , locate the section.

In the text field, type 16.

In the text field, type 37.5.

In the text field, type 8.

Locate the section. From the list, choose .

Click

Click the

button in the toolbar.

Block 2 (blk2)

In the toolbar, click

In the window for , locate the section.

In the text field, type 16.

In the text field, type 30.

In the text field, type thickness.

Locate the section. From the list, choose .

In the text field, type -4+thickness/2.

Block 3 (blk3)

In the toolbar, click

In the window for , locate the section.

In the text field, type 3.2.

In the text field, type 11.9.

In the text field, type thickness.

Locate the section. From the list, choose .

In the text field, type 9.05.

In the text field, type -4+thickness/2.

Mirror 1 (mir1)

In the toolbar, click

and choose .

Select the object only.

In the window for , locate the section.

Select the checkbox.

Locate the section. In the text field, type -1.

In the text field, type 0.

Work Plane 1 (wp1)

In the toolbar, click

In the window for , locate the section.

In the text field, type -4+thickness.

Click

Work Plane 1 (wp1) > Rectangle 1 (r1)

In the toolbar, click

In the window for , locate the section.

In the text field, type 0.5.

In the text field, type 3.6.

Locate the section. From the list, choose .

In the text field, type 1.3.

Click to expand the section. In the table, enter the following settings:


Layer name	Thickness (mm)
Layer 1	1

Select the checkbox.

Work Plane 1 (wp1) > Rectangle 2 (r2)

In the toolbar, click

In the window for , locate the section.

In the text field, type 0.5.

Locate the section. From the list, choose .

In the text field, type -0.75.

In the text field, type 1.3.

Work Plane 1 (wp1) > Mirror 1 (mir1)

In the toolbar, click

and choose .

Click in the window and then press Ctrl+A to select both objects.

In the window for , locate the section.

Select the checkbox.

Locate the section. In the text field, type 0.

In the text field, type 1.

Click

Work Plane 1 (wp1) > Rectangle 3 (r3)

In the toolbar, click

In the window for , locate the section.

In the text field, type -3.25.

In the text field, type -2.3.

Locate the section. In the text field, type 2.

In the text field, type 4.6.

Cylinder 1 (cyl1)

In the window, right-click and choose .

In the window for , locate the section.

In the text field, type 0.4.

In the text field, type thickness.

Locate the section. In the text field, type -2.25.

In the text field, type -1.5.

In the text field, type -4.

Array 1 (arr1)

In the toolbar, click

and choose .

Select the object only.

In the window for , locate the section.

In the text field, type 3.

Locate the section. In the text field, type 1.5.

Click

The finished geometry should look like this.

Set up the physics. Use lumped ports for the S-parameter analysis and lumped elements to model the SMD devices.

Electromagnetic Waves, Frequency Domain (emw)

In the window, under click .

Select Domains 1, 2, 6, and 7 only.

Perfect Electric Conductor 2

In the toolbar, click

and choose .

Select Boundaries 7, 12, 33, 34, 38, 39, 45, and 47 only.

You can do this most easily by copying the text ’7, 12, 33, 34, 38, 39, 45, and 47’, clicking in the selection box, and then pressing Ctrl+V, or by using the dialog.

Lumped Port 1

In the toolbar, click

and choose .

Select Boundary 40 only.

For the first port, wave excitation is by default.

Lumped Port 2

In the toolbar, click

and choose .

Select Boundary 32 only.

Lumped Element 1

In the toolbar, click

and choose .

Select Boundary 48 only.

In the window for , locate the section.

From the list, choose .

In the Lelement text field, type l1.

Lumped Element 2

In the toolbar, click

and choose .

Select Boundary 46 only.

In the window for , locate the section.

From the list, choose .

In the Lelement text field, type l2.

Lumped Element 3

In the toolbar, click

and choose .

Select Boundary 44 only.

In the window for , locate the section.

From the list, choose .

In the Lelement text field, type l1.

Lumped Element 4

In the toolbar, click

and choose .

Select Boundary 43 only.

In the window for , locate the section.

From the list, choose .

In the Celement text field, type c1.

Lumped Element 5

In the toolbar, click

and choose .

Select Boundary 41 only.

In the window for , locate the section.

From the list, choose .

In the Celement text field, type c1.

Scattering Boundary Condition 1

In the toolbar, click

and choose .

Select Boundaries 1, 2, 4, 5, 11, 54, and 55 only.

Add Material

In the toolbar, click

to open the window.

Go to the window.

In the tree, select > .

Click the button in the window toolbar.

In the toolbar, click

to close the window.

Materials

Material 2 (mat2)

In the window, under right-click and choose .

Select Domains 2, 6, and 7 only.

In the window for , locate the section.

In the table, enter the following settings:


Property	Variable	Value	Unit	Property group
Relative permittivity	epsilonr_iso ; epsilonrii = epsilonr_iso, epsilonrij = 0	3.38	1	Basic
Relative permeability	mur_iso ; murii = mur_iso, murij = 0	1	1	Basic
Electric conductivity	sigma_iso ; sigmaii = sigma_iso, sigmaij = 0	0	S/m	Basic

Mesh 1

In the window, under click .

In the window for , locate the section.

From the list, choose .

Click

Definitions

Hide for Physics 1

In the window, expand the > node.

Right-click and choose .

In the window for , locate the section.

From the list, choose .

Select Boundaries 1, 2, and 4 only.

Mesh 1

In the Model Builder window, click .

In the window, under click .

The meshed structure should look like this figure.

Study 1

In the toolbar, click

Results

Multislice 1

Modify the settings to show the plot only on the xy-plane.

In the window, expand the node, then click .

In the window for , locate the section.

Find the subsection. In the text field, type 0.

Find the subsection. From the list, choose .

In the text field, type -4+thickness/2.

In the toolbar, click

This reproduces Figure 2 showing the electric field distribution outside the passband.

Electric Field (emw)

In the window, click .

In the window for , locate the section.

From the list, choose .

In the toolbar, click

Compare the reproduced plot with Figure 3 showing the electric field distribution inside the passband.

S-Parameter (emw)

This shows the frequency response of the low-pass filter. See Figure 4.

Smith Plot (emw)

In the window, click .

Electric Field, Logarithmic (emw)

In the window, click .

Global Definitions

Parameters 1

In the window, under click .

In the window for , locate the section.

In the table, enter the following settings:


Name	Expression	Value	Description
del	500[MHz]/fc	0.5	Fractional bandwidth
l1_inductor	0.618*z0/2/pi/fc/del	9.8358E-9 H	Scaled inductance from l1
l1_capacitor	del/2/pi/fc/0.618/z0	2.5753E-12 F	Scaled capacitance from l1
l2_inductor	2*z0/2/pi/fc/del	3.1831E-8 H	Scaled inductance from l2
l2_capacitor	del/2/pi/fc/2/z0	7.9577E-13 F	Scaled capacitance from l2
c1_inductor	del*z0/2/pi/fc/1.618	2.4591E-9 H	Scaled inductance from c1
c1_capacitor	1.618/2/pi/fc/del/z0	1.0301E-11 F	Scaled capacitance from c1

Electromagnetic Waves, Frequency Domain (emw)

Lumped Element 1

In the window, expand the > > node, then click .

In the window for , locate the section.

From the list, choose .

In the Lelement text field, type l1_inductor.

In the Celement text field, type l1_capacitor.

Lumped Element 2

In the window, click .

In the window for , locate the section.

From the list, choose .

In the Lelement text field, type l2_inductor.

In the Celement text field, type l2_capacitor.

Lumped Element 3

In the window, click .

In the window for , locate the section.

From the list, choose .

In the Lelement text field, type l1_inductor.

In the Celement text field, type l1_capacitor.

Lumped Element 4

In the window, click .

In the window for , locate the section.

From the list, choose .

In the Lelement text field, type c1_inductor.

In the Celement text field, type c1_capacitor.

Lumped Element 5

In the window, click .

In the window for , locate the section.

From the list, choose .

In the Lelement text field, type c1_inductor.

In the Celement text field, type c1_capacitor.

Add Study

In the toolbar, click

to open the window.

Go to the window.

Find the subsection. In the tree, select > .

Click the button in the window toolbar.

In the toolbar, click

to close the window.

Study 2

Step 1: Frequency Domain

In the window for , locate the section.

In the text field, type range(0.2[GHz],0.05[GHz],2[GHz]).

In the toolbar, click

Results

Multislice 1

Modify the settings to show the plot only on the xy-plane.

In the window, expand the node, then click .

In the window for , locate the section.

Find the subsection. In the text field, type 0.

Find the subsection. From the list, choose .

In the text field, type -4+thickness/2.

In the toolbar, click

This reproduces Figure 5 showing the electric field distribution outside the passband.

Electric Field (emw) 1

In the window, click .

In the window for , locate the section.

From the list, choose .

In the toolbar, click

Compare the reproduced plot with Figure 6 showing the electric field distribution inside the passband.

S-Parameter (emw) 1

The frequency response (S-parameters) is shown in Figure 7.

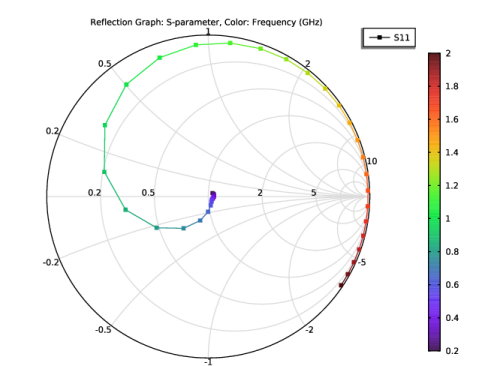

Smith Plot (emw) 1

In the window, click .

Electric Field, Logarithmic (emw) 1

In the window, click .

Analyze the same bandpass filter model with a much finer frequency resolution using based on asymptotic waveform evaluation (AWE). When a device presents a slowly varying frequency response, the AWE method provides a faster solution time when running the simulation on many frequency points. The following example with the Adaptive Frequency Sweep can be computed about twenty times faster than regular Frequency Domain sweeps with a same finer frequency resolution.

Electromagnetic Waves, Frequency Domain (emw)

Lumped Port 1

In the window, under > click .

In the window for , locate the section.

Click

In the dialog, type Lumped port 1 in the text field.

Click .

Lumped Port 2

In the window, click .

In the window for , locate the section.

Click

In the dialog, type Lumped port 2 in the text field.

Click .

Add Study

In the toolbar, click

to open the window.

Go to the window.

Find the subsection. In the tree, select > .

Click the button in the window toolbar.

In the toolbar, click

to close the window.

Study 3

Step 1: Adaptive Frequency Sweep

In the window for , locate the section.

In the text field, type range(0.2[GHz],0.001[GHz],2[GHz]).

Use a 50 times finer frequency resolution.

A slowly varying scalar value curve works well for AWE expressions. When is set to in the study settings, abs(comp1.emw.S21) is used automatically for two-port devices.

Because such a fine frequency step generates a memory-intensive solution, the model file size will increase tremendously when it is saved. When only the frequency response of port related variables are of interest, it is not necessary to store all of the field solutions. By selecting the checkbox in the section, we can control the part of the model on which the computed solution is saved. We only add the selection containing these boundaries where the port variables are calculated. The lumped port size is typically very small compared to the entire modeling domain, and the saved file size with the fine frequency step is more or less that of the regular discrete frequency sweep model when only the solutions on the port boundaries are stored.

Click to expand the section. In the table, enter the following settings:
