Conical antennas are useful for many applications due to their broadband characteristics and relative simplicity. This example includes an analysis of the antenna impedance and the radiation pattern as functions of the frequency for a monoconical antenna with a finite ground plane and a 50 Ω coaxial feed. The rotational symmetry makes it possible to model this in axially symmetric 2D. When modeling in 2D, you can use a dense mesh, giving an excellent accuracy for a wide range of frequencies.

Model Definition

The antenna geometry consists of a 0.2 m tall metallic cone with a top angle of 90 degrees on a finite ground plane of a 0.282 m radius. The coaxial feed has a central conductor of 1.5 mm radius and an outer conductor (screen) of 4.916 mm radius separated by a Teflon dielectric of relative permittivity of 2.07. The central conductor of the coaxial cable is connected to the cone, and the screen is connected to the ground plane.

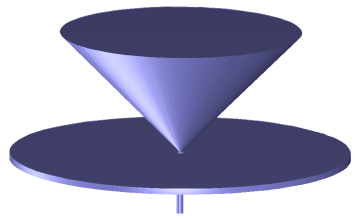

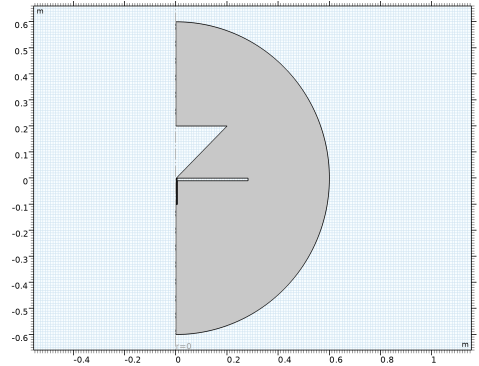

Figure 1: The geometry of the antenna. The central conductor of the coaxial cable is connected to the metallic cone, and the cable screen is connected to the finite ground plane.

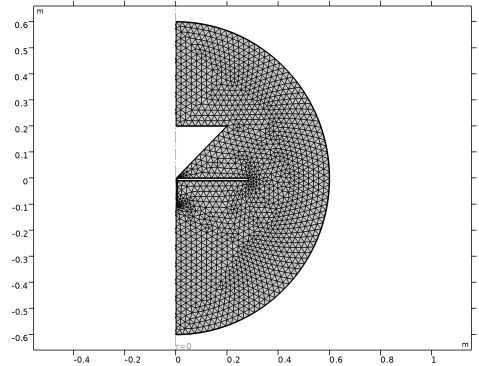

The model takes advantage of the rotational symmetry of the problem, which allows modeling in 2D using cylindrical coordinates. You can then use a very fine mesh to achieve an excellent accuracy.

Domain Equations

An electromagnetic wave propagating in a coaxial cable is characterized by transverse electromagnetic (TEM) fields. Assuming time-harmonic fields with complex amplitudes containing the phase information, you have:

where z is the direction of propagation and r, φ, and z are cylindrical coordinates centered on axis of the coaxial cable. Z is the wave impedance in the dielectric of the cable, and C is an arbitrary constant. The angular frequency is denoted by ω. The propagation constant, k, relates to the wavelength in the medium λ as

In the air, the electric field also has a finite axial component whereas the magnetic field is purely azimuthal.

Boundary Conditions

The boundary conditions for the metallic surfaces are:

At the feed point, a matched coaxial port boundary condition is used to make the boundary transparent to the wave. The antenna is radiating into free space, but you can only discretize a finite region. Therefore, truncate the geometry some distance from the antenna using a scattering boundary condition allowing for outgoing spherical waves to pass with very little reflections. A symmetry boundary condition is automatically applied on boundaries at r = 0.

Results and Discussion

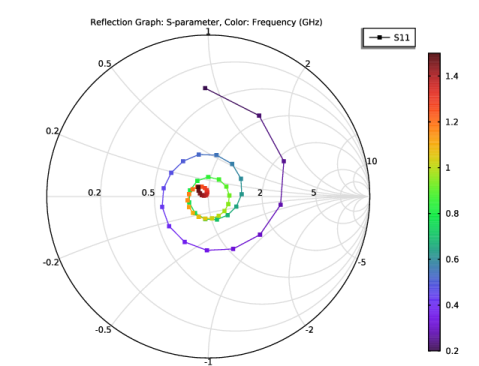

Figure 2 shows the antenna impedance as a function of frequency. Ideally, the antenna impedance should be matched to the characteristic impedance of the feed, 50 Ω, to obtain maximum transmission into free space. This is quite well fulfilled in the high-frequency range.

Figure 2: The antenna impedance in Ω as a function of frequency from 200 MHz to 1.5 GHz. The solid line shows the radiation resistance and the dotted line represents the reactance.

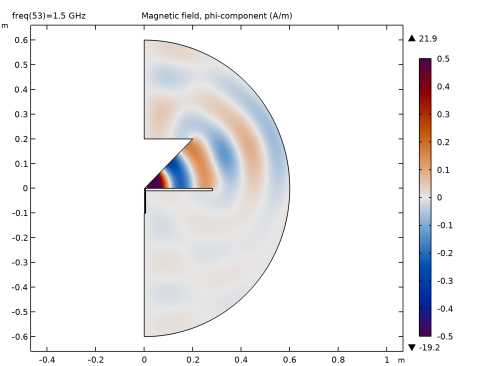

Figure 3 shows the antenna radiation pattern in the near field for three different frequencies. The effect of the finite diameter of the ground plane is to lift the main lobe from the horizontal plane. For an infinite ground plane or in the high-frequency limit, the radiation pattern is symmetric around zero elevation. This is easy to understand, as an infinite ground plane can be replaced by a mirror image of the monocone below the plane. Such a biconical antenna is symmetric around zero elevation and has its main lobe in the horizontal direction. The decreased lobe lifting at higher frequencies is just about visible in Figure 3.

Figure 4 shows the antenna radiation pattern in the far field for the same frequencies as the radiation pattern at the boundary in Figure 3.

Figure 3: Polar plot of the antenna radiation pattern in the near field versus the elevation angle for 200 MHz, 800 MHz, and 1.5 GHz. The scale is logarithmic.

Figure 4: Polar plot of the antenna radiation pattern for the far field versus the elevation angle for 200 MHz, 800 MHz, and 1.5 GHz. This plot is normalized differently but has a shape resembling the near field.

As the frequency increases the antenna impedance gets closer to 50 Ω, which means that a voltage generator connected to the input of the antenna should have an output impedance of 50 Ω.
