Eigenmodes of a Room
Introduction
Resonance can at times be a problem in everyday life. The low bass notes from the music system or home theater in the living room can shake the windows and make the floor vibrate. This happens only for certain frequencies — the eigenfrequencies of the room. In addition to impairing the listening experience, resonances can greatly increase the transmission of sound to the neighboring rooms.
It is only in the low-frequency range that the eigenfrequencies are well separated. In the mid- and high-frequency ranges, the eigenfrequencies are packed so closely, with less than a halftone between them, that the individual resonances are insignificant for music and other natural sounds. Nevertheless, the music experience is affected by the acoustics of the room.
When designing a listening room, it is extremely important to take the resonances into account. For a clear and neutral sound, the eigenfrequencies should be controlled and evenly spaced. For the home theater or music system owner, who cannot change the shape of the living room, another question is more relevant: where should the speakers be located for the best sound?
Model Definition
For example, let us consider a room with the dimensions 5 m by 4 m by 2.6 m equipped with a flat-screen TV, a sideboard, two speakers, and a couch with a coffee table. To illustrate the effects on the sound field, a few resonance frequencies in the vicinity of 90 Hz are computed together with the corresponding eigenmodes. The eigenmode shows the sound intensity pattern for its associated eigenfrequency. From the characteristics of the eigenmodes, we can draw some conclusions as to where the speakers should be placed.
Domain Equations
Sound propagating in free air is described by the wave equation:
where p is the pressure, and c is the speed of sound. If the air is brought into motion by a harmonically oscillating source, for example, a loudspeaker, only one frequency f exists in the room. For that reason it makes sense to look for a time-harmonic solution of the form
The wave equation then simplifies to the Helmholtz equation for p, the amplitude of the acoustic disturbances:
Boundary Conditions
This model assumes that all boundaries — walls, floor, ceiling, and furniture — are perfectly rigid (sound hard boundaries). This means that it returns no information of the damping properties of the room, but the distribution of the pressure should still be reasonably correct.
Analytic Comparison
It is possible to solve the simpler case of an empty rectangular room analytically. Each eigenfrequency corresponds to an integer triplet (i, l, m):
The eigenmodes can be divided into three distinct classes:
•
Eigenfrequencies with only one index different from zero give rise to axial modes, that is, plane standing waves between two opposite walls.
•
If one index is zero, the mode is tangential.
•
If all indices are different from zero, the mode is oblique.
Theoretical resonance frequencies below 100 Hz for the room at hand without furniture are found in the following table. All modes have local maxima in the corners of an empty room so speakers in the corners excite all eigenfrequencies.
Mode index
 Frequency
Mode index
Frequency
0,0,0
0
0,1,1
78.7
1,0,0
34.3
2,1,0
80.9
0,1,0
42.9
0,2,0
85.8
1,1,0
54.9
1,1,1
85.8
0,0,1
66.0
1,2,0
92.4
2,0,0
68.6
2,0,1
95.2
1,0,1
74.3
3,0,0
103
Results and Discussion
The relevant quantity when it comes to placing the loudspeakers is the amplitude of the standing pressure wave. A sound source excites an eigenmode the most if it is placed in one of the pressure antinodes for the mode. Conversely, with the source in a pressure node, the eigenmode remains silent. The loudspeakers should therefore be placed away from both the pressure nodes and antinodes to avoid canceling or boosting any frequency.
This simulation predicts eigenmodes that strongly resemble those of the corresponding empty room. However, the higher the frequency, the larger the influence of the furniture. For instance, some of the higher-frequency eigenmodes are located behind the couch.
In the strictest sense, the results of this simulation only apply to a room with perfectly rigid walls and nonabsorbing furniture. The prediction that speakers placed in the corners of the room excite all eigenmodes and give rise to resonances, however, holds for real-life rooms.

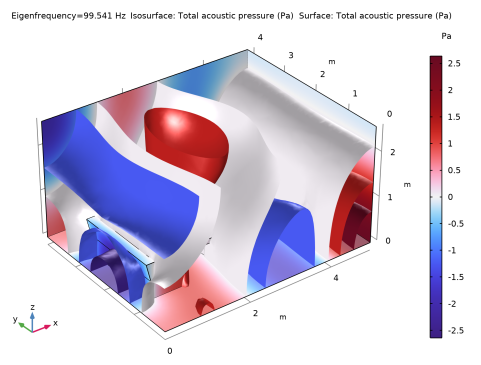

Figure 1: The sound pressure distribution for the eigenfrequency at 99.5 Hz. Note that this mode does not correspond to any of the analytical modes listed above.
Notes About the COMSOL Implementation
When simulating acoustics, or in general any wave phenomenon, it is important to resolve the expected wavelength properly. As a rule of thumb, 6 second-order elements per wavelength is a reasonable trade-off between computational effort and accuracy. For this example, where wavelengths of interest are below 100 Hz, this implies a maximum element size of
Therefore, an element size of 57 cm or less, corresponding to at least five elements between floor and ceiling, provides sufficient accuracy. The default mesh for this geometry meets the requirement. However, in general it is advisable to specify a maximum element size explicitly in the mesh settings.
Application Library path: COMSOL_Multiphysics/Acoustics/eigenmodes_of_room
Modeling Instructions
From the File menu, choose New.
New
In the New window, click  Model Wizard.
Model Wizard
1
In the Model Wizard window, click  3D.
2
In the Select Physics tree, select Acoustics > Pressure Acoustics > Pressure Acoustics, Frequency Domain (acpr).
3
Click Add.
4
Click  Study.
5
In the Select Study tree, select General Studies > Eigenfrequency.
6
Click  Done.
Geometry 1
The geometry in this model can be created within COMSOL Multiphysics. Here it is imported for convenience.
Import 1 (imp1)
1
In the Geometry toolbar, click  Import.
2
In the Settings window for Import, locate the Source section.
3
Click  Browse.
4
Browse to the model’s Application Libraries folder and double-click the file eigenmodes_of_room.mphbin.
5
Click  Import.
6
Click the  Wireframe Rendering button in the Graphics toolbar.
Materials
Air
1
In the Model Builder window, under Component 1 (comp1) right-click Materials and choose Blank Material.
2
In the Settings window for Material, type Air in the Label text field.
3
Select Domain 1 only.
4
Locate the Material Contents section. In the table, enter the following settings:
Property
Variable
Value
Unit
Property group
Density
rho
1.25
kg/m³
Basic
Speed of sound
c
343
m/s
Basic
Pressure Acoustics, Frequency Domain (acpr)
The boundary conditions are all Sound Hard Boundary (Wall) by default.
Mesh 1
In this model, the mesh is set up manually. Proceed by directly adding the desired mesh component.
Free Tetrahedral 1
In the Mesh toolbar, click  Free Tetrahedral.
Study 1
Step 1: Eigenfrequency
1
In the Model Builder window, under Study 1 click Step 1: Eigenfrequency.
2
In the Settings window for Eigenfrequency, locate the Study Settings section.
3
In the Search for eigenfrequencies around shift text field, type 90.
This setting will get you at least six solutions with eigenfrequencies in the vicinity of 90 Hz. For this model you typically get additional eigensolutions that the eigenvalue solver finds.
4
In the Study toolbar, click  Compute.
Results
Acoustic Pressure (acpr)
The first default plot shows the pressure distribution on the exterior boundaries of the geometry. To see what goes on inside the room, you need to suppress some of the boundaries. This is most conveniently done by first selecting all boundaries and then removing a few of them (number 1, 2, and 4) from the selection.
Study 1/Solution 1 (sol1)
In the Model Builder window, expand the Results > Datasets node, then click Study 1/Solution 1 (sol1).
Selection
1
In the Results toolbar, click  Attributes and choose Selection.
2
In the Settings window for Selection, locate the Geometric Entity Selection section.
3
From the Geometric entity level list, choose Boundary.
4
From the Selection list, choose All boundaries.
5
Select Boundaries 3 and 5–79 only.
Acoustic Pressure (acpr)
1
Click the  Zoom Extents button in the Graphics toolbar.
2
In the Model Builder window, under Results click Acoustic Pressure (acpr).

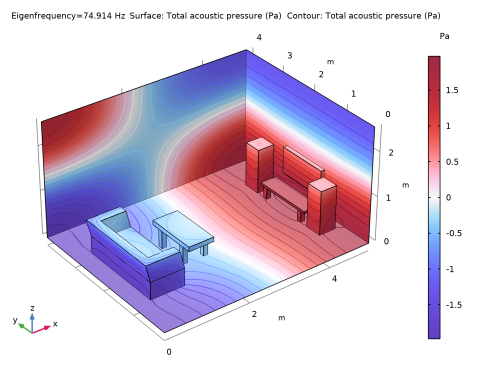

The first plot group now shows the distribution of the real value of the pressure for the lowest one of the eigenfrequencies, 74.9 Hz. This appears to be the (1,0,1) mode.
Acoustic Pressure, Isosurfaces (acpr)

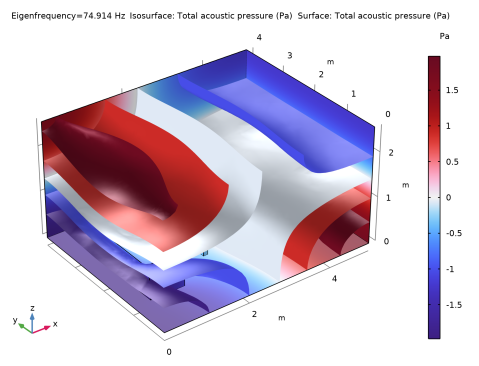

The third default plot shows the isosurfaces for the same frequency.
Isosurface 1
1
In the Model Builder window, expand the Acoustic Pressure, Isosurfaces (acpr) node, then click Isosurface 1.
2
In the Settings window for Isosurface, locate the Levels section.
3
In the Total levels text field, type 5.
4
In the Acoustic Pressure, Isosurfaces (acpr) toolbar, click  Plot.
Surface 1
1
In the Model Builder window, right-click Acoustic Pressure, Isosurfaces (acpr) and choose Surface.
2
In the Settings window for Surface, locate the Coloring and Style section.
3
From the Color table list, choose Wave.
4
In the Acoustic Pressure, Isosurfaces (acpr) toolbar, click  Plot.
Isosurface 1
1
In the Model Builder window, click Isosurface 1.
2
In the Settings window for Isosurface, locate the Coloring and Style section.
3
Clear the Color legend checkbox.

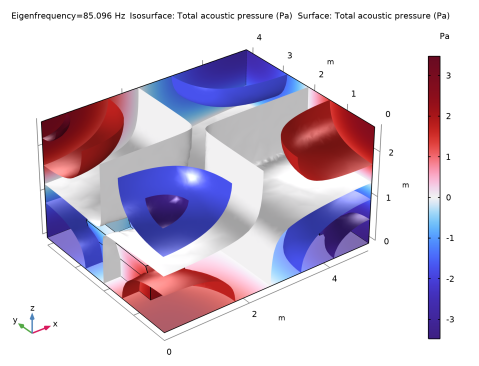

Modify the third default plot to show the isosurfaces and pressure distribution at 85 Hz; this is the (1,1,1) mode.
Acoustic Pressure, Isosurfaces (acpr)
1
In the Model Builder window, click Acoustic Pressure, Isosurfaces (acpr).
2
In the Settings window for 3D Plot Group, locate the Data section.
3
From the Eigenfrequency (Hz) list, choose 85.096.
Finally, reproduce Figure 1.
4
From the Eigenfrequency (Hz) list, choose 99.541.
5
In the Acoustic Pressure, Isosurfaces (acpr) toolbar, click  Plot.
This mode looks a little different from what you would find in an empty room. It is focused behind the couch.
Result Templates
1
In the Results toolbar, click  Result Templates to open the Result Templates window.
2
Go to the Result Templates window.
3
In the tree, select Study 1/Solution 1 (sol1) > Pressure Acoustics, Frequency Domain > Sound Pressure Level (acpr).
4
Click the Add Result Template button in the window toolbar.
5
In the Results toolbar, click  Result Templates to close the Result Templates window.
Results
Surface 1
1
In the Model Builder window, expand the Sound Pressure Level (acpr) 1 node, then click Surface 1.
2
In the Settings window for Surface, locate the Expression section.
3
Select the Description checkbox. In the associated text field, type Total SPL.
4
In the Sound Pressure Level (acpr) 1 toolbar, click  Plot.
