Modeling Vibration and Noise in a Gearbox: CMS Version

A gearbox is used for transferring power from the engine to the wheels. Predicting the vibration and noise radiation from a dynamic system like a gearbox gives designers an insight early in the design process.

When operated, a gearbox can radiate noise in the surrounding because of two reasons. The first and foremost one is the transmission of undesired lateral and axial forces on the bearings and housing while transmitting power from one shaft to another. The second reason is the flexibility in the different parts of the gearbox such as the gear mesh, bearings, and housing.

This example illustrates the modeling of vibration and noise in a 5-speed synchromesh gearbox of a manual transmission vehicle. A transient multibody analysis is performed to compute the gearbox vibration for the specified engine speed and external load. The normal acceleration of the gearbox housing is converted to the frequency domain and used as a source of noise. An acoustics analysis is then performed in order to compute the sound pressure levels in the near, far, and exterior fields.

This example is essentially the same as Modeling Vibration and Noise in a Gearbox, but with the flexible gearbox housing reduced to a computationally efficient reduced-order model (ROM) using the Component Mode Synthesis (CMS) technique.

Model Definition

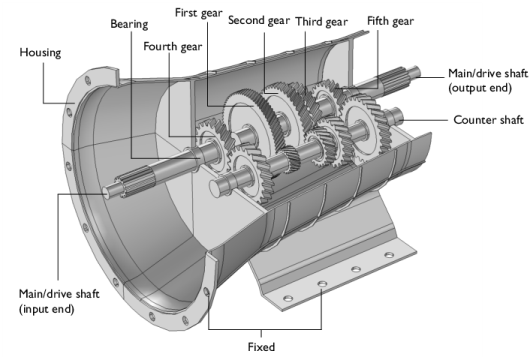

Figure 1: The modeled geometry of a 5-speed synchromesh gearbox of a manual transmission vehicle.

The geometry of a synchromesh gearbox is shown in Figure 1. Only those parts of the gearbox which are relevant from a physics point of view are considered for the analysis.

The gearbox has a varying gear mesh stiffness which causes vibrations. These vibrations are transmitted to the gearbox housing, and the vibrating housing further transmits the energy to the surrounding fluid, resulting in radiation of acoustic waves. In order to study this phenomena numerically, the following analyses are performed:

•

Multibody Analysis. The first step is to perform multibody analysis of a gearbox in order to compute the dynamics of the gears and the housing vibrations. The multibody analysis is performed at the specified engine speed and output torque in the time domain.

•

Acoustics Analysis. As a next step, a spherical domain enclosing the gearbox housing is created in order to perform an acoustics analysis and compute the sound pressure levels outside the gearbox. The normal acceleration computed on the housing in the multibody analysis is used as a noise source for the acoustic analysis.

Additional information regarding the gear arrangements, loads, constraints, connections, boundary conditions for multibody and acoustics analyses can be found in the documentation for Modeling Vibration and Noise in a Gearbox.

This example focuses on the reduction of the flexible housing using the CMS technique, the details of which are discussed in the following.

Component mode synthesis (CMS)

The CMS technique reduces flexible components to computationally efficient ROMs using a number of constraint modes and eigenmodes for each individual component.

In COMSOL, the CMS technique is implemented within the node of the Multibody Dynamics interface. The steps needed to set up a CMS model are described below.

Component Definition

In the node, all flexible components which are supposed to be reduced can be selected together. By default, individual components are detected automatically using the geometric connectivity information. In this example, there is only one flexible component, the gearbox housing.

The node allows only elastic domains and it is not possible to, for example, select rigid domains. Hence, in this model, it is possible to select all domains of the geometry, and automatically only elastic domains will be applicable.

Connection Boundaries

The next step is to define a set of connection boundaries on each component using nodes. In a typical multibody dynamics model, such nodes are present in the model. Otherwise, it is possible to add more nodes as needed.

Constraint Modes

The number of constraint modes for each component is automatically computed using the number of connection boundaries, that is, the number of attachments. For this 3D example, each attachment sets up six constraint modes: three translations and three rotations. Given that the housing has four attachments, a total of 24 constraint modes are computed.

Eigenmodes

A number of eigenmodes are required for the reduction of dynamic problems. This is a user input, and the number of eigenmodes has a direct effect on the accuracy and performance, hence, it has to be chosen wisely. Ideally, the eigenmodes used to approximate the solution should cover the frequency range of the particular dynamic problem. For this example, the first 50 eigenmodes are considered.

Configure CMS Study

The next step is to configure a CMS study with , , , and study steps. This is done by clicking the button in the node. If changes are made in the model after configuring the study, it is advisable to reconfigure the CMS study.

Generating Reduced Components

When computing the CMS study, ROMs corresponding to each flexible component are generated. These appear as nodes under the node in the branch.

Using Reduced Components

The next step is to use these generated reduced components in any existing or new study. These reduced components are, by default, linked to the node and are automatically solved, or not solved, based on whether this node is enabled or disabled in a particular study step. Hence, in general, there is no extra step needed in order to use reduced components.

Field Reconstruction

While working with reduced components, the states of the ROMs are dependent variables. Since these are global degrees of freedom, a reconstruction of the displacement field is required in order to evaluate or plot any field variable. This is done by default within the node, which makes it possible to plot or evaluate any field variable in postprocessing, including stresses and strains. Also, such reconstructed field variables can seamlessly be used for any multiphysics coupling, for example, transferring the normal acceleration of the elastic housing to the acoustics analysis in order to predict the generation of noise.

Results and Discussion

The multibody dynamics analysis of the gearbox is performed in the time domain for one revolution of the main shaft. The von Mises stress distribution in the housing at a particular instant is shown in Figure 2. The speed of different gears can also be seen in the figure.

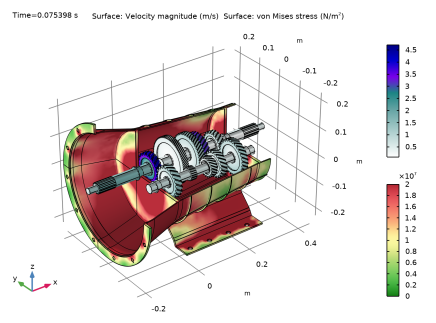

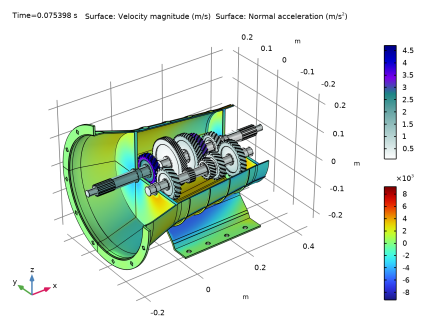

Figure 2: Distribution of von Mises stress in the housing at t = 0.0754 s. The speed of different gears is also shown.

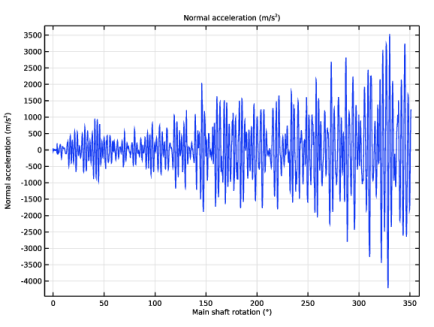

While the gearbox is in operation, it starts vibrating under the influence of various forces. The normal acceleration of the housing, a measure of the noise radiation, is shown in Figure 3 for a particular instance in time. In order to understand its variation in time, Figure 4 show the time history for a point at the top of the gearbox. In this figure, the normal acceleration is plotted as a function of the main shaft rotation.

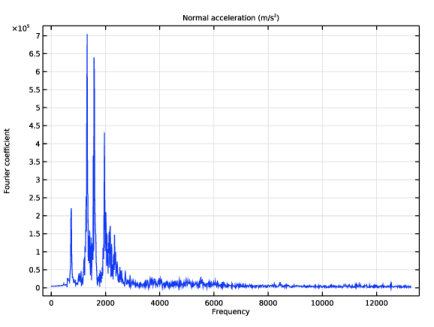

In order to get a better understanding about the frequency content, we can transform these results to the frequency domain by using the FFT solver; the results of this operation are shown in Figure 5. It is clear from the plot that the normal acceleration of the housing definitely contains more than one frequency. The frequency band in which the housing vibration is dominant is 1000 Hz to 3000 Hz.

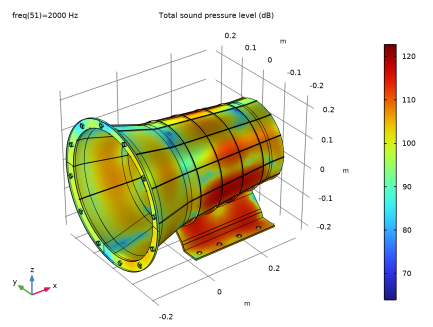

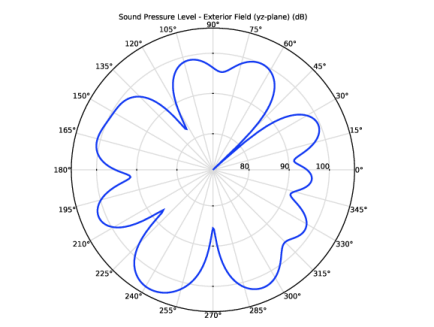

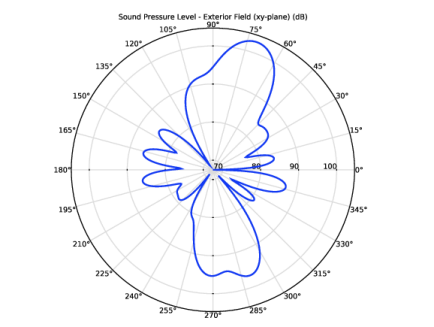

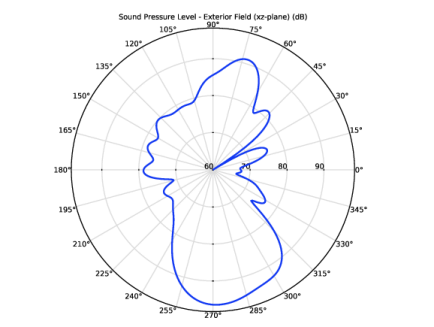

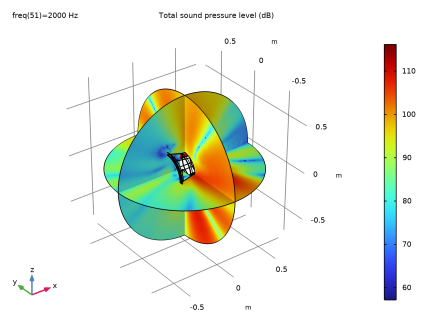

The sound pressure level in the near field as well as on the surface of the gearbox housing is shown in Figure 6 and Figure 7, respectively. The sound pressure level at the far field in different planes can be seen in Figure 8, Figure 9, and Figure 10. These far-fields plots of the sound pressure level give a clear idea about the directivity of noise radiation at a particular frequency.
