COMSOL 6.4 - Fatigue Failure of an Eyeglass Frame

In the search for weight reduction, the cross section of an eyeglass frame is continuously reduced. The thin section over the nose transfers the entire load between the two halves. This example predicts the fatigue life using the combined Basquin and Coffin–Manson model when eyeglasses are subjected to bending.

Model Definition

The frame of the eyeglasses is made of the MONEL alloy 400. The eyeglass lenses are made of a CR-39 material that is lighter in weight than glass. The risk of fatigue in the lenses is avoided by using a coating that holds together any shards in case of fracture. Therefore only the fatigue life of the frame is predicted.

The frame of the eyeglasses is very thin, 1 mm, and has a shape according to Figure 1.

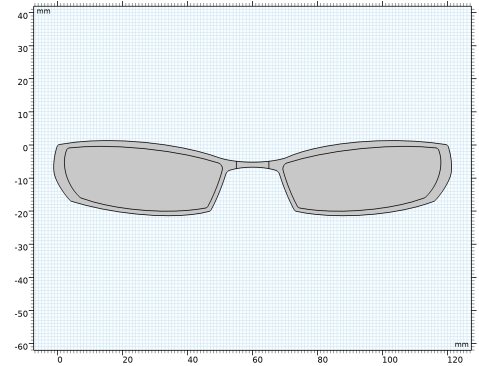

Figure 1: Shape of the eyeglasses.

Young’s modulus of the MONEL alloy 400 is taken from the COMSOL Material Library and the Poisson’s ratio is 0.32. For the CR-39 material, the Young’s modulus is 2.1 GPa and the Poisson’s ratio is 0.4.

Fatigue data for the MONEL alloy 400 has been obtained in rotating bending tests, and fitted to the combined Basquin and Coffin–Manson relation according to where the strain amplitude, εa, is expressed as

where εa is the strain amplitude, E is the Young’s modulus, N represents the number of cycles to failure, and σf’, εf’, b, and c are fatigue material parameters.

Bending of the eyeglasses is simulated by fixing one side of the eyeglasses and applying an alternating vertical 4 N force on the other side of the eyeglasses.

Results and Discussion

The stress distribution in the eyeglasses at the peak load is shown in Figure 2.

Figure 2: Equivalent stress in eyeglasses.

Bending of the eyeglasses causes high stresses on both sides of the thin central part. Since the equivalent stress does not discriminate between tension and compression the same stress levels are encountered on both sides. The resulting stress contours are similar if the bending is reversed when the right part of the glasses is pulled down instead.

Since the fatigue data is obtained in a rotating bending test, the stresses and strains alternate between tension and compression during one test cycle. This is exactly the same structural behavior as in one load cycle of the eyeglasses and therefore the fatigue curve is directly applicable to the resulting principal strains. The highest and smallest principal strains at peak loads are shown in Figure 3.

Figure 3: Principal strains in the eyeglasses. Above: first principal strain when pulling upward. Below: third principal strain when pulling downward.

When pulling up, the lower side of the thin central section experiences peak tensile strains. The peak compressive strains are experienced in the same point when pulling the eyeglasses down. On the upper side of the thin central section over the nose, an opposite situation is encountered, with peak compression when pulling up and peak tension when pulling down. The difference in strain during both load events controls the fatigue life that is predicted in Figure 4. The estimated life is approximately 100,000 cycles.

Figure 4: Fatigue life computed by the combined Basquin and Coffin–Manson relation.

Fatigue_Module/Strain_Life/eyeglass_frame_fatigue

Modeling Instructions

From the menu, choose .

New

In the window, click

Model Wizard

In the window, click

In the tree, select > .

Click .

Click

In the tree, select > .

Click

Geometry 1

In the window, under click .

In the window for , locate the section.

From the list, choose .

Import 1 (imp1)

In the toolbar, click

In the window for , locate the section.

Click

Browse to the model’s Application Libraries folder and double-click the file eyeglass_frame_fatigue.mphbin.

Click

The thin central part of the eyeglasses transfers the entire load between the two halves. Make a rectangle in the center to create a domain for fine structured mesh.

Rectangle 1 (r1)

In the toolbar, click

In the window for , locate the section.

In the text field, type 10.

In the text field, type 4.

Locate the section. In the text field, type 55.

In the text field, type -8.

Intersection 1 (int1)

In the toolbar, click

and choose .

Click in the window and then press Ctrl+A to select both objects.

In the window for , locate the section.

Select the checkbox.

Delete Entities 1 (del1)

In the window, right-click and choose .

In the window for , locate the section.

From the list, choose .

On the object , select Domain 1 only.

Click

Add Material

In the toolbar, click

to open the window.

Go to the window.

In the text field, type monel 400.

Click .

In the tree, select > > > > .

Select Domains 1–3 only.

Click the button in the window toolbar.

In the toolbar, click

to close the window.

Materials

Monel 400 [solid,annealed] (mat1)

In the window for , locate the section.

In the table, enter the following settings:


Property	Variable	Value	Unit	Property group
Poisson’s ratio	nu	0.32	kg/m³	Basic

CR-39

In the window, right-click and choose .

In the window for , type CR-39 in the text field.

Select Domains 4 and 5 only.

Locate the section. In the table, enter the following settings:


Property	Variable	Value	Unit	Property group
Young’s modulus	E	2.1[GPa]	Pa	Young’s modulus and Poisson’s ratio
Poisson’s ratio	nu	0.4	1	Young’s modulus and Poisson’s ratio
Density	rho	1.3[g/cm^3]	kg/m³	Basic

Solid Mechanics (solid)

In the window, under click .

In the window for , locate the section.

In the d text field, type 0.001.

Fixed Constraint 1

In the toolbar, click

and choose .

Select Boundary 3 only.

Boundary Load 1

In the toolbar, click

and choose .

Select Boundary 42 only.

In the window for , locate the section.

From the list, choose .

Specify the Ftot vector as


0	x
1	y

In the toolbar, click

and choose .

Mesh 1

Mapped 1

In the toolbar, click

In the window for , locate the section.

From the list, choose .

Select Domain 2 only.

Distribution 1

Right-click and choose .

Select Boundary 1 only.

In the window for , locate the section.

In the text field, type 15.

Distribution 2

In the window, right-click and choose .

Select Boundary 22 only.

In the window for , locate the section.

In the text field, type 20.

Free Triangular 1

In the toolbar, click

In the window, right-click and choose .

Study 1

Step 1: Stationary

In the window, under click .

In the window for , click to expand the section.

Select the checkbox.

Click four times.

In the table, enter the following settings:


Load case	lg1	Weight
Load case 1	√	0
Load case 2	√	4
Load case 3	√	-4
Load case 4	√	0

In the toolbar, click

Results

Stress (solid)

In the window for , locate the section.

From the list, choose .

Surface 1

In the window, expand the node, then click .

In the window for , locate the section.

From the list, choose .

Deformation

In the window, expand the node, then click .

In the window for , locate the section.

Select the checkbox. In the associated text field, type 1.

In the toolbar, click

Stress (solid)

The equivalent stress does not discriminate between tension and compression. Evaluate how strains change at peak loads.

Principal strain (solid)

In the window, right-click and choose .

In the window for , type Principal strain (solid) in the text field.

Locate the section. Clear the checkbox.

Locate the section. From the list, choose .

Surface 1

In the window, expand the node, then click .

In the window for , locate the section.

From the list, choose .

Locate the section. In the text field, type solid.ep1.

Display both the largest principal strain and the smallest principal strain in the same figure.

Deformation

In the window, expand the node, then click .

In the window for , locate the section.

In the text field, type v+0.020.

Surface 2

In the window, under > right-click and choose .

In the window for , locate the section.

From the list, choose .

Locate the section. In the text field, type solid.ep3.

Deformation

In the window, expand the node, then click .

In the window for , locate the section.

In the text field, type v-0.020.

In the toolbar, click

Add Physics

In the toolbar, click

to open the window.

Go to the window.

In the tree, select > .

Find the subsection. In the table, clear the checkbox for .

Click the button in the window toolbar.

In the toolbar, click

to close the window.

Fatigue (ftg)

Strain-Life 1

In the toolbar, click

and choose .

Select Domains 1–3 only.

In the window for , locate the section.

From the list, choose .

Locate the section. From the list, choose .

Locate the section. In the Ncut text field, type 5.75e6.

Materials

Monel 400 [solid,annealed] (mat1)

In the window, under > click .

In the window for , locate the section.

In the table, enter the following settings:


Property	Variable	Value	Unit	Property group
Fatigue strength coefficient	sigmaf_Basquin	970[MPa]	Pa	Basquin
Fatigue strength exponent	b_Basquin	-0.077	1	Basquin
Fatigue ductility coefficient	epsilonf_CM	0.738	1	Coffin-Manson
Fatigue ductility exponent	c_CM	-0.54	1	Coffin-Manson
