Simulation of a Free Burning Argon Arc
Introduction
Electric arcs have nowadays a large range of industrial applications including cutting, welding, spraying, waste destruction, and surface treatment. Arc discharges are assumed to be under partial to complete local thermodynamic equilibrium (LTE) conditions. Under LTE, the plasma can be considered a conductive fluid mixture and therefore be modeled using the magnetohydrodynamics (MHD) equations. This model shows how to use the Arc Discharge interface to simulate the discharge generated in a DC arc.
Model Definition
This model is based on the work presented in Ref. 1, where the authors develop a complex model that includes the description of the weld pool under the action of a pulsed arc. In this work, only the plasma and the transfer of heat and currents in the metals are simulated, neglecting the weld pool, and a DC excitation is used. These simplifications make it possible to set up a fast-solving model that can be used to understand basic physical effects and provide initial conditions for a time-dependent model.
The model is solved using a stationary study. A current of 100 A is set at the cathode and the bottom plate is grounded. In the 5 mm gap between the electrodes, an argon plasma arc that heats the metal electrodes and the surrounding gas is created. A shielding flow is added along the cathode.
The temperature-dependent physical properties of argon are loaded from the material library under Equilibrium Discharge. The temperature range of the physical properties span from 500 K to 25,000 K. A minimum electric conductivity of 1 S/m is used for numerical stability reasons. Another important aspect to keep in mind is that the model used is not valid to describe the plasma sheath region since in this region there is charge separation and deviations from equilibrium. From a practical point of view, having a fine resolution in the plasma–electrode region causes numerical instabilities (and does not bring a better description of the physics). To make the model more stable, use a mesh that is coarse enough so that the plasma sheath is averaged out.
In this model, the initial conditions need special attention. It is very difficult to start from a flat temperature profile. Instead, it is necessary to add an initial high-temperature region between the electrodes. The model uses the continuation solver to obtain the results for the input currents 200 A and 300 A having solved the model for the 100 A case.
Results and Discussion
Figure 1, Figure 2, and Figure 3 show the temperatures in the solids and gas, fluid velocity, and electric conductivity for the 300 A arc current. The temperature reaches a maximum of 24,500 K at the anode region. The fluid velocity in the electrodes gap is much larger that the inlet as a consequence of the pressure and Lorentz forces. Note also that the conductivity in the gap is of the order or 10 kS/m, thus creating an effective conducting channel.

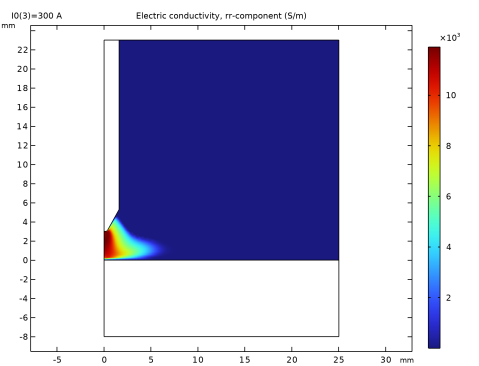

Figure 1: LTE plasma temperature.

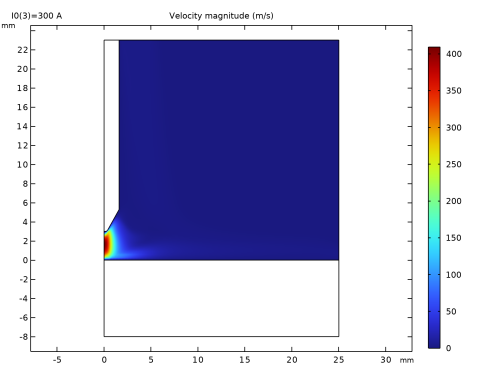

Figure 2: Fluid velocity magnitude.

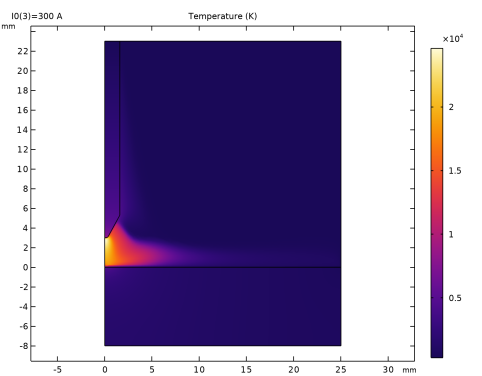

Figure 3: Electric conductivity.
Reference
1. A. Traidia, F. Roger, A. Chidley, J. Schroeder, and T. Marlaud “Effect of Helium-Argon Mixtures on the Heat Transfer and Fluid Flow in Gas Tungsten Arc Welding,” Int. J. Mech. Mechatron., vol. 5, no. 1, pp. 223–228, 2011.
Application Library path: Electric_Discharge_Module/Arc_Discharges/free_burning_argon_arc
Modeling Instructions
From the File menu, choose New.
New
In the New window, click  Model Wizard.
Model Wizard
1
In the Model Wizard window, click  2D Axisymmetric.
2
In the Select Physics tree, select Electric Discharge > Arc Discharge.
3
Click Add.
4
Click  Study.
5
In the Select Study tree, select General Studies > Stationary.
6
Click  Done.
Geometry 1
Select mm units and create the geometry for the arc model.
1
In the Model Builder window, under Component 1 (comp1) click Geometry 1.
2
In the Settings window for Geometry, locate the Units section.
3
From the Length unit list, choose mm.
Rectangle 1 (r1)
1
In the Geometry toolbar, click  Rectangle.
2
In the Settings window for Rectangle, locate the Size and Shape section.
3
In the Width text field, type 25.
4
In the Height text field, type 23.
Rectangle 2 (r2)
1
In the Geometry toolbar, click  Rectangle.
2
In the Settings window for Rectangle, locate the Size and Shape section.
3
In the Width text field, type 25.
4
In the Height text field, type 8.
5
Locate the Position section. In the z text field, type -8.
Polygon 1 (pol1)
1
In the Geometry toolbar, click  Polygon.
2
In the Settings window for Polygon, locate the Object Type section.
3
From the Type list, choose Open curve.
4
Locate the Coordinates section. In the table, enter the following settings:
r (mm)
z (mm)
0
3
0.3
3
1.6
5.3
1.6
23
5
Click  Build All Objects.
Fillet 1 (fil1)
1
In the Geometry toolbar, click  Fillet.
2
On the object pol1, select Point 2 only.
3
In the Settings window for Fillet, locate the Radius section.
4
In the Radius text field, type 0.3.
5
Click  Build All Objects.
Point 1 (pt1)
1
In the Geometry toolbar, click  Point.
2
In the Settings window for Point, locate the Point section.
3
In the r text field, type 5.
4
In the z text field, type 23.
5
Click  Build All Objects.
6
Click the  Zoom Extents button in the Graphics toolbar.
Add materials to the model. Note that the plasma properties are introduced via the argon from the Equilibrium Discharge Library.
Geometry 1
In the Model Builder window, collapse the Component 1 (comp1) > Geometry 1 node.
Add Material
1
In the Materials toolbar, click  Add Material to open the Add Material window.
2
Go to the Add Material window.
3
In the tree, select Equilibrium Discharge > Argon (1[atm]).
4
Click the Add to Component button in the window toolbar.
Materials
Argon (1[atm]) (mat1)
1
In the Settings window for Material, locate the Geometric Entity Selection section.
2
Click  Clear Selection.
3
Select Domain 2 only.
Add Material
1
Go to the Add Material window.
2
In the tree, select Built-in > Steel AISI 4340.
3
Click the Add to Component button in the window toolbar.
Materials
Steel AISI 4340 (mat2)
Select Domain 1 only.
Define parameters for the input current and inlet velocity.
Global Definitions
Parameters 1
1
In the Model Builder window, under Global Definitions click Parameters 1.
2
In the Settings window for Parameters, locate the Parameters section.
3
In the table, enter the following settings:
Name
Expression
Value
Description
I0
100[A]
100 A
Current
U0
3[m/s]
3 m/s
Inlet velocity
Magnetic and Electric Fields (mef)
Magnetic Insulation 1
In the Model Builder window, under Component 1 (comp1) > Magnetic and Electric Fields (mef) click Magnetic Insulation 1.
Electric Insulation 1
1
In the Physics toolbar, click  Attributes and choose Electric Insulation.
2
Select Boundaries 10, 11, and 13 only.
Magnetic Insulation 1
In the Model Builder window, click Magnetic Insulation 1.
Boundary Terminal 1
1
In the Physics toolbar, click  Attributes and choose Boundary Terminal.
2
Select Boundary 7 only.
3
In the Settings window for Boundary Terminal, locate the Terminal section.
4
In the I0 text field, type I0.
Gauge Fixing for A-Field 1
In the Physics toolbar, click  Domains and choose Gauge Fixing for A-Field.
Add Material
1
Go to the Add Material window.
2
In the tree, select Built-in > Tungsten.
3
Click the Add to Component button in the window toolbar.
4
In the Home toolbar, click  Add Material to close the Add Material window.
Materials
Tungsten (mat3)
1
Select Domain 3 only.
2
In the Settings window for Material, locate the Material Contents section.
3
In the table, enter the following settings:
Property
Variable
Value
Unit
Property group
Relative permeability
mur_iso ; murii = mur_iso, murij = 0
1
1
Basic
Electric conductivity
sigma_iso ; sigmaii = sigma_iso, sigmaij = 0
20e6[S/m]
S/m
Basic
Relative permittivity
epsilonr_iso ; epsilonrii = epsilonr_iso, epsilonrij = 0
1
1
Basic
In the Heat Transfer in Fluids you need to define the regions that correspond to solid materials, some boundary conditions, and a special initial condition.
Heat Transfer in Fluids (ht)
1
In the Model Builder window, under Component 1 (comp1) click Heat Transfer in Fluids (ht).
2
In the Settings window for Heat Transfer in Fluids, locate the Physical Model section.
3
In the Tref text field, type 300[K].
Initial Values 1
1
In the Model Builder window, under Component 1 (comp1) > Heat Transfer in Fluids (ht) click Initial Values 1.
2
In the Settings window for Initial Values, locate the Initial Values section.
3
In the T text field, type 300[K].
Solid 1
1
In the Physics toolbar, click  Domains and choose Solid.
2
In the Settings window for Solid, locate the Model Input section.
3
From the Tref list, choose User defined. In the associated text field, type 300[K].
4
Select Domains 1 and 3 only.
Temperature 1
1
In the Physics toolbar, click  Boundaries and choose Temperature.
2
Select Boundaries 7, 10, 11, and 13 only.
3
In the Settings window for Temperature, locate the Temperature section.
4
In the T0 text field, type 300[K].
Heat Flux 1
1
In the Physics toolbar, click  Boundaries and choose Heat Flux.
2
Select Boundaries 2 and 12 only.
3
In the Settings window for Heat Flux, locate the Heat Flux section.
4
From the Flux type list, choose Convective heat flux.
5
In the h text field, type 200.
6
In the Text text field, type 300[K].
Surface-to-Ambient Radiation 1
1
In the Physics toolbar, click  Boundaries and choose Surface-to-Ambient Radiation.
2
Select Boundaries 4, 6, 8, 9, and 14 only.
3
In the Settings window for Surface-to-Ambient Radiation, locate the Surface-to-Ambient Radiation section.
4
From the ε list, choose User defined. In the associated text field, type 0.4.
This problem needs some special initial conditions. It is important to start with a high temperature, though not everywhere; define a temperature profile.
Initial Values 2
1
In the Physics toolbar, click  Domains and choose Initial Values.
2
Select Domain 2 only.
3
In the Settings window for Initial Values, locate the Initial Values section.
4
In the T text field, type 15e3*exp(-(r/1[mm])^2)+300.
Laminar Flow (spf)
1
In the Model Builder window, under Component 1 (comp1) click Laminar Flow (spf).
2
In the Settings window for Laminar Flow, locate the Domain Selection section.
3
Click  Clear Selection.
4
Select Domain 2 only.
Open Boundary 1
1
In the Physics toolbar, click  Boundaries and choose Open Boundary.
2
Select Boundaries 11 and 13 only.
In the Laminar Flow interface you need to add an inlet and an open boundary condition.
Inlet 1
1
In the Physics toolbar, click  Boundaries and choose Inlet.
2
Select Boundary 10 only.
3
In the Settings window for Inlet, locate the Velocity section.
4
In the U0 text field, type U0.
The model does not describe the physics of the non-LTE layer near the electrodes. This leads to unphysically low temperature and electric conductivity at the electrodes that can cause numerical issues. Making the mesh at the electrode coarse enough makes things easier.
Mesh 1
1
In the Model Builder window, under Component 1 (comp1) click Mesh 1.
2
In the Settings window for Mesh, locate the Sequence Type section.
3
From the list, choose User-controlled mesh.
Size 1
1
In the Model Builder window, under Component 1 (comp1) > Mesh 1 click Size 1.
2
In the Settings window for Size, locate the Element Size section.
3
From the Predefined list, choose Finer.
Size 2
1
In the Model Builder window, click Size 2.
2
Select Boundaries 3, 4, 6, 8, 9, and 14 only.
3
In the Settings window for Size, locate the Element Size section.
4
From the Predefined list, choose Extra fine.
Boundary Layers 1
1
In the Model Builder window, right-click Boundary Layers 1 and choose Disable.
2
In the Settings window for Boundary Layers, click  Build All.
This type of problems solve better with a Fully Coupled solver. This option needs to be added manually. A few options in the solver are also adjusted for the present problem.
Study 1
1
In the Model Builder window, click Study 1.
2
In the Settings window for Study, locate the Study Settings section.
3
Clear the Generate default plots checkbox.
Solution 1 (sol1)
In the Study toolbar, click  Show Default Solver.
The continuation solver is suitable for running a parametric sweep for this type of model.
Step 1: Stationary
1
In the Model Builder window, under Study 1 click Step 1: Stationary.
2
In the Settings window for Stationary, click to expand the Study Extensions section.
3
Select the Auxiliary sweep checkbox.
4
Click  Add.
5
In the table, enter the following settings:
Parameter name
Parameter value list
Parameter unit
I0 (Current)
100 200 300
A
Solution 1 (sol1)
1
In the Model Builder window, expand the Solution 1 (sol1) node.
2
In the Model Builder window, expand the Study 1 > Solver Configurations > Solution 1 (sol1) > Stationary Solver 1 node, then click Fully Coupled 1.
3
In the Settings window for Fully Coupled, click to expand the Method and Termination section.
4
In the Initial damping factor text field, type 1E-4.
5
In the Restriction for step-size update text field, type 1.5.
6
In the Recovery damping factor text field, type 0.1.
7
In the Maximum number of iterations text field, type 200.
8
In the Study toolbar, click  Compute.
Create some plots.
Results
Temperature
1
In the Results toolbar, click  2D Plot Group.
2
In the Settings window for 2D Plot Group, type Temperature in the Label text field.
Surface 1
1
Right-click Temperature and choose Surface.
2
In the Settings window for Surface, locate the Coloring and Style section.
3
From the Color table list, choose HeatCamera.
4
Locate the Expression section. In the Expression text field, type T.
5
In the Temperature toolbar, click  Plot.
6
Click the  Zoom Extents button in the Graphics toolbar.
Velocity
1
In the Results toolbar, click  2D Plot Group.
2
In the Settings window for 2D Plot Group, type Velocity in the Label text field.
Surface 1
1
Right-click Velocity and choose Surface.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type spf.U.
4
In the Velocity toolbar, click  Plot.
Electric conductivity
1
In the Results toolbar, click  2D Plot Group.
2
In the Settings window for 2D Plot Group, type Electric conductivity in the Label text field.
Surface 1
1
Right-click Electric conductivity and choose Surface.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type mef.sigmarr.
4
In the Electric conductivity toolbar, click  Plot.
Selection 1
1
Right-click Surface 1 and choose Selection.
2
Select Domain 2 only.
3
In the Electric conductivity toolbar, click  Plot.
Magnetic Flux
1
In the Results toolbar, click  2D Plot Group.
2
In the Settings window for 2D Plot Group, type Magnetic Flux in the Label text field.
Surface 1
1
Right-click Magnetic Flux and choose Surface.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type log10(mef.normB).
4
Locate the Coloring and Style section. From the Color table list, choose JupiterAuroraBorealis.
5
In the Magnetic Flux toolbar, click  Plot.
6
From the Color table transformation list, choose Reverse.
Revolution 2D 1
1
In the Model Builder window, expand the Results > Datasets node.
2
Right-click Results > Datasets and choose Revolution 2D.
3
In the Settings window for Revolution 2D, click to expand the Revolution Layers section.
4
In the Start angle text field, type -90.
5
In the Revolution angle text field, type 225.

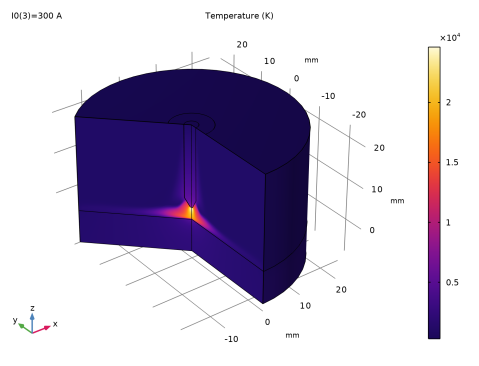

Temperature 3D
1
In the Results toolbar, click  3D Plot Group.
2
In the Settings window for 3D Plot Group, type Temperature 3D in the Label text field.
Volume 1
1
Right-click Temperature 3D and choose Volume.
2
In the Settings window for Volume, locate the Expression section.
3
In the Expression text field, type T.
4
Locate the Coloring and Style section. From the Color table list, choose HeatCamera.
5
In the Temperature 3D toolbar, click  Plot.

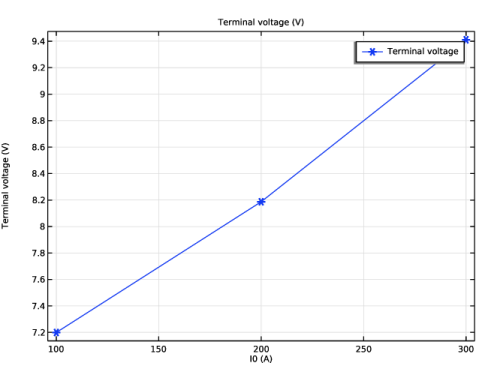

VI Curve
1
In the Results toolbar, click  1D Plot Group.
2
In the Settings window for 1D Plot Group, type VI Curve in the Label text field.
Global 1
1
Right-click VI Curve and choose Global.
2
In the Settings window for Global, locate the y-Axis Data section.
3
In the table, enter the following settings:
Expression
Unit
Description
mef.V0_1
V
Terminal voltage
4
Click to expand the Coloring and Style section. Find the Line markers subsection. From the Marker list, choose Cycle.
Temperature
In the Model Builder window, under Results click Temperature.
Velocity
In the Model Builder window, click Velocity.
Electric conductivity
In the Model Builder window, click Electric conductivity.
Temperature 3D
In the Model Builder window, click Temperature 3D.
VI Curve
In the Model Builder window, click VI Curve.
