COMSOL 6.4 - Electrical Breakdown Between Spheres

Whether electrical breakdown will occur in an electrical system depends on a number of parameters including geometry, applied voltage, fill gas, pressure and temperature. A fully self-consistent plasma model of an electrical system can be very tricky, especially if the geometry is complicated. It is possible to estimate whether electrical breakdown will occur without solving a full blown plasma model, by integrating Townsend growth coefficients along electric field lines. This model shows how to do this for electrical breakdown between two spheres.

Model Definition

This tutorial model shows that the onset of electrical breakdown between two spheres separated by 2 cm, will occur at 51.8 kV for dry air at room temperature.The Electrical Breakdown Detection interface defines 3 different regimes which can occur in any given device. The breakdown condition for a self-sustaining discharge is given by the following:

(1)

where γi is the secondary emission coefficient (dimensionless), N is the number density (SI unit: 1/m3), α is the reduced Townsend growth/decay coefficient (SI unit: m2), s is the arc length along the particle trajectory, and D is the distance from the source boundary to any destination boundary. Using this, the following 3 regimes are defined.

No discharge

Rearranging Equation 1, it is obvious that no discharge will occur if the following condition is true:

(2)

sustained Discharge

When the left hand side of Equation 1 is greater than 1, a self–sustaining discharge can occur. Another way of writing this condition is that a self-sustained discharge can form when the Townsend condition is met:

(3)

This is not necessarily catastrophic to an electrical design, since the current is usually limited in such a discharge. The third case however, can be catastrophic.

streamer

When the exponential of the left hand side is above around 108, a streamer will form across the gap. Mathematically, the streamer condition is given by:

(4)

where d is the gap distance in cm.

The Electrical Breakdown Detection physics interface defines a variable, ebd.bi which takes the value of 0 for the no discharge case, 1 for the sustained discharge and 2 for the streamer. This variable is plotted by default when running a study.

All the information about which regime the system will operate is embedded in the reduced Townsend coefficient, α. The reduced Townsend coefficient is a strong function of the reduced electric field:

(5)

where E is the electric field parallel to the streamlines (SI unit: V/m). The software computes the integral by solving an ordinary differential equation along the test particle trajectories:

(6)

where Nstp is the number density at standard temperature and pressure. Another quantity of interest is the pressure multiplied by the path length. This is also computed by solving the following ordinary differential equation:

(7)

where it is assumed the pressure is constant along the trajectory.

In this model, the Townsend growth coefficient is taken using the option, which uses an interpolation function for the growth coefficient versus reduced electric field, from Ref. 2.

Results and Discussion

The electric field from the electrostatic study is shown in Figure 1. As expected, the electric field is strongest at the minimum distance between the two spheres. Any seed electrons exposed to this electric field have the potential to gain enough energy to ionize the background gas, possibly setting off a positive feedback loop whereby an electron avalanche can occur.

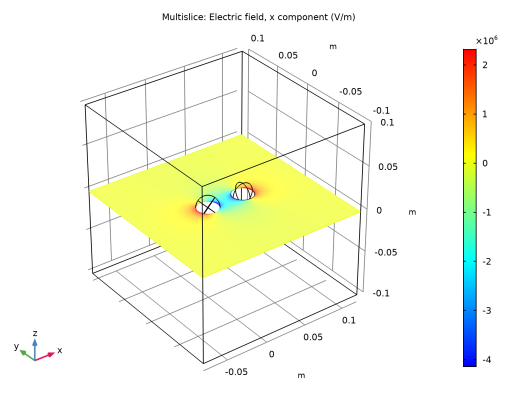

Figure 1: Plot of the electric field between two spheres.

The breakdown indicator for this configuration is shown in Figure 2 below. When the indicator is zero, no discharge will occur, when the indicator is one, a (current limited) Townsend discharge may occur. Since this is current limited, it is not necessarily a problem in the electrical system. However, when the indicator is two, as shown by the small red spot on the left sphere (at the minimum distance between the two spheres), a streamer may form which is not current limited, which can potentially be catastrophic to an electrical system. As expected, the region for streamer formation is a very small dot, meaning that onset is only just occurring. This is expected, since the applied voltage is right at the value (51.8 kV) where this should be the case.

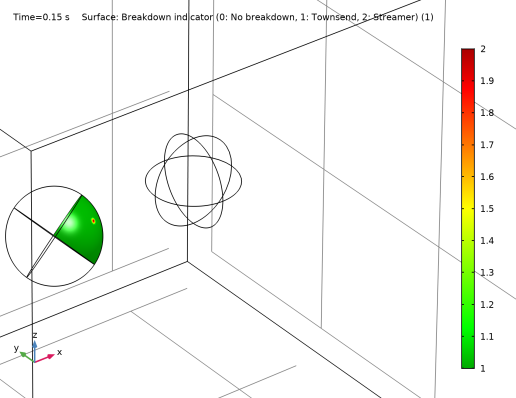

Figure 2: Electrical breakdown indicator on the cathode surface.

The integrated Townsend growth coefficient is show in Figure 3. When this is above around 18.3, streamer formation can occur. There is a substantial variation in this function over the cathode – away from the minimum distance between the two spheres, the integrated growth coefficient is substantially under the streamer threshold.

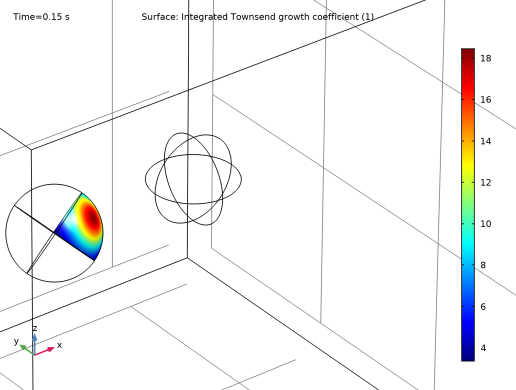

Figure 3: Integrated Townsend growth coefficient on the cathode surface. Once this value gets above around 18, electrical breakdown will occur.

Finally, in Figure 4 the pressure times the path length is plotted in units of torr-cm. This quantity can be of interest, since Paschen curves usually plot the breakdown voltage versus pressure times gap. Providing this as a default plot makes it easy to verify that breakdown is occurring at the expected voltage (for a given pressure times gap length), since experimental Paschen curve data is often available.

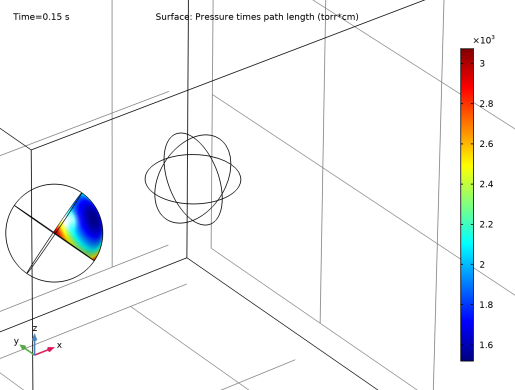

Figure 4: Plot of the pressure times the path length, in units of torr cm. The values are within the range in which the approximate method used to detect electrical breakdown is valid.

References

1. L.K. Warne, R.E. Jorgenson, and S.D. Nicolaysen, Ionization Coefficient Approach to Modeling Breakdown in Nonuniform Geometries, Sandia Report, 2003.

2. J. Dutton, “A survey of Electron Swarm Data,” J. Phys. Chem. Ref. Data, vol. 4, no. 3, 1975.

Electric_Discharge_Module/Streamer_Discharges/breakdown_between_spheres

Modeling Instructions

From the menu, choose .

New

In the window, click

Model Wizard

In the window, click

In the tree, select > > .

Click .

Click

In the tree, select > .

Click

Global Definitions

Parameters 1

In the window, under click .

In the window for , locate the section.

In the table, enter the following settings:


Name	Expression	Value	Description
Vapp	-51.8[kV]	-51800 V	Applied voltage
a	1.25[cm]	0.0125 m	Sphere diameter
hg	2.25[cm]	0.0225 m	Gap 1
d	2hg-2a	0.02 m	Distance between spheres
