Engine Coolant Properties
Introduction
The engine block of a car includes a cooling jacket to remove excess heat from combustion. The cooling jacket consists of open spaces in the cylinder block and the cylinder head. When the engine is running, a coolant fluid is pumped through the jacket to keep the engine from overheating. Optimizing the heat removal is important to minimize coolant boiling, prevent engine failure, and, more recently, improve overall efficiency through waste heat recovery. This example demonstrates how the Thermodynamics feature can be used to evaluate the performance of different engine coolants.
Although pure water works well as a coolant, to prevent freezing at low temperatures, a mixture of ethylene glycol and water is normally used to lower the freezing point. The Thermodynamics feature is used here to show how the boiling point, density, viscosity, thermal conductivity, and heat capacity also depend on the composition of the coolant mixture and how changes in these properties affect the cooling process.
Model Definition
Figure 1 shows the flow pattern inside the cooling jacket of a representative four cylinder engine. Solving a fully coupled nonisothermal turbulent flow problem with temperature, pressure, and composition dependent coolant properties in this complex geometry typically requires a significant number of computer hours. One approach to obtain a reliable approximate solution in a shorter time is to use the functionality available in the Thermodynamics feature to investigate the coolant property behavior and determine where simplifying assumptions can be made. The consequences of these assumptions can be investigated efficiently in a simplified geometry in order to provide confidence in their use in more complex geometries.
Figure 1: The coolant flow inside the cooling jacket of a four cylinder engine.

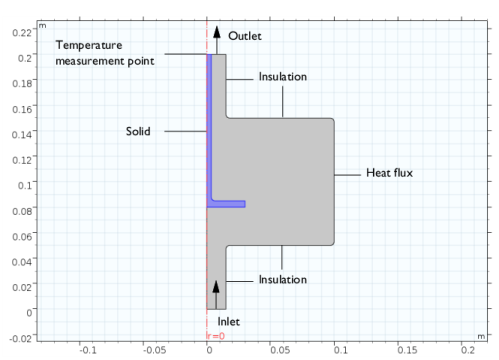

Here a simplified 2D axially symmetric geometry, shown in Figure 2, is considered as an engine coolant test apparatus. Coolant is introduced at a specified flow rate in the bottom of the device, the coolant hits a solid steel part and is then deflected into a larger flow domain. A heat flux is applied on the outer boundary of the larger section. The resulting temperature is measured at steady state in the solid structure near the coolant outflow at the top.
To solve for the fluid flow and heat transfer in the test apparatus, the current model uses the Single-Phase Flow and the Heat Transfer in Fluids interfaces. The interfaces are coupled using a Nonisothermal Flow multiphysics feature, and the k-ε model is used to model the fluid flow turbulence.
The properties of the coolant fluid are defined using the Thermodynamics feature. This is done by first defining and adding a Thermodynamic System node to the Thermodynamics feature. Included in the Thermodynamic System are the relevant chemical species, in this case ethylene glycol and water. The Thermodynamic System node in turn can be used to compute property functions for thermodynamic properties and transport properties, both for the pure species and for the resulting mixture. In this case, functions for the density, the viscosity, the thermal conductivity and the heat capacity of the coolant mixture are created.
The analysis of the coolant properties is performed in three steps. First, the mixture properties are evaluated by plotting the functions created by the Thermodynamic System. Then the phase envelope of the coolant vapor-liquid system is visualized by plotting the equilibrium temperatures (for boiling and condensation) as a function of the composition. The required equilibrium functions are defined by adding an Equilibrium Calculation feature to the Thermodynamic System. Using the equilibrium functions the phase envelope for two different pressures are compared.
The fluid flow and heat transfer of the coolant mixture inside the test apparatus are then solved for. Results for pure water, and a 50 volume percent mixture of ethylene glycol in water are compared. For these chemicals, a 50 volume percent mixture corresponds to 52.7 mass percent. Finally the results are used to compute average mixture properties.
Figure 2: Axially symmetric engine coolant test apparatus.
Results and Discussion
Figure 3 shows the temperature and composition dependence of the heat capacity. Similar graphs are generated for density, viscosity, and thermal conductivity. Studying these graphs reveals that the addition of ethylene glycol increases the density and viscosity, but decreases the thermal conductivity and heat capacity when compared with pure water. It should be expected that a 50 volume percent mixture will yield more pressure drop and require a higher flow rate to achieve the same cooling effect as that of pure water.
Figure 3: Heat capacity as a function of temperature and composition for ethylene glycol water mixtures.
Figure 4 shows the phase envelope for ethylene glycol-water mixtures produced using the Equilibrium Calculation feature of the Thermodynamic System. A car coolant system typically operates at about 2 atm pressure. Here we can see that a 50 volume percent (24.4 mole percent) mixture should boil at a temperature slightly higher than 400 K at this pressure.
Figure 4: Phase envelope for the equilibrium temperature of ethylene glycol-water mixtures at two pressures.

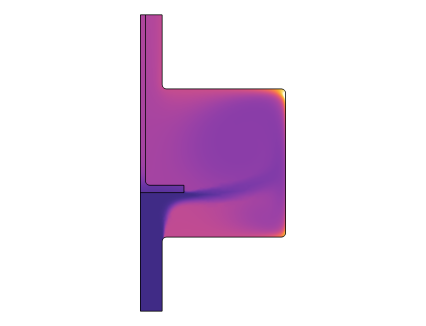

Figure 5 shows the flow pattern inside the test apparatus with water entering at 1 m/s. The coolant flow of 42 l/min and a heat input of 50 kW used here in the test apparatus are on the same order of magnitude as in a conventional car cooling system.
Figure 5: Flow patterns inside the test apparatus with water at 1 m/s.

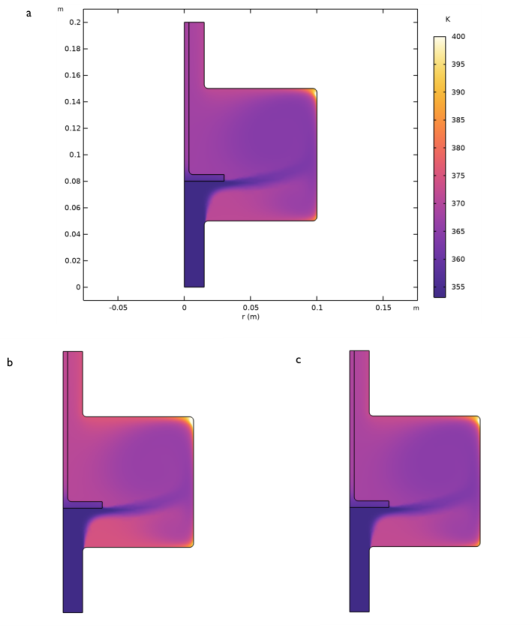

As expected, Figure 6 shows that an ethylene glycol-water mixture will provide less cooling than pure water at a fixed flow rate. About 15 percent more coolant flow is required to produce the same cooling as when using pure water. It can also be seen that some boiling of the coolant (at T > 400 K) is expected in the recirculation zones in the outer corners of the apparatus.
Figure 6: Temperature within the test apparatus for three cases: (a) water at 1 m/s, (b) 50 volume percent ethylene glycol at 1 m/s, and (c) 50 volume percent ethylene glycol at 1.15 m/s.
Table 1 provides a comparison of results for pressure drop, outlet temperature, and outlet density.
Table 1: Simulation Results.
Weight fraction,
ethylene glycol
Velocity
(m/s)
Pressure drop
(Pa)
Outlet temperature
(K)
Outlet density
(kg/m)
0
1
552
370
961
0.527
1
626
373
1007
0.527
1.15
819
371
1008
0.5271
1
605
373
1010
1 Using constant mixture properties.
Considering the graphical results for the various coolant properties, it might be reasonable to use approximate averages for the relatively small temperature range considered, between 353 and 400 K. In Figure 7 the resulting heat capacity for the pure water and the two ethylene glycol-water mixture cases is plotted. As seen before, the heat capacity differs significantly when comparing pure water and the mixture. But, the individual variation for each coolant however is seen to be small, about 2% for this mixture property and location. Analyzing the density in the same manner, the variation can be seen to be in the same order of magnitude.

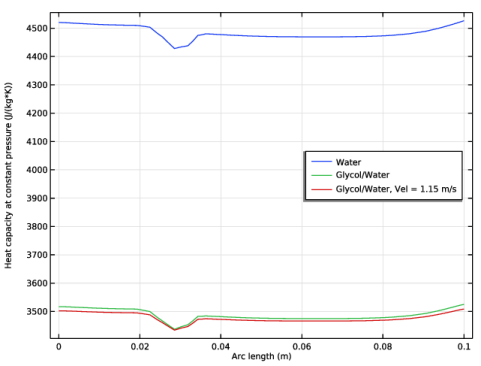

Figure 7: Coolant heat capacity plotted along a vertical cut line at half the radius of the test apparatus chamber.

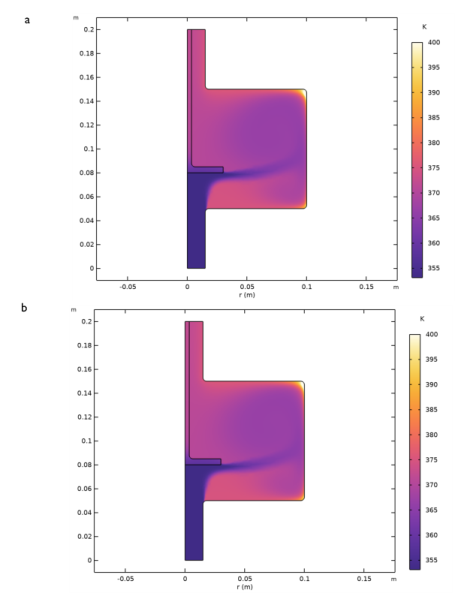

Using the solution for a mixture with 50 volume percent ethylene glycol in water, the following average values are computed; density = 1010 kg/m3, viscosity = 9.07·10-4 Pa·s, thermal conductivity = 0.574 W/(m·K), and heat capacity = 3,486 J/(kg·K). Figure 8 shows a comparison of the temperature results obtained using these approximations with those using the fully coupled temperature dependent properties in our test device. The similarity between these results is sufficient to justify the use of the approximate average values in a cooling jacket model with a realistic geometry. Solving the flow and heat transfer equations requires considerably less computational effort for the constant average property value case.
Figure 8: Comparison of temperature within the test apparatus for 50 volume percent ethylene glycol in water at 1 m/s using: (a) temperature dependent properties, (b) approximate average properties.
Reference
1. http://www.engineeringtoolbox.com/ethylene-glycol-d_146.html
Application Library path: Chemical_Reaction_Engineering_Module/Thermodynamics/engine_coolant_properties
Note: This model is included in the booklets Introduction to Thermodynamic Properties, and Introduction to the Liquid & Gas Properties Module.
Modeling Instructions
From the File menu, choose New.
New
In the New window, click  Model Wizard.
Model Wizard
1
In the Model Wizard window, click  2D Axisymmetric.
2
In the Select Physics tree, select Fluid Flow > Nonisothermal Flow > Turbulent Flow > Turbulent Flow, k-ε.
3
Click Add.
4
Click  Study.
5
In the Select Study tree, select General Studies > Stationary.
6
Click  Done.
Global Definitions
In the Physics toolbar, click  Thermodynamics and choose Thermodynamic System.
Select System
1
Go to the Select System window.
2
From the Phase list, choose Vapor–liquid.
3
Click the Next button in the window toolbar.
Select Species
1
Go to the Select Species window.
2
In the Species list box, select ethylene glycol (107-21-1, C2H6O2).
3
Click  Add Selected.
4
In the Species text field, type water.
5
In the Species list box, select water (7732-18-5, H2O).
6
Click  Add Selected.
7
Click the Next button in the window toolbar.
Select Thermodynamic Model
1
Go to the Select Thermodynamic Model window.
2
From the list, choose UNIFAC VLE.
3
From the Gas-phase model list, choose Ideal gas.
4
Click the Finish button in the window toolbar.
Global Definitions
Vapor–Liquid System 1 (pp1)
When modeling a fixed composition mixture, it is convenient to use a material. The reason is that the default behavior in physics interfaces is to use properties from the domain material. Use the Thermodynamic System to automatically define a Material node for the properties of the mixture.
1
Right-click Global Definitions > Thermodynamics > Vapor–Liquid System 1 (pp1) and choose Generate Material.
Select Phase
1
Go to the Select Phase window.
2
From the list, choose Liquid.
3
Click the Next button in the window toolbar.
Select Species
1
Go to the Select Species window.
Notice that both species are already added to the Selected species list.
2
Find the Material composition subsection. Click the Mass fraction button.
Keep the default composition in the Material composition subsection. The composition will be redefined in the generated Material.
3
Click the Next button in the window toolbar.
Select Properties
1
Go to the Select Properties window.
Use the default properties. The diffusion coefficients are not needed since a constant composition mixture is studied.
2
Click the Next button in the window toolbar.
Define Material
1
Go to the Define Material window.
Add the material to Component 1. Also keep the Function type set to Thermodynamics. This means that material properties will directly use functions defined by the Vapor-Liquid System.
2
Click the Finish button in the window toolbar.
Global Definitions
Load the needed parameters from a file. Alternatively, you could have created the parameters in the Parameter window directly.
Parameters 1
1
In the Model Builder window, under Global Definitions click Parameters 1.
2
In the Settings window for Parameters, locate the Parameters section.
3
Click  Load from File.
4
Browse to the model’s Application Libraries folder and double-click the file engine_coolant_properties_parameters.txt.
Now that we have defined our Thermodynamic System and used that to generate a Material, it is time to build the geometry for the axially symmetric engine coolant test apparatus.
Geometry 1
Rectangle 1 (r1)
1
In the Model Builder window, expand the Component 1 (comp1) > Geometry 1 node.
2
Right-click Geometry 1 and choose Rectangle.
3
In the Settings window for Rectangle, locate the Size and Shape section.
4
In the Width text field, type r_p.
5
In the Height text field, type l_p.
6
Click  Build Selected.
Rectangle 2 (r2)
1
In the Geometry toolbar, click  Rectangle.
2
In the Settings window for Rectangle, locate the Size and Shape section.
3
In the Width text field, type r_c.
4
In the Height text field, type l_c.
5
Locate the Position section. In the z text field, type zpos_c.
6
Click  Build Selected.
Rectangle 3 (r3)
1
In the Geometry toolbar, click  Rectangle.
2
In the Settings window for Rectangle, locate the Size and Shape section.
3
In the Width text field, type r_s1.
4
In the Height text field, type l_s1.
5
Locate the Position section. In the z text field, type zpos_s.
6
Click  Build Selected.
Rectangle 4 (r4)
1
In the Geometry toolbar, click  Rectangle.
2
In the Settings window for Rectangle, locate the Size and Shape section.
3
In the Width text field, type r_s2.
4
In the Height text field, type l_s2.
5
Locate the Position section. In the z text field, type zpos_s.
6
Click  Build Selected.
Union 1 (uni1)
1
In the Geometry toolbar, click  Booleans and Partitions and choose Union.
2
Select the objects r3 and r4 only.
3
In the Settings window for Union, locate the Union section.
4
Clear the Keep interior boundaries checkbox.
5
Click  Build Selected.
Union 2 (uni2)
1
In the Geometry toolbar, click  Booleans and Partitions and choose Union.
2
Select the objects r1 and r2 only.
3
In the Settings window for Union, locate the Union section.
4
Clear the Keep interior boundaries checkbox.
5
Click  Build Selected.
Fillet 1 (fil1)
1
In the Geometry toolbar, click  Fillet.
2
On the object uni1, select Point 5 only.
3
On the object uni2, select Points 6, 7, 9, and 10 only.
4
In the Settings window for Fillet, locate the Radius section.
5
In the Radius text field, type 0.3[cm].
6
Click  Build All Objects.
Study 1: Mixture properties parameterization
Now, compute and plot the properties of the glycol-water coolant as defined by the Thermodynamics functions.
1
In the Model Builder window, click Study 1.
2
In the Settings window for Study, type Study 1: Mixture properties parameterization in the Label text field.
3
Locate the Study Settings section. Clear the Generate default plots checkbox.
Step 1: Stationary
Start this investigation by performing an Auxiliary sweep study, where you study the effect of varying mass fraction of ethylene, and varying coolant temperature.
1
In the Model Builder window, under Study 1: Mixture properties parameterization click Step 1: Stationary.
2
In the Settings window for Stationary, click to expand the Study Extensions section.
3
Select the Auxiliary sweep checkbox.
4
Click  Add twice.
5
In the table, enter the following settings:
Parameter name
Parameter value list
Parameter unit
w_EG (Mass fraction, ethylene glycol)
0 0.527 1

Tc (Coolant temperature)
range(273,10,473)
K
6
From the Sweep type list, choose All combinations.
During this first Auxiliary sweep study there is no need to solve for turbulent flow and heat transfer. Change the settings to omit solving for these interfaces.
7
Locate the Physics and Variables Selection section. In the Solve for column of the table, under Component 1 (comp1), clear the checkboxes for Turbulent Flow, k-ε (spf) and Heat Transfer in Fluids (ht).
8
In the Solve for column of the table, under Component 1 (comp1) > Multiphysics, clear the checkbox for Nonisothermal Flow 1 (nitf1).
The parametric solver has now been set up to compute function values for pure water, a 50 volume percent mixture of ethylene glycol and water, and pure ethylene glycol. Furthermore, the solver will compute function values for a temperature range from 273 K to 473 K.
9
In the Study toolbar, click  Compute.
Results
Now, inspect the results from the study by creating a plot group and plot the results. Start with the density.
Density
1
In the Results toolbar, click  1D Plot Group.
2
In the Settings window for 1D Plot Group, type Density in the Label text field.
3
Click to expand the Title section. From the Title type list, choose None.
Global 1
1
In the Density toolbar, click  Global.
2
In the Settings window for Global, click Replace Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Global definitions > Functions > Densitypp1(temperature, pressure, massfraction_ethylene_glycol, massfraction_water) - Density 1.
3
Locate the y-Axis Data section. In the table, enter the following settings:
Expression
Unit
Description
Densitypp1(Tc,pRef,w_EG,w_W)


4
Click to expand the Coloring and Style section. From the Width list, choose 2.
5
Click to expand the Legends section. Find the Include subsection. Clear the Description checkbox.
Note: The function named Densitypp1, can be found in the Model Builder window, under Global Definitions > Thermodynamics. Click the mixture density function, labeled Density 1, and you will find the Function name in the Settings window. The function was created by the Thermodynamic System and can be used in any physics interface.
Density
Return to the plot group to improve the plot settings.
1
In the Model Builder window, click Density.
2
In the Settings window for 1D Plot Group, locate the Plot Settings section.
3
Select the x-axis label checkbox.
4
Select the y-axis label checkbox.
5
In the x-axis label text field, type Temperature (K).
6
In the y-axis label text field, type Density (kg/m<sup>3</sup>).
7
In the Density toolbar, click  Plot.
The resulting plot shows the coolant density for the three compositions. Perform the same steps to complete the plots for viscosity, thermal conductivity and heat capacity.
Viscosity
1
In the Results toolbar, click  1D Plot Group.
2
In the Settings window for 1D Plot Group, type Viscosity in the Label text field.
3
Locate the Title section. From the Title type list, choose None.
Global 1
1
In the Viscosity toolbar, click  Global.
2
In the Settings window for Global, click Replace Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Global definitions > Functions > Viscositypp1(temperature, pressure, massfraction_ethylene_glycol, massfraction_water) - Viscosity 1.
3
Locate the y-Axis Data section. In the table, enter the following settings:
Expression
Unit
Description
Viscositypp1(Tc,pRef,w_EG,w_W)


4
Locate the Coloring and Style section. From the Width list, choose 2.
5
Locate the Legends section. Find the Include subsection. Clear the Description checkbox.
Viscosity
1
In the Model Builder window, click Viscosity.
2
In the Settings window for 1D Plot Group, locate the Plot Settings section.
3
Select the x-axis label checkbox.
4
Select the y-axis label checkbox.
5
In the x-axis label text field, type Temperature (K).
6
In the y-axis label text field, type Viscosity (Pa*s).
7
In the Viscosity toolbar, click  Plot.
Thermal Conductivity
1
In the Results toolbar, click  1D Plot Group.
2
In the Settings window for 1D Plot Group, type Thermal Conductivity in the Label text field.
3
Locate the Title section. From the Title type list, choose None.
Global 1
1
In the Thermal Conductivity toolbar, click  Global.
2
In the Settings window for Global, click Replace Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Global definitions > Functions > ThermalConductivitypp1(temperature, pressure, massfraction_ethylene_glycol, massfraction_water) - Thermal conductivity 1.
3
Locate the y-Axis Data section. In the table, enter the following settings:
Expression
Unit
Description
ThermalConductivitypp1(Tc,pRef,w_EG,w_W)


4
Locate the Coloring and Style section. From the Width list, choose 2.
5
Locate the Legends section. Find the Include subsection. Clear the Description checkbox.
Thermal Conductivity
1
In the Model Builder window, click Thermal Conductivity.
2
In the Settings window for 1D Plot Group, locate the Plot Settings section.
3
Select the x-axis label checkbox. In the associated text field, type Temperature (K).
4
Select the y-axis label checkbox. In the associated text field, type Thermal conductivity (W/(m*K)).
5
Locate the Legend section. From the Position list, choose Middle right.
6
In the Thermal Conductivity toolbar, click  Plot.
Heat Capacity
1
In the Results toolbar, click  1D Plot Group.
2
In the Settings window for 1D Plot Group, type Heat Capacity in the Label text field.
3
Locate the Title section. From the Title type list, choose None.
Global 1
1
In the Heat Capacity toolbar, click  Global.
2
In the Settings window for Global, click Replace Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Global definitions > Functions > HeatCapacityCppp1(temperature, pressure, massfraction_ethylene_glycol, massfraction_water) - Heat capacity (Cp) 1.
3
Locate the y-Axis Data section. In the table, enter the following settings:
Expression
Unit
Description
HeatCapacityCppp1(Tc,pRef,w_EG,w_W)


4
Locate the Coloring and Style section. From the Width list, choose 2.
5
Locate the Legends section. Find the Include subsection. Clear the Description checkbox.
Heat Capacity
1
In the Model Builder window, click Heat Capacity.
2
In the Settings window for 1D Plot Group, locate the Plot Settings section.
3
Select the x-axis label checkbox. In the associated text field, type Temperature (K).
4
Select the y-axis label checkbox. In the associated text field, type Heat capacity (J/(kg*K)).
5
Locate the Legend section. From the Position list, choose Upper left.
6
In the Heat Capacity toolbar, click  Plot.
Now, use the thermodynamic system to define an equilibrium function. This will be used to visualize the phase envelope of the coolant mixture.
Global Definitions
Vapor–Liquid System 1 (pp1)
In the Model Builder window, under Global Definitions > Thermodynamics right-click Vapor–Liquid System 1 (pp1) and choose Equilibrium Calculation.
Select Species
1
Go to the Select Species window.
2
Click  Add All.
3
Click the Next button in the window toolbar.
Equilibrium Specifications
1
Go to the Equilibrium Specifications window.
2
From the Amount base unit list, choose mol.
3
Find the Equilibrium conditions subsection. From the First condition list, choose Pressure.
4
From the Second condition list, choose Phase fraction.
5
Click the Next button in the window toolbar.
Equilibrium Function Overview
1
Go to the Equilibrium Function Overview window.
2
Click the Finish button in the window toolbar.
Global Definitions
You can now create an Analytic function to plot the phase envelope. Create an Analytic function from the equilibrium function just defined. Analytic functions are convenient since they do not require the actual argument names in an expression when writing the function. Also, use the Analytic function to change the composition arguments from moles to mole fractions.
Phase envelope
1
In the Home toolbar, click  Functions and choose Global > Analytic.
2
In the Settings window for Analytic, type Phase envelope in the Label text field.
3
In the Function name text field, type T_x_y.
4
Locate the Definition section. In the Expression text field, type Flash1_1_Temperature(p,n,w_EG,w_W).
5
In the Arguments text field, type p, n, w_EG, w_W.
Remember to use the same order of the arguments as defined in the Equilibrium Calculation node.
6
Locate the Units section. In the table, enter the following settings:
Argument
Unit
p
Pa
n
1
w_EG
mol/mol
w_W
mol/mol
7
In the Function text field, type K.
Note: The expression Flash1_1_Temperature and what arguments to use can be found in the Model Builder window, under Global Definitions > Thermodynamics > Vapor-Liquid System 1 (pp1) > Mixture. Under Mixture, click Equilibrium Calculation. In the Settings window, locate the Functions subsection, as well as the Arguments subsection, both in the Definition section.
Add Study
1
In the Home toolbar, click  Add Study to open the Add Study window.
Add a Study to compute the phase envelope for the mixture, using the defined analytic function.
2
Go to the Add Study window.
3
Find the Studies subsection. In the Select Study tree, select General Studies > Stationary.
4
Right-click and choose Add Study.
5
In the Home toolbar, click  Add Study to close the Add Study window.
Study 2
Step 1: Stationary
Add settings to perform an Auxiliary sweep study, where we vary mass fraction of ethylene glycol, phase fraction, and coolant pressure.
1
In the Settings window for Stationary, locate the Study Extensions section.
2
Select the Auxiliary sweep checkbox.
3
Click  Add three times.
4
In the table, enter the following settings:
Parameter name
Parameter value list
Parameter unit
w_EG (Mass fraction, ethylene glycol)
range(0,0.01,1)

n (Phase fraction)
0 1

pRef (Coolant pressure)
1[atm] 2[atm]
Pa
5
From the Sweep type list, choose All combinations.
6
In the Model Builder window, click Study 2.
7
In the Settings window for Study, type Study 2: Phase envelope parameterization in the Label text field.
8
Locate the Study Settings section. Clear the Generate default plots checkbox.
9
In the Model Builder window, click Step 1: Stationary.
10
In the Settings window for Stationary, locate the Physics and Variables Selection section.
11
In the Solve for column of the table, under Component 1 (comp1), clear the checkboxes for Turbulent Flow, k-ε (spf) and Heat Transfer in Fluids (ht).
12
In the Solve for column of the table, under Component 1 (comp1) > Multiphysics, clear the checkbox for Nonisothermal Flow 1 (nitf1).
13
In the Study toolbar, click  Compute.
Results
Plot the phase envelope, for the two pressures used, as a function of the mole fraction of ethylene glycol.
1D Plot Group 5
1
In the Results toolbar, click  1D Plot Group.
2
In the Settings window for 1D Plot Group, locate the Data section.
3
From the Dataset list, choose Study 2: Phase envelope parameterization/Solution 2 (sol2).
4
Locate the Title section. From the Title type list, choose None.
5
Locate the Plot Settings section.
6
Select the x-axis label checkbox. In the associated text field, type Mole fraction ethylene glycol.
7
Select the y-axis label checkbox. In the associated text field, type Temperature (K).
Global 1
1
In the 1D Plot Group 5 toolbar, click  Global.
2
In the Settings window for Global, locate the y-Axis Data section.
3
In the table, enter the following settings:
Expression
Unit
Description
T_x_y(pRef, n, w_EG, w_W)


4
Locate the x-Axis Data section. From the Axis source data list, choose w_EG.
5
Locate the Coloring and Style section. From the Width list, choose 2.
6
In the 1D Plot Group 5 toolbar, click  Plot.
Phase Envelope
1
In the Model Builder window, click 1D Plot Group 5.
2
In the Settings window for 1D Plot Group, locate the Legend section.
3
From the Position list, choose Upper left.
4
In the Label text field, type Phase Envelope.
Materials
Apply the material to the fluid domain. Also, use the defined parameters to specify the mixture composition. This makes it easy to vary the composition.
Liquid: ethylene glycol-water 1 (pp1mat1)
1
In the Model Builder window, expand the Component 1 (comp1) > Materials node, then click Liquid: ethylene glycol-water 1 (pp1mat1).
2
Select Domain 1 only.
3
In the Settings window for Material, locate the Material Contents section.
4
Find the Local properties subsection. In the table, enter the following settings:
Name
Expression
Unit
Description
Property group
xw1
w_EG

Mass fraction, ethylene glycol
Basic
xw2
w_W

Mass fraction, water
Basic
Now apply boundary conditions.
Turbulent Flow, k-ε (spf)
1
In the Model Builder window, under Component 1 (comp1) click Turbulent Flow, k-ε (spf).
2
Select Domain 1 only.
Inlet 1
1
In the Physics toolbar, click  Boundaries and choose Inlet.
2
Select Boundary 2 only.
3
In the Settings window for Inlet, locate the Velocity section.
4
In the U0 text field, type Vel.
Outlet 1
1
In the Physics toolbar, click  Boundaries and choose Outlet.
2
Select Boundary 11 only.
Heat Transfer in Fluids (ht)
In the Model Builder window, under Component 1 (comp1) click Heat Transfer in Fluids (ht).
Inflow 1
1
In the Physics toolbar, click  Boundaries and choose Inflow.
2
Select Boundary 2 only.
3
In the Settings window for Inflow, locate the Upstream Properties section.
4
In the Tustr text field, type Tc.
5
Select the Specify upstream absolute pressure checkbox.
6
In the pustr text field, type pRef.
Outflow 1
1
In the Physics toolbar, click  Boundaries and choose Outflow.
2
Select Boundary 11 only.
Heat Flux 1
1
In the Physics toolbar, click  Boundaries and choose Heat Flux.
2
Select Boundary 18 only.
3
In the Settings window for Heat Flux, locate the Heat Flux section.
4
From the Flux type list, choose Heat rate.
5
In the P0 text field, type P0.
Solid 1
1
In the Physics toolbar, click  Domains and choose Solid.
2
Select Domain 2 only.
Add material properties for the solid steel part from Materials.
Add Material
1
In the Home toolbar, click  Add Material to open the Add Material window.
2
Go to the Add Material window.
3
In the tree, select Built-in > Structural steel.
4
Click the Add to Component button in the window toolbar.
5
In the Home toolbar, click  Add Material to close the Add Material window.
Materials
Structural steel (mat1)
Select Domain 2 only.
Now add a Stationary study to solve for the fluid flow and heat transfer in the test apparatus using pure water as the coolant.
Use two stationary study steps. The first step solves for the fluid flow only. This serves as initial conditions for the second step, which in turn solves for both fluid flow and heat transfer.
Add Study
1
In the Home toolbar, click  Add Study to open the Add Study window.
2
Go to the Add Study window.
3
Find the Studies subsection. In the Select Study tree, select General Studies > Stationary.
4
Find the Physics interfaces in study subsection. In the table, clear the Solve checkbox for Heat Transfer in Fluids (ht).
5
Click the Add Study button in the window toolbar.
Study 3
Step 1: Stationary
1
In the Settings window for Stationary, locate the Study Extensions section.
2
Select the Auxiliary sweep checkbox.
3
Click  Add.
4
In the table, enter the following settings:
Parameter name
Parameter value list
Parameter unit
w_EG (Mass fraction, ethylene glycol)
0

5
In the Study toolbar, click  Add Study to close the Add Study window.
6
In the Settings window for Study, type Study 3: Water in the Label text field.
Step 2: Stationary 2
1
In the Study toolbar, click  Stationary.
2
In the Settings window for Stationary, click to expand the Study Extensions section.
3
Select the Auxiliary sweep checkbox.
4
Click  Add.
5
In the table, enter the following settings:
Parameter name
Parameter value list
Parameter unit
w_EG (Mass fraction, ethylene glycol)
0

Solution 3 (sol3)
1
In the Study toolbar, click  Show Default Solver.
Study step 2 uses the solution for the flow field as initial conditions. In this case Anderson acceleration can be enabled to reduce the simulation time.
2
In the Model Builder window, expand the Solution 3 (sol3) node.
3
In the Model Builder window, expand the Study 3: Water > Solver Configurations > Solution 3 (sol3) > Stationary Solver 2 node, then click Segregated 1.
4
In the Settings window for Segregated, locate the General section.
5
From the Stabilization and acceleration list, choose Anderson acceleration.
6
In the Study toolbar, click  Compute.
Results
Revolution 2D 2
1
In the Model Builder window, expand the Results > Datasets node.
2
Right-click Revolution 2D and choose Duplicate.
3
In the Settings window for Revolution 2D, click to expand the Revolution Layers section.
4
In the Start angle text field, type 0.
5
In the Revolution angle text field, type 360.
Revolution 2D 3
Right-click Revolution 2D and choose Duplicate.
Selection
1
In the Results toolbar, click  Attributes and choose Selection.
2
In the Settings window for Selection, locate the Geometric Entity Selection section.
3
From the Geometric entity level list, choose Boundary.
4
From the Selection list, choose All boundaries.
5
Select Boundaries 1, 3–10, and 12–23 only.
Plot group 10 displays the flow field in the test apparatus using a revolved dataset.
Velocity, 3D (spf)
1
In the Model Builder window, under Results click Velocity, 3D (spf).
2
In the Settings window for 3D Plot Group, click to expand the Title section.
3
From the Title type list, choose Manual.
4
In the Title text area, type Velocity magnitude.
5
Locate the Plot Settings section. Clear the Plot dataset edges checkbox.
6
Locate the Color Legend section. Select the Show units checkbox.
Surface
1
In the Model Builder window, expand the Velocity, 3D (spf) node, then click Surface.
2
In the Settings window for Surface, locate the Coloring and Style section.
3
From the Color table list, choose Passiflora.
Velocity, 3D (spf)
In the Velocity, 3D (spf) toolbar, click  Surface.
Surface 2
1
In the Settings window for Surface, locate the Data section.
2
From the Dataset list, choose Revolution 2D 2.
Material Appearance 1
1
In the Velocity, 3D (spf) toolbar, click  Material Appearance.
2
In the Settings window for Material Appearance, locate the Appearance section.
3
From the Appearance list, choose Custom.
4
From the Material type list, choose Steel (anodized).
Surface 2
In the Model Builder window, click Surface 2.
Selection 1
1
In the Velocity, 3D (spf) toolbar, click  Selection.
2
Select Domain 2 only.
Surface 3
1
Right-click Surface 2 and choose Duplicate.
2
In the Settings window for Surface, locate the Data section.
3
From the Dataset list, choose Revolution 2D 3.
Selection 1
1
In the Model Builder window, expand the Surface 3 node, then click Selection 1.
2
In the Settings window for Selection, locate the Selection section.
3
Click to select the  Activate Selection toggle button.
4
Select Domain 1 only.
5
Locate the Revolution Selection section. Clear the Evaluate the start cap checkbox.
6
Clear the Evaluate the end cap checkbox.
Velocity, 3D (spf)
1
In the Model Builder window, under Results click Velocity, 3D (spf).
2
In the Settings window for 3D Plot Group, in the Graphics window toolbar, clicknext to  Scene Light, then choose Indoor.
Delete some superfluous plot groups.
Pressure (spf), Temperature (ht), Temperature and Fluid Flow (nitf1), Velocity (spf)
1
In the Model Builder window, under Results, Ctrl-click to select Velocity (spf), Pressure (spf), Temperature (ht), and Temperature and Fluid Flow (nitf1).
2
Right-click and choose Delete.
Create a 2D plot group for the temperature.
2D Plot Group 10
1
In the Results toolbar, click  2D Plot Group.
2
In the Settings window for 2D Plot Group, locate the Data section.
3
From the Dataset list, choose Study 3: Water/Solution 3 (sol3).
Surface 1
1
In the 2D Plot Group 10 toolbar, click  Surface.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type T.
4
In the 2D Plot Group 10 toolbar, click  Plot.
5
Click to expand the Range section. Select the Manual color range checkbox.
6
In the Maximum text field, type 400.
7
Locate the Coloring and Style section. From the Color table list, choose HeatCameraLight.
8
In the 2D Plot Group 10 toolbar, click  Plot.
9
Click the  Zoom Extents button in the Graphics toolbar.
Temperature
1
In the Model Builder window, under Results click 2D Plot Group 10.
2
In the Settings window for 2D Plot Group, type Temperature in the Label text field.
3
Locate the Plot Settings section.
4
Select the x-axis label checkbox. In the associated text field, type r (m).
5
Locate the Color Legend section. Select the Show units checkbox.
Add Study
Add a new Study to solve for the fluid flow and heat transfer in the test apparatus when using a coolant mixture composed of equal volumes of ethylene glycol and water. Use two study steps; One using the same inlet velocity as for the pure water case, and one where the flow rate of the ethylene/water mixture is increased by 15%.
1
In the Home toolbar, click  Add Study to open the Add Study window.
2
Go to the Add Study window.
3
Find the Studies subsection. In the Select Study tree, select General Studies > Stationary.
4
Click the Add Study button in the window toolbar.
5
In the Home toolbar, click  Add Study to close the Add Study window.
Study 4
Step 1: Stationary
1
In the Settings window for Stationary, locate the Study Extensions section.
2
Select the Auxiliary sweep checkbox.
3
Click  Add twice.
4
In the table, enter the following settings:
Parameter name
Parameter value list
Parameter unit
w_EG (Mass fraction, ethylene glycol)
0.527

Vel (Pipe inlet velocity)
1
m/s
Step 2: Stationary 1
1
Right-click Study 4 > Step 1: Stationary and choose Duplicate.
2
In the Settings window for Stationary, locate the Study Extensions section.
3
In the table, enter the following settings:
Parameter name
Parameter value list
Parameter unit
Vel (Pipe inlet velocity)
1.15
m/s
Step 1: Stationary
1
In the Model Builder window, click Step 1: Stationary.
2
In the Settings window for Stationary, click to expand the Values of Dependent Variables section.
3
Find the Initial values of variables solved for subsection. From the Settings list, choose User controlled.
4
From the Method list, choose Solution.
5
From the Study list, choose Study 3: Water, Stationary 2.
Vel = 1.15 m/s
1
In the Study toolbar, click  Show Default Solver.
Apply Anderson acceleration also for the cases using ethylene glycol. Note that the previous solution, using water as coolant, was used for the initial conditions.
2
In the Model Builder window, expand the Solution 5 (sol5) node.
3
In the Model Builder window, expand the Study 4 > Solver Configurations > Solution 5 (sol5) > Stationary Solver 1 node, then click Segregated 1.
4
In the Settings window for Segregated, locate the General section.
5
From the Stabilization and acceleration list, choose Anderson acceleration.
6
In the Model Builder window, collapse the Study 4 > Solver Configurations > Solution 5 (sol5) > Stationary Solver 1 node.
7
In the Model Builder window, expand the Study 4 > Solver Configurations > Solution 5 (sol5) > Stationary Solver 2 node, then click Segregated 1.
8
In the Settings window for Segregated, locate the General section.
9
From the Stabilization and acceleration list, choose Anderson acceleration.
10
In the Model Builder window, click Study 4.
11
In the Settings window for Study, type Study 4: Glycol and Water in the Label text field.
12
Locate the Study Settings section. Clear the Generate default plots checkbox.
13
In the Study toolbar, click  Compute.
14
In the Model Builder window, under Study 4: Glycol and Water > Solver Configurations > Solution 5 (sol5) click Solution Store 2 (sol6).
15
In the Settings window for Solution Store, type Vel = 1.0 m/s in the Label text field.
16
In the Model Builder window, click Solution 5 (sol5).
17
In the Settings window for Solution, type Vel = 1.15 m/s in the Label text field.
Plot the temperature for the glycol/water mixture to reproduce the plots in Figure 6.
Results
Temperature
1
In the Model Builder window, under Results click Temperature.
2
In the Settings window for 2D Plot Group, locate the Data section.
3
From the Dataset list, choose Study 4: Glycol and Water/Vel = 1.0 m/s (sol6).
4
In the Temperature toolbar, click  Plot.
5
From the Dataset list, choose Study 4: Glycol and Water/Vel = 1.15 m/s (sol5).
6
In the Temperature toolbar, click  Plot.
Create cut line datasets to evaluate the heat capacity throughout the chamber section of the apparatus. Create one line for each study case.
Cut Line 2D 1
1
In the Results toolbar, click  Cut Line 2D.
2
In the Settings window for Cut Line 2D, locate the Line Data section.
3
In row Point 1, set r to r_c*0.5.
4
In row Point 2, set r to r_c*0.5.
5
In row Point 2, set z to 1.
6
Locate the Data section. From the Dataset list, choose Study 3: Water/Solution 3 (sol3).
Cut Line 2D 2
1
Right-click Cut Line 2D 1 and choose Duplicate.
2
In the Settings window for Cut Line 2D, locate the Data section.
3
From the Dataset list, choose Study 4: Glycol and Water/Vel = 1.0 m/s (sol6).
Cut Line 2D 3
1
Right-click Cut Line 2D 2 and choose Duplicate.
2
In the Settings window for Cut Line 2D, locate the Data section.
3
From the Dataset list, choose Study 4: Glycol and Water/Vel = 1.15 m/s (sol5).
1D Plot Group 11
In the Results toolbar, click  1D Plot Group.
Line Graph 1
1
In the 1D Plot Group 11 toolbar, click  Line Graph.
2
In the Settings window for Line Graph, locate the Data section.
3
From the Dataset list, choose Cut Line 2D 1.
4
Locate the y-Axis Data section. In the Expression text field, type ht.Cp.
5
In the 1D Plot Group 11 toolbar, click  Plot.
6
Click to expand the Legends section. Select the Show legends checkbox.
7
From the Legends list, choose Manual.
8
In the table, enter the following settings:
Legends
Water
9
In the 1D Plot Group 11 toolbar, click  Plot.
Line Graph 2
1
Right-click Line Graph 1 and choose Duplicate.
2
In the Settings window for Line Graph, locate the Data section.
3
From the Dataset list, choose Cut Line 2D 2.
4
Locate the Legends section. In the table, enter the following settings:
Legends
Glycol/Water
5
In the 1D Plot Group 11 toolbar, click  Plot.
Line Graph 3
1
Right-click Line Graph 2 and choose Duplicate.
2
In the Settings window for Line Graph, locate the Data section.
3
From the Dataset list, choose Cut Line 2D 3.
4
Locate the Legends section. In the table, enter the following settings:
Legends
Glycol/Water, Vel = 1.15 m/s
5
In the 1D Plot Group 11 toolbar, click  Plot.
Heat Capacity, Chamber Cut Line
1
In the Model Builder window, click 1D Plot Group 11.
2
In the Settings window for 1D Plot Group, locate the Legend section.
3
From the Position list, choose Middle right.
4
Locate the Title section. From the Title type list, choose None.
5
In the Label text field, type Heat Capacity, Chamber Cut Line.
Compute the average mixture property values.
Surface Average 1
1
In the Results toolbar, click  More Derived Values and choose Average > Surface Average.
2
In the Settings window for Surface Average, locate the Data section.
3
From the Dataset list, choose Study 4: Glycol and Water/Vel = 1.0 m/s (sol6).
4
Select Domain 1 only.
5
Locate the Expressions section. In the table, enter the following settings:
Expression
Unit
Description
ht.rho
kg/m^3
Density
ht.Cp
J/(kg*K)
Heat capacity at constant pressure
ht.krr
W/(m*K)
Thermal conductivity, rr component
spf.mu
Pa*s
Dynamic viscosity
6
Click  Evaluate.
Store the average property values as parameters.
Global Definitions
Parameters 1
1
In the Model Builder window, under Global Definitions click Parameters 1.
2
In the Settings window for Parameters, locate the Parameters section.
3
In the table, enter the following settings:
Name
Expression
Value
Description
rhoC
1010[kg/m^3]
1010 kg/m³
Average constant density
CpC
3486[J/kg/K]
3486 J/(kg·K)
Average constant heat capacity
kC
0.574[W/m/K]
0.574 W/(m·K)
Average constant conductivity
muC
9.07e-4[Pa*s]
9.07E-4 Pa·s
Average constant viscosity
Finally compute the flow and heat in the test apparatus using the average values for the mixture properties.
Heat Transfer in Fluids (ht)
Fluid 1
1
In the Model Builder window, under Component 1 (comp1) > Heat Transfer in Fluids (ht) click Fluid 1.
2
In the Settings window for Fluid, locate the Heat Conduction, Fluid section.
3
From the k list, choose User defined. In the associated text field, type kC.
4
Locate the Thermodynamics, Fluid section. From the Fluid type list, choose Gas/Liquid.
5
From the ρ list, choose User defined. In the associated text field, type rhoC.
6
From the Cp list, choose User defined. In the associated text field, type CpC.
Turbulent Flow, k-ε (spf)
Fluid Properties 1
1
In the Model Builder window, under Component 1 (comp1) > Turbulent Flow, k-ε (spf) click Fluid Properties 1.
2
In the Settings window for Fluid Properties, locate the Fluid Properties section.
3
From the μ list, choose User defined. In the associated text field, type muC.
Add Study
1
In the Home toolbar, click  Add Study to open the Add Study window.
2
Go to the Add Study window.
3
Find the Studies subsection. In the Select Study tree, select General Studies > Stationary.
4
Click the Add Study button in the window toolbar.
5
In the Home toolbar, click  Add Study to close the Add Study window.
Study 5
Step 1: Stationary
1
In the Settings window for Stationary, locate the Values of Dependent Variables section.
2
Find the Initial values of variables solved for subsection. From the Settings list, choose User controlled.
3
From the Method list, choose Solution.
4
From the Study list, choose Study 3: Water, Stationary 2.
5
In the Model Builder window, click Study 5.
6
In the Settings window for Study, type Study 5: Glycol and Water, Constant Properties in the Label text field.
7
Locate the Study Settings section. Clear the Generate default plots checkbox.
8
In the Study toolbar, click  Compute.
Plot the temperature for the case with average values for the mixture properties.
Results
Temperature
1
In the Model Builder window, under Results click Temperature.
2
In the Settings window for 2D Plot Group, locate the Data section.
3
From the Dataset list, choose Study 5: Glycol and Water, Constant Properties/Solution 7 (sol7).
4
In the Temperature toolbar, click  Plot.
Compute the outlet temperature, the average pressure drop, and the average outlet density.
Point Evaluation 1
1
In the Results toolbar, click  Point Evaluation.
2
Select Point 6 only.
3
In the Settings window for Point Evaluation, locate the Expressions section.
4
In the table, enter the following settings:
Expression
Unit
Description
T


5
Locate the Data section. From the Dataset list, choose Study 3: Water/Solution 3 (sol3).
6
Click  Evaluate.
7
From the Dataset list, choose Study 4: Glycol and Water/Vel = 1.0 m/s (sol6).
8
Clicknext to  Evaluate, then choose New Table.
9
From the Dataset list, choose Study 4: Glycol and Water/Vel = 1.15 m/s (sol5).
10
Clicknext to  Evaluate, then choose New Table.
11
From the Dataset list, choose Study 5: Glycol and Water, Constant Properties/Solution 7 (sol7).
12
Clicknext to  Evaluate, then choose New Table.
Line Average 2
1
In the Results toolbar, click  More Derived Values and choose Average > Line Average.
2
Select Boundary 2 only.
3
In the Settings window for Line Average, locate the Expressions section.
4
In the table, enter the following settings:
Expression
Unit
Description
p


5
Locate the Data section. From the Dataset list, choose Study 3: Water/Solution 3 (sol3).
6
Clicknext to  Evaluate, then choose Table 2 - Point Evaluation 1.
7
From the Dataset list, choose Study 4: Glycol and Water/Vel = 1.0 m/s (sol6).
8
Clicknext to  Evaluate, then choose Table 3 - Point Evaluation 1.
9
From the Dataset list, choose Study 4: Glycol and Water/Vel = 1.15 m/s (sol5).
10
Clicknext to  Evaluate, then choose Table 4 - Point Evaluation 1.
11
From the Dataset list, choose Study 5: Glycol and Water, Constant Properties/Solution 7 (sol7).
12
Clicknext to  Evaluate, then choose Table 5 - Point Evaluation 1.
Line Average 3
1
In the Results toolbar, click  More Derived Values and choose Average > Line Average.
2
Select Boundary 11 only.
3
In the Settings window for Line Average, locate the Expressions section.
4
In the table, enter the following settings:
Expression
Unit
Description
ht.rho


5
Locate the Data section. From the Dataset list, choose Study 3: Water/Solution 3 (sol3).
6
Clicknext to  Evaluate, then choose Table 2 - Point Evaluation 1.
7
From the Dataset list, choose Study 4: Glycol and Water/Vel = 1.0 m/s (sol6).
8
Clicknext to  Evaluate, then choose Table 3 - Point Evaluation 1.
9
From the Dataset list, choose Study 4: Glycol and Water/Vel = 1.15 m/s (sol5).
10
Clicknext to  Evaluate, then choose Table 4 - Point Evaluation 1.
11
From the Dataset list, choose Study 5: Glycol and Water, Constant Properties/Solution 7 (sol7).
12
Clicknext to  Evaluate, then choose Table 5 - Point Evaluation 1.
