Journal Bearing with Cavitation
Introduction
Journal bearings are used to carry radial loads to, for example, support a rotating shaft.
A simple journal bearing consists of two rigid cylinders. The outer cylinder (bearing) wraps the inner rotating journal (shaft). Normally, the position of the journal center is eccentric with the bearing center. A lubricant fills the small annular gap or clearance between the journal and the bearing. The amount of eccentricity of the journal is related to the pressure that is generated in the bearing to balance the radial load. The lubricant is supplied through a hole or a groove and may or may not extend all around the journal.
If the bearing is not designed correctly, the gases dissolved in the lubricant can cause cavitation in the diverging clearance between the journal and the bearing. This happens because the pressure in the lubricant drops below the saturation pressure for the release of dissolved gases. The saturation pressure is normally similar to the ambient pressure. Cavitation can cause damage to the bearing components leading to premature failure.
The following model predicts the onset and extent of cavitation in the lubrication layer. The onset and extent of gaseous cavitation in a journal bearing determine the load that can be applied to the bearing.
This example is based on the Journal Bearing model, that does not include cavitation effects; review that model before beginning this one.
Model Definition
The governing equation, geometry, and boundary conditions are discussed for the Journal Bearing model.
With the cavitation feature enabled, the flow in the journal bearing is divided in two regions:
•
A full film region where the pressure varies but is limited from below by the cavitation pressure.
•
A cavitation region where only part of the volume is occupied by the fluid. Because of the presence of the gas in the void fraction, the pressure in this region is assumed to be constant and equal to the cavitation pressure.
Elrod and Adams derived a general form of the Reynolds equation by introducing a switch function, g, equal to 1 in the full film region (θ ≥ 1) and 0 in the cavitation region (θ < 1). This switch function allows for solving a single equation for both the full film and the cavitation region and leads to a modified version of the average velocity used in the Reynolds equation:
where the first and second terms on the right-hand side correspond to the average Couette and average Poiseuille velocities, respectively. This switch function sets the average Poiseuille velocity is to zero in the cavitation region.
Because the average Poiseuille velocity is set to zero in the cavitation region, the density needs to be a function of the pressure variable and could be defined as
A density that is not pressure dependent would lead to empty equations in the cavitation region since the pressure variable p would no longer be present in the governing equations.
Results and Discussion

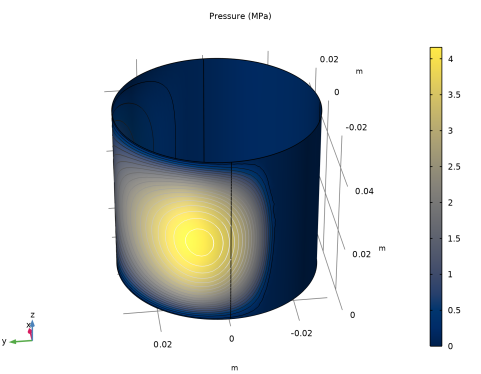

While the pressure is constant and equal to the cavitation pressure in the cavitation region, the computed pressure, pfilm, is negative in this region. The value of this negative pressure can be used to derive the volume fraction of fluid in the cavitation region. The actual or physical pressure, available in the postprocessing section as tff.p, is equal to the computed pressure in the full film region and equal to the cavitation pressure in the cavitation region. Figure 1 shows this physical pressure, tff.p. The maximum pressure is reached in a region closer to the minimum lubricant thickness.
Figure 1: Pressure distribution and pressure contours on the journal.

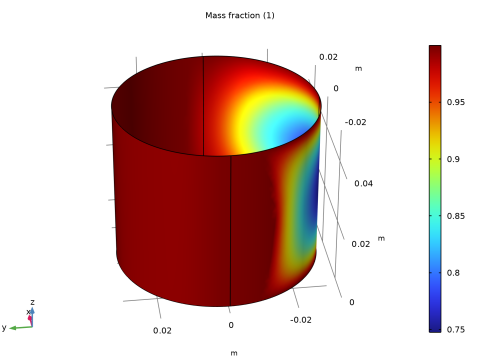

Figure 2 shows the fluid mass fraction. The mass fraction is equal to 1 in the full film region and less than 1 in the cavitation region (where only part of the volume is occupied by the fluid). It is computed as the minimum value between 1 and the ratio ρ/ρcav, where ρ and ρcav represent the fluid density and the density at the cavitation pressure, respectively.
Figure 2: Fluid mass fraction.
Application Library path: CFD_Module/Thin-Film_Flow/journal_bearing_cavitation
Modeling Instructions
From the File menu, choose New.
New
In the New window, click  Model Wizard.
Model Wizard
1
In the Model Wizard window, click  3D.
2
In the Select Physics tree, select Fluid Flow > Thin-Film Flow > Thin-Film Flow (tff).
3
Click Add.
4
Click  Study.
5
In the Select Study tree, select General Studies > Stationary.
6
Click  Done.
Global Definitions
Parameters 1
1
In the Model Builder window, under Global Definitions click Parameters 1.
2
In the Settings window for Parameters, locate the Parameters section.
3
In the table, enter the following settings:
Name
Expression
Value
Description
R
0.03[m]
0.03 m
Journal radius
H
0.05[m]
0.05 m
Journal height
c
0.03[mm]
3E-5 m
Clearance between the bearing and the journal
omega
1500/60*2*pi[rad/s]
157.08 rad/s
Journal angular velocity
Geometry 1
Cylinder 1 (cyl1)
1
In the Geometry toolbar, click  Cylinder.
2
In the Settings window for Cylinder, locate the Object Type section.
3
From the Type list, choose Surface.
4
Locate the Size and Shape section. In the Radius text field, type R.
5
In the Height text field, type H.
6
Click  Build All Objects.
Definitions
Variables 1
1
In the Definitions toolbar, click  Local Variables.
2
In the Settings window for Variables, locate the Variables section.
3
In the table, enter the following settings:
Name
Expression
Unit
Description
angle
atan2(y,x)[rad]
rad
Angle along circumference
th
c*(1+0.6*cos(angle))
m
Lubricant film thickness
u_b
-omega*R*sin(angle)
m/s
x-component of journal velocity
v_b
omega*R*cos(angle)
m/s
y-component of journal velocity
Thin-Film Flow (tff)
1
Click the  Show More Options button in the Model Builder toolbar.
2
In the Show More Options dialog, in the tree, select the checkbox for the node Physics > Advanced Physics Options.
3
Click OK.
4
In the Model Builder window, under Component 1 (comp1) click Thin-Film Flow (tff).
5
In the Settings window for Thin-Film Flow, locate the Physical Model section.
6
From the Fluid type list, choose Liquid with cavitation.
Fluid-Film Properties 1
1
In the Model Builder window, under Component 1 (comp1) > Thin-Film Flow (tff) click Fluid-Film Properties 1.
2
In the Settings window for Fluid-Film Properties, locate the Fluid Properties section.
3
From the μ list, choose User defined. In the associated text field, type 0.01[Pa*s].
4
Locate the Wall Properties section. In the hw1 text field, type th.
5
Locate the Base Properties section. From the vb list, choose User defined. Specify the vector as
u_b
x
v_b
y
0
z
Mesh 1
1
In the Model Builder window, under Component 1 (comp1) click Mesh 1.
2
In the Settings window for Mesh, locate the Physics-Controlled Mesh section.
3
In the table, clear the Use checkbox for Geometric Analysis, Detail Size.
4
Click  Build All.
Study 1
In the Study toolbar, click  Compute.
Set default units for result presentation.
Results
Preferred Units 1
1
In the Results toolbar, click  Configurations and choose Preferred Units.
2
In the Settings window for Preferred Units, locate the Units section.
3
Click  Add Physical Quantity.
4
In the Physical Quantity dialog, select General > Pressure (Pa) in the tree.
5
Click OK.
6
In the Settings window for Preferred Units, locate the Units section.
7
In the table, enter the following settings:
Quantity
Unit
Preferred unit
Pressure
Pa
MPa
8
Click  Apply.
Fluid Pressure (tff)
The default plot group shows the pressure field as a surface plot. Add a contour plot of the same quantity to reproduce the plot in Figure 1.
Surface 1
1
In the Model Builder window, expand the Fluid Pressure (tff) node, then click Surface 1.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type tff.p.
4
Locate the Coloring and Style section. From the Color table list, choose Cividis.
5
In the Fluid Pressure (tff) toolbar, click  Plot.
Contour 1
1
In the Model Builder window, right-click Fluid Pressure (tff) and choose Contour.
2
In the Settings window for Contour, locate the Expression section.
3
In the Expression text field, type tff.p.
4
Locate the Coloring and Style section. From the Color table list, choose GrayScale.
5
Clear the Color legend checkbox.
Fluid Pressure (tff)
1
In the Model Builder window, click Fluid Pressure (tff).
2
In the Settings window for 3D Plot Group, click to expand the Title section.
3
From the Title type list, choose Manual.
4
In the Title text area, type Pressure (MPa).
5
In the Fluid Pressure (tff) toolbar, click  Plot.
6
Click the  Zoom Extents button in the Graphics toolbar.
To see the bearing from different angles just click and drag in the Graphics window.
Mass Fraction
Reproduce Figure 2 by the following these steps.
1
In the Results toolbar, click  3D Plot Group.
2
In the Settings window for 3D Plot Group, type Mass Fraction in the Label text field.
Surface 1
1
In the Mass Fraction toolbar, click  Surface.
2
In the Settings window for Surface, click Replace Expression in the upper-right corner of the Expression section. From the menu, choose Component 1 (comp1) > Thin-Film Flow > Cavitation > tff.theta - Mass fraction - 1.
3
In the Mass Fraction toolbar, click  Plot.
