Angle Beam Nondestructive Testing
Introduction
Angle beam ultrasonic units are used for nondestructive testing (NDT) of solid objects, such as metal pipes. They are especially useful for detecting flaws in and around welding areas, such as pores, small cracks, lack of fusion, and so on. Angle beam NDT is often used where the straight beam testing struggles to find defects, for example, when the cracks are vertical and thin and thus not detectable because of small amount of reflection. The operating principle of angle beam NDT lies in the conversion of a longitudinal (compression) wave sent by the transducer into a refracted shear (transverse) wave in the test sample. The shear wave is then reflected by the flaws in the test object. Compared to longitudinal waves, shear waves have lower attenuation and shorter wavelength, which makes them capable of detecting smaller defects.
In this tutorial, the Elastic Waves, Time Explicit physics interfaces is used to model wave propagation in linear elastic media. The interface solves the linear elastic wave equation written in the velocity-strain form using the discontinuous Galerkin finite element method (dG-FEM) and an explicit time integration scheme. This approach is well suited for solving large-scale transient problems. The piezoelectric part of the transducer is modeled with the Piezoelectric Effect, Time Explicit multiphysics feature that couples the Elastic Waves, Time Explicit and the Electrostatics physics interfaces. The model takes advantage of a geometry assembly and a nonconforming mesh.
Model Definition
The angle beam transducers are designed to generate a refracted shear wave in the test sample that propagates at a certain angle to the sample surface, typically, from 40° to 70°. The angle or refraction depends on the material properties of the pair transducer wedge/test sample and the angle of incidence of the ultrasonic signal. The incident longitudinal wave that passes through the wedge with the speed cp1 results in refracted longitudinal and shear waves that propagate in the test sample with the speeds cp2 and cs2, respectively (see Figure 1). The angles of refraction are defined according to Snell’s law as
The first and second critical angles are those that yield β = 90° and γ = 90°, respectively. For the pair of plastic wedge with cp1 = 2080 m/s and aluminum test object with cp2 = 6200 m/s and cs2 = 3120 m/s, this yields first and second critical angles of about 19.5° and 44.7°, respectively. In this tutorial, the shear wave refraction angle is γ = 45°, which results in the angle of incidence α = 28°. The angle of incidence lies between the first and the second critical angles, and therefore a refracted longitudinal wave will skim along the surface of the test sample.

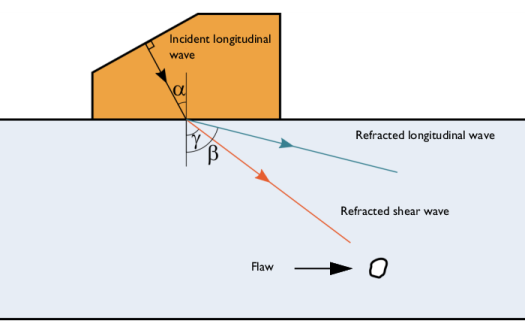

Figure 1: Wave refraction at the wedge/test sample boundary.
The angle beam NDT units usually operate at frequencies between 1 and 10 MHz. The unit is driven by voltage signal applied to the piezoelectric transducer. In this tutorial, the center frequency of the signal f0 = 1 MHz. The transducer is attached to the wedge via a matching layer. The transducer and the matching layer are half and one-quarter wavelength thick, respectively. The transducer is surrounded by a backing layer block (also called damping block) at the back. The main parts of the setup are shown in Figure 2.
The matching layer and the damping block materials should be chosen in such a way that the acoustic impedance of the former is close to that of the transducer, while the impedance of the latter is close to the geometric mean of those of the transducer and the wedge. That is,
.
Typical materials used for the matching and backing layers are alumina/epoxy or tungsten/epoxy composites. The desired acoustical properties are achieved by the amount of the alumina or tungsten powder in the composite. The elastic properties of such a two-phase composite may be defined based on the Devaney model (see Ref. 1). The properties of the angle beam unit components used in this model are listed in Table 1.
The NDT unit is put upon an aluminum test specimen that has a defect in the form of a zero-thickness fracture as shown in Figure 2.

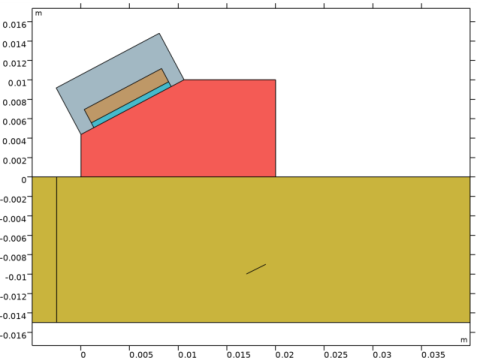

Figure 2: Angle beam NDT setup: test sample (yellow), wedge (orange), piezoelectric transducer (dark blue), matching (cyan) and backing (green) layers.
Table 1: Properties of the NDT unit.
Part
Material
Density,
kg/m3
Longitudinal wave speed,
m/s
Shear wave speed,
m/s
Transducer
PZT-5H
7500
4620
1750
Wedge
Acrylic plastic
1190
2080
1000
Matching layer
Alumina/Epoxy
2280
3400
1920
Damping block
Tungsten/Epoxy
6580
1500
775
Results and Discussion
The evolution of the signal traveling from the transducer to the defect in the test sample is illustrated in Figure 3. Note that the longitudinal and shear waves are separated: the former are shown in blue and the latter in orange. The longitudinal wave generated by the transducer travels through the wedge (t = 4 μs). Then the wave hits the surface of the test object and a refracted shear wave begins to propagate through it (t = 6 μs). The shear wave travels toward the defect (t = 8 μs), hits it and becomes reflected. The reflected wave travels back toward the testing unit (t = 12 μs).

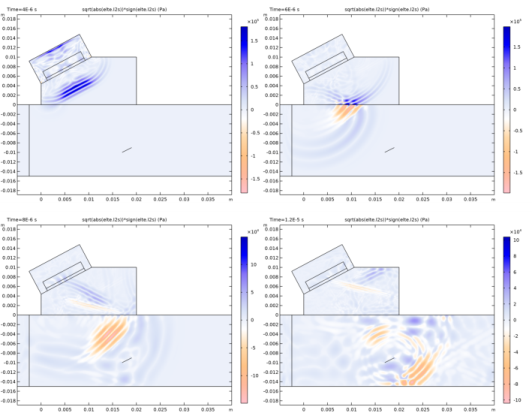

Figure 3: Wave profiles at t = 4, 6, 8, and 12 μs.
Figure 4 shows the voltage signal on the transducer terminal for the test sample with defect on top of the reference signal recorded when the inspected object has no defects. The signals zoomed around the time when the reflected wave reached the transducer are depicted in Figure 5. It is seen that the received signal slowly starts to deviate from the reference soon after t = 15 μs, while the main portion of the reflected signal arrives at the transducer after t = 17 μs.
Figure 4: Voltage signal on the transducer terminal for the test samples with (green) and without (blue) the defect.
Figure 5: Voltage signal zoomed around the arrival time of the reflected wave.
Notes About the COMSOL Implementation
Defect modeling
The defect considered in this model is a zero-thickness fracture which is modeled with the Fracture boundary condition available in the Elastic Waves, Time Explicit physics interface. This boundary condition implements the concept of an imperfectly bonded interface between two elastic domains (see Ref. 2 for the theoretical details). The properties of the fracture are given through the boundary stiffness which has the unit of stress per length. The case of zero boundary stiffness used in this model corresponds to an interior free surface.
Geometry and Mesh
The model geometry is an assembly, which makes the parts of the geometry separated from one another and connected via Identity Boundary Pairs. The nodes of the generated mesh elements do not have to match on either side for the pairs thus making the mesh nonconformal. For wave propagation problems, feasible results are achieved when the mesh resolves the wavelengths of the propagating waves. The wavelength, in its turn, depends on the speed of sound in the material. Thus materials with lower speed of sound require finer mesh than those with higher speed of sound. The use of a nonconformal mesh in this tutorial makes it possible to reduce the number of DOFs solved for in the model. In this model, the mesh resolves the wavelength of the shear waves in each material, and it follows from Table 1 that one mesh element in the transducer domain corresponds to at least two mesh elements in the damping block domain on the other side of the pair as seen in Figure 6. The same is valid for the wedge/test sample pair.
Figure 6: Model mesh.
References
1. R.A. Webster, “Passive materials for high frequency piezocomposite ultrasonic transducers,” PhD thesis, University of Birmingham, 2010.
2. M. Schoenberg, “Elastic wave behavior across linear slip interfaces,” J. Acoust. Soc. Am., vol. 65, issue 5, 1980.
Application Library path: Acoustics_Module/Ultrasound/angle_beam_ndt
Modeling Instructions
From the File menu, choose New.
New
In the New window, click  Model Wizard.
Model Wizard
1
In the Model Wizard window, click  2D.
2
Click  Done.
Geometry 1
1
In the Geometry toolbar, click Insert Sequence and choose Insert Sequence.
2
Browse to the model’s Application Libraries folder and double-click the file angle_beam_ndt_geom_sequence.mph.
3
In the Geometry toolbar, click  Build All.
Global Definitions
Geometry
1
In the Model Builder window, under Global Definitions click Parameters 1.
2
In the Settings window for Parameters, type Geometry in the Label text field.
Model Parameters
1
In the Home toolbar, click  Parameters and choose Add > Parameters.
2
In the Settings window for Parameters, locate the Parameters section.
3
Click  Load from File.
4
Browse to the model’s Application Libraries folder and double-click the file angle_beam_ndt_parameters.txt.
5
In the Label text field, type Model Parameters.
Create a voltage source given by a modulated Gaussian pulse with the center frequency f0.
Voltage Source
1
In the Home toolbar, click  Functions and choose Global > Analytic.
2
In the Settings window for Analytic, type Voltage Source in the Label text field.
3
In the Function name text field, type V0.
4
Locate the Definition section. In the Expression text field, type 100*exp(-((t - 2*T0)/(T0/2))^2)*sin(2*pi*f0*t).
5
In the Arguments text field, type t.
6
Locate the Units section. In the Function text field, type V.
7
In the table, enter the following settings:
Argument
Unit
t
s
8
Locate the Plot Parameters section. In the table, enter the following settings:
Plot
Argument
Lower limit
Upper limit
Fixed value
Unit
√
t
0
10*T0
0
s
9
Click  Create Plot.
Results
Voltage Source
1
In the Settings window for 1D Plot Group, type Voltage Source in the Label text field.
Load the voltage signal received by the transducer when testing a sample without any defects.
Global Definitions
Interpolation 1 (int1)
1
In the Home toolbar, click  Functions and choose Global > Interpolation.
2
In the Settings window for Interpolation, locate the Definition section.
3
From the Data source list, choose File.
4
Click  Browse.
5
Browse to the model’s Application Libraries folder and double-click the file angle_beam_ndt_no_defect_signal.txt.
Note that you can click Import to embed the imported file in the model.
6
Locate the Data Column Settings section. In the table, click to select the cell at row number 1 and column number 1.
7
In the Unit text field, type s.
8
In the table, click to select the cell at row number 2 and column number 1.
9
In the Name text field, type V_no_defect.
10
In the Unit text field, type V.
11
Locate the Interpolation and Extrapolation section. From the Extrapolation list, choose None.
12
Click  Create Plot.
Results
Terminal Voltage
In the Settings window for 1D Plot Group, type Terminal Voltage in the Label text field.
Function 1
1
In the Model Builder window, expand the Terminal Voltage node, then click Function 1.
2
In the Settings window for Function, click to expand the Legends section.
3
Select the Show legends checkbox.
4
From the Legends list, choose Manual.
5
In the table, enter the following settings:
Legends
Without defect
6
In the Terminal Voltage toolbar, click  Plot.
Create selections to simplify the model setup.
Definitions
Transducer
1
In the Definitions toolbar, click  Explicit.
2
Select Domain 6 only.
3
In the Settings window for Explicit, type Transducer in the Label text field.
4
Locate the Color section. From the Color list, choose Color 5.
Matching Layer
1
In the Definitions toolbar, click  Explicit.
2
Select Domain 7 only.
3
In the Settings window for Explicit, type Matching Layer in the Label text field.
4
Locate the Color section. From the Color list, choose Color 10.
Damping Block
1
In the Definitions toolbar, click  Explicit.
2
Select Domain 4 only.
3
In the Settings window for Explicit, type Damping Block in the Label text field.
4
Locate the Color section. From the Color list, choose Color 9.
Wedge
1
In the Definitions toolbar, click  Explicit.
2
Select Domain 5 only.
3
In the Settings window for Explicit, type Wedge in the Label text field.
4
Locate the Color section. From the Color list, choose Color 18.
Test Sample
1
In the Definitions toolbar, click  Explicit.
2
Select Domains 1–3 only.
3
In the Settings window for Explicit, type Test Sample in the Label text field.
4
Locate the Color section. From the Color list, choose Color 4.
Add a coordinate system to align the piezoelectric crystal in such a way that its Z-axis is perpendicular to the transducer surface.
Transducer Coordinate System
1
In the Definitions toolbar, click  Coordinate Systems and choose Base Vector System.
2
In the Settings window for Base Vector System, locate the Base Vectors section.
3
From the Out-of-plane index list, choose 2.
4
In the table, enter the following settings:

x
y
x1
cos(alpha)
sin(alpha)
x2
-sin(alpha)
cos(alpha)
5
Find the Simplifications subsection. Select the Assume orthonormal checkbox.
6
In the Label text field, type Transducer Coordinate System.
Create a view to zoom in on the area of the transducer and the defect.
View 2
1
In the Model Builder window, right-click Definitions and choose View.
2
In the Settings window for View, locate the View section.
3
Select the Lock axis checkbox.
Axis
1
In the Model Builder window, expand the View 2 node, then click Axis.
2
In the Settings window for Axis, locate the Axis section.
3
In the x minimum text field, type -0.005.
4
In the x maximum text field, type 0.04.
5
In the y minimum text field, type -0.012.
6
In the y maximum text field, type 0.012.
7
Click  Update.
The result should look like the one shown in Figure 2.
Now, proceed to setting up the physics. Note that the model geometry is an assembly and therefore each physics interface automatically imposes the Continuity boundary condition on all boundary pairs.
Add Physics
1
In the Home toolbar, click  Add Physics to open the Add Physics window.
2
Go to the Add Physics window.
3
In the tree, select Acoustics > Elastic Waves > Elastic Waves, Time Explicit (elte).
4
Click the Add to Component 1 button in the window toolbar.
Elastic Waves, Time Explicit (elte)
Elastic Waves, Time Explicit Model 1
1
In the Settings window for Elastic Waves, Time Explicit Model, locate the Linear Elastic Material section.
2
From the Specify list, choose Pressure-wave and shear-wave speeds.
Piezoelectric Material 1
1
In the Physics toolbar, click  Domains and choose Piezoelectric Material.
2
In the Settings window for Piezoelectric Material, locate the Domain Selection section.
3
From the Selection list, choose Transducer.
Low-Reflecting Boundary 1
1
In the Physics toolbar, click  Boundaries and choose Low-Reflecting Boundary.
2
Select Boundaries 1, 13, and 15 only.
Fracture 1
1
In the Physics toolbar, click  Boundaries and choose Fracture.
2
Select Boundary 8 only.
Elastic Waves, Time Explicit Model 1
In the Model Builder window, click Elastic Waves, Time Explicit Model 1.
Damping 1
1
In the Physics toolbar, click  Attributes and choose Damping.
2
In the Settings window for Damping, locate the Domain Selection section.
3
From the Selection list, choose Matching Layer.
4
Locate the Damping Settings section. From the Input parameters list, choose Damping ratios.
5
In the f1 text field, type 0.99*f0.
6
In the ζ1 text field, type 5e-2.
7
In the f2 text field, type 1.01*f0.
8
In the ζ2 text field, type 5e-2.
Damping 2
1
Right-click Damping 1 and choose Duplicate.
2
In the Settings window for Damping, locate the Domain Selection section.
3
From the Selection list, choose Damping Block.
Damping 3
1
Right-click Damping 2 and choose Duplicate.
2
In the Settings window for Damping, locate the Domain Selection section.
3
From the Selection list, choose Wedge.
4
Locate the Damping Settings section. In the ζ1 text field, type 1e-2.
5
In the ζ2 text field, type 1e-2.
Damping 4
1
Right-click Damping 3 and choose Duplicate.
2
In the Settings window for Damping, locate the Domain Selection section.
3
From the Selection list, choose Test Sample.
4
Locate the Damping Settings section. In the ζ1 text field, type 0.5e-2.
5
In the ζ2 text field, type 0.5e-2.
Piezoelectric Material 1
1
In the Model Builder window, under Component 1 (comp1) > Elastic Waves, Time Explicit (elte) click Piezoelectric Material 1.
2
In the Settings window for Piezoelectric Material, locate the Coordinate System Selection section.
3
From the Coordinate system list, choose Transducer Coordinate System (sys2).
Mechanical Damping 1
1
In the Physics toolbar, click  Attributes and choose Mechanical Damping.
2
In the Settings window for Mechanical Damping, locate the Damping Settings section.
3
From the Input parameters list, choose Damping ratios.
4
In the f1 text field, type 0.99*f0.
5
In the ζ1 text field, type 0.5e-2.
6
In the f2 text field, type 1.01*f0.
7
In the ζ2 text field, type 0.5e-2.
Add Physics
1
Go to the Add Physics window.
2
In the tree, select AC/DC > Electric Fields and Currents > Electrostatics (es).
3
Click the Add to Selection button in the window toolbar.
Electrostatics (es)
1
In the Settings window for Electrostatics, locate the Domain Selection section.
2
From the Selection list, choose Transducer.
Charge Conservation, Piezoelectric 1
1
Right-click Component 1 (comp1) > Electrostatics (es) and choose More Domains > Charge Conservation, Piezoelectric.
2
In the Settings window for Charge Conservation, Piezoelectric, locate the Domain Selection section.
3
From the Selection list, choose Transducer.
Ground 1
1
In the Physics toolbar, click  Boundaries and choose Ground.
2
Select Boundary 33 only.
Boundary Terminal 1
1
In the Physics toolbar, click  Boundaries and choose Boundary Terminal.
2
Select Boundary 32 only.
3
In the Settings window for Boundary Terminal, locate the Terminal section.
4
From the Terminal type list, choose Circuit.
Add Physics
1
Go to the Add Physics window.
2
In the tree, select AC/DC > Electrical Circuit (cir).
3
Click the Add to Component 1 button in the window toolbar.
4
In the Home toolbar, click  Add Physics to close the Add Physics window.
Electrical Circuit (cir)
Voltage Source 1 (V1)
1
In the Electrical Circuit toolbar, click  Voltage Source.
2
In the Settings window for Voltage Source, locate the Node Connections section.
3
In the table, enter the following settings:
Label
Node names
n
0
4
Locate the Device Parameters section. In the vsrc text field, type V0(t).
Resistor 1 (R1)
1
In the Electrical Circuit toolbar, click  Resistor.
2
In the Settings window for Resistor, locate the Node Connections section.
3
In the table, enter the following settings:
Label
Node names
p
1
n
2
4
Locate the Device Parameters section. In the R text field, type 2[ohm].
External I-Terminal 1 (termI1)
1
In the Electrical Circuit toolbar, click  External I-Terminal.
2
In the Settings window for External I-Terminal, locate the Node Connections section.
3
In the Node name text field, type 2.
4
Locate the External Terminal section. From the V list, choose Terminal voltage (es/term1).
Multiphysics
Piezoelectricity, Time Explicit 1 (pzete1)
In the Model Builder window, under Component 1 (comp1) right-click Multiphysics and choose Piezoelectricity, Time Explicit.
Define a Global Variable Probe that will record the voltage signal at the terminal.
Definitions
Global Variable Probe 1 (var1)
1
In the Definitions toolbar, click  Probes and choose Global Variable Probe.
2
In the Settings window for Global Variable Probe, type V_with_defect in the Variable name text field.
3
Click Replace Expression in the upper-right corner of the Expression section. From the menu, choose Component 1 (comp1) > Electrostatics > Terminals > es.V0_1 - Terminal voltage - V.
4
Locate the Expression section. Select the Description checkbox.
5
Click to expand the Table and Window Settings section.
Add the absorbing layers (sponge layers) used to truncate the computational domain.
Absorbing Layer 1 (ab1)
1
In the Definitions toolbar, click  Absorbing Layer.
2
Select Domains 1 and 3 only.
Now, set up the materials.
Add Material
1
In the Materials toolbar, click  Add Material to open the Add Material window.
2
Go to the Add Material window.
3
In the tree, select Built-in > Aluminum.
4
Click the Add to Component button in the window toolbar.
5
In the tree, select Built-in > Acrylic plastic.
6
Click the Add to Component button in the window toolbar.
Materials
Acrylic plastic (mat2)
1
In the Settings window for Material, locate the Geometric Entity Selection section.
2
From the Selection list, choose Wedge.
Add Material
1
Go to the Add Material window.
2
In the tree, select Built-in > Lead Zirconate Titanate (PZT-5H).
3
Click the Add to Component button in the window toolbar.
4
In the Materials toolbar, click  Add Material to close the Add Material window.
Materials
Lead Zirconate Titanate (PZT-5H) (mat3)
1
In the Settings window for Material, locate the Geometric Entity Selection section.
2
From the Selection list, choose Transducer.
Matching Material
1
In the Model Builder window, right-click Materials and choose Blank Material.
2
In the Settings window for Material, locate the Geometric Entity Selection section.
3
From the Selection list, choose Matching Layer.
4
Locate the Material Contents section. In the table, enter the following settings:
Property
Variable
Value
Unit
Property group
Pressure-wave speed
cp
cp_match
m/s
Pressure-wave and shear-wave speeds
Shear-wave speed
cs
cs_match
m/s
Pressure-wave and shear-wave speeds
Density
rho
rho_match
kg/m³
Basic
5
In the Label text field, type Matching Material.
Damping Material
1
Right-click Materials and choose Blank Material.
2
In the Settings window for Material, locate the Geometric Entity Selection section.
3
From the Selection list, choose Damping Block.
4
Locate the Material Contents section. In the table, enter the following settings:
Property
Variable
Value
Unit
Property group
Pressure-wave speed
cp
cp_damp
m/s
Pressure-wave and shear-wave speeds
Shear-wave speed
cs
cs_damp
m/s
Pressure-wave and shear-wave speeds
Density
rho
rho_damp
kg/m³
Basic
5
In the Label text field, type Damping Material.
Create a mesh. The mesh should be fine enough to resolve the shortest wavelength in each material. Note that the mesh element nodes lie misaligned on either side of the boundary pairs. As a result, the mesh elements adjacent to the pairs have different size as shown in Figure 6, which helps to reduce the number of DOFs in the model.
Mesh 1
Mapped 1
1
In the Mesh toolbar, click  Mapped.
2
In the Settings window for Mapped, locate the Domain Selection section.
3
From the Geometric entity level list, choose Domain.
4
Select Domains 6 and 7 only.
Distribution 1
1
Right-click Mapped 1 and choose Distribution.
2
Select Boundary 34 only.
3
In the Settings window for Distribution, locate the Distribution section.
4
In the Number of elements text field, type 3.
Size 1
1
In the Model Builder window, right-click Mapped 1 and choose Size.
2
In the Settings window for Size, locate the Geometric Entity Selection section.
3
From the Selection list, choose Transducer.
4
Locate the Element Size section. Click the Custom button.
5
Locate the Element Size Parameters section.
6
Select the Maximum element size checkbox. In the associated text field, type cs_pzt/f0/1.5.
Size 2
1
Right-click Mapped 1 and choose Size.
2
In the Settings window for Size, locate the Geometric Entity Selection section.
3
From the Selection list, choose Matching Layer.
4
Locate the Element Size section. Click the Custom button.
5
Locate the Element Size Parameters section.
6
Select the Maximum element size checkbox. In the associated text field, type cs_match/f0/1.5.
Free Triangular 1
In the Mesh toolbar, click  Free Triangular.
Size 1
1
Right-click Free Triangular 1 and choose Size.
2
In the Settings window for Size, locate the Geometric Entity Selection section.
3
From the Geometric entity level list, choose Domain.
4
From the Selection list, choose Damping Block.
5
Locate the Element Size section. Click the Custom button.
6
Locate the Element Size Parameters section.
7
Select the Maximum element size checkbox. In the associated text field, type cs_damp/f0/1.5.
Size 2
1
In the Model Builder window, right-click Free Triangular 1 and choose Size.
2
In the Settings window for Size, locate the Geometric Entity Selection section.
3
From the Geometric entity level list, choose Domain.
4
From the Selection list, choose Wedge.
5
Locate the Element Size section. Click the Custom button.
6
Locate the Element Size Parameters section.
7
Select the Maximum element size checkbox. In the associated text field, type cs_plast/f0/1.5.
Size 3
1
Right-click Free Triangular 1 and choose Size.
2
In the Settings window for Size, locate the Geometric Entity Selection section.
3
From the Geometric entity level list, choose Domain.
4
From the Selection list, choose Test Sample.
5
Locate the Element Size section. Click the Custom button.
6
Locate the Element Size Parameters section.
7
Select the Maximum element size checkbox. In the associated text field, type cs_al/f0/1.5.
8
Click  Build All.
Add Study
1
In the Home toolbar, click  Add Study to open the Add Study window.
2
Go to the Add Study window.
3
Find the Studies subsection. In the Select Study tree, select General Studies > Time Dependent.
4
Click the Add Study button in the window toolbar.
5
In the Home toolbar, click  Add Study to close the Add Study window.
Study 1
Step 1: Time Dependent
1
In the Settings window for Time Dependent, locate the Study Settings section.
2
In the Output times text field, type range(0, T0/5, 30*T0).
This setting saves the solution at times multiple to T0/5 in the whole computational domain. It only influences the stored solution (and thus the file size). The internal time steps taken by the solver are automatically controlled by COMSOL to fulfill the appropriate CFL condition.
On the other hand, the terminal voltage at the probe will be computed for each time step taken by the solver thus providing a much higher temporal resolution of the result.
3
In the Study toolbar, click  Compute.
All the plots are depicted in the previous sections of the documentation.
Results
Terminal Voltage
1
In the Model Builder window, under Results click Terminal Voltage.
2
In the Settings window for 1D Plot Group, click to expand the Title section.
3
From the Title type list, choose Manual.
4
In the Title text area, type Terminal Voltage (V).
Table Graph 1
1
Right-click Terminal Voltage and choose Table Graph.
2
In the Settings window for Table Graph, click to expand the Legends section.
3
Select the Show legends checkbox.
4
From the Legends list, choose Manual.
5
In the table, enter the following settings:
Legends
With defect
6
In the Terminal Voltage toolbar, click  Plot.
Pressure and Shear Waves
1
In the Results toolbar, click  2D Plot Group.
2
In the Settings window for 2D Plot Group, type Pressure and Shear Waves in the Label text field.
3
Locate the Data section. From the Time (s) list, choose 1.2E-5.
Surface 1
1
Right-click Pressure and Shear Waves and choose Surface.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type sqrt(abs(elte.I2s))*sign(elte.I2s).
4
Locate the Coloring and Style section. From the Color table list, choose Twilight.
5
From the Scale list, choose Linear symmetric.
6
In the Pressure and Shear Waves toolbar, click  Plot.
Appendix — Geometry Modeling Instructions
From the File menu, choose New.
New
In the New window, click  Model Wizard.
Model Wizard
1
In the Model Wizard window, click  2D.
2
Click  Done.
Global Definitions
Parameters 1
1
In the Model Builder window, under Global Definitions click Parameters 1.
2
In the Settings window for Parameters, locate the Parameters section.
3
Click  Load from File.
4
Browse to the model’s Application Libraries folder and double-click the file angle_beam_ndt_geom_sequence_parameters.txt.
Geometry 1
Polygon 1 (pol1)
1
In the Geometry toolbar, click  Polygon.
2
In the Settings window for Polygon, locate the Coordinates section.
3
In the table, enter the following settings:
x (m)
y (m)
0
0
W
0
W
H
L*cos(alpha)
H
0
H-L*sin(alpha)
4
Click  Build Selected.
Rectangle 1 (r1)
1
In the Geometry toolbar, click  Rectangle.
2
In the Settings window for Rectangle, locate the Size and Shape section.
3
In the Width text field, type D.
4
In the Height text field, type H_pzt+H_match.
5
Locate the Position section. In the x text field, type (L-D)/2*cos(alpha).
6
In the y text field, type H-(L+D)/2*sin(alpha).
7
Locate the Rotation Angle section. In the Rotation text field, type alpha.
8
Click to expand the Layers section. In the table, enter the following settings:
Layer name
Thickness (m)
Layer 1
H_match
Extract 1 (extract1)
1
In the Geometry toolbar, click  Extract.
2
In the Settings window for Extract, locate the Entities or Objects to Extract section.
3
From the Geometric entity level list, choose Domain.
4
On the object r1, select Domain 2 only.
5
From the Input object handling list, choose Create remainder object.
Rectangle 2 (r2)
1
In the Geometry toolbar, click  Rectangle.
2
In the Settings window for Rectangle, locate the Size and Shape section.
3
In the Width text field, type L.
4
In the Height text field, type 3.5*H_pzt.
5
Locate the Position section. In the y text field, type H-L*sin(alpha).
6
Locate the Rotation Angle section. In the Rotation text field, type alpha.
7
Click  Build Selected.
Difference 1 (dif1)
1
In the Geometry toolbar, click  Booleans and Partitions and choose Difference.
2
Select the object r2 only.
3
In the Settings window for Difference, locate the Difference section.
4
Click to select the  Activate Selection toggle button for Objects to subtract.
5
Select the objects extract1(1) and extract1(2) only.
6
Select the Keep objects to subtract checkbox.
7
Click  Build Selected.
Partition Edges 1 (pare1)
1
In the Geometry toolbar, click  Booleans and Partitions and choose Partition Edges.
2
On the object pol1, select Boundary 3 only.
3
In the Settings window for Partition Edges, locate the Positions section.
4
From the Type of specification list, choose Vertex projection.
5
On the object extract1(2), select Points 1 and 3 only.
6
Click  Build Selected.
Rectangle 3 (r3)
1
In the Geometry toolbar, click  Rectangle.
2
In the Settings window for Rectangle, locate the Size and Shape section.
3
In the Width text field, type W_ts.
4
In the Height text field, type H_ts.
5
Locate the Position section. In the x text field, type -W_ts/10.
6
In the y text field, type -H_ts.
7
Locate the Layers section. In the table, enter the following settings:
Layer name
Thickness (m)
Layer 1
H_ts/2
8
Clear the Layers on bottom checkbox.
9
Select the Layers to the right checkbox.
10
Select the Layers to the left checkbox.
11
Click  Build Selected.
12
Click the  Zoom Extents button in the Graphics toolbar.
Polygon 2 (pol2)
1
In the Geometry toolbar, click  Polygon.
2
In the Settings window for Polygon, locate the Coordinates section.
3
In the table, enter the following settings:
x (m)
y (m)
0.017
-0.01
0.019
-0.009
Union 1 (uni1)
1
In the Geometry toolbar, click  Booleans and Partitions and choose Union.
2
Select the objects pol2 and r3 only.
3
In the Settings window for Union, click  Build Selected.
Form Union (fin)
1
In the Model Builder window, under Component 1 (comp1) > Geometry 1 click Form Union (fin).
2
In the Settings window for Form Union/Assembly, locate the Form Union/Assembly section.
3
From the Action list, choose Form an assembly.
4
Select the Create imprints checkbox.
5
Click  Build Selected.
