Wetted Wall
Use this
node to represent a solid wall along which the contact angles between the separating interfaces and the wall should be prescribed.
Wetted Wall
Enter values or expressions for the contact angles for the three interfaces types:
•
The
Contact angle of interface from phase A to phase C
θ
α
.
•
The
Contact angle of interface from phase B to phase C
θ
β
.
•
The
Contact angle of interface from phase A to phase B
θ
γ
.

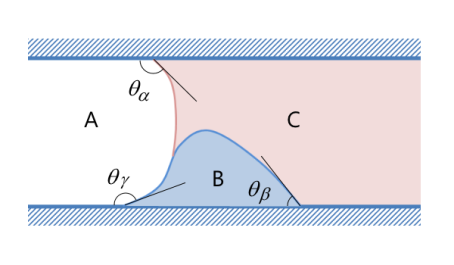

The definition of the contact angles with respect to the wall are shown in the figure below.
Figure 5-1:
Definitions of the contact angels in the Wetted Wall feature of the Ternary Phase Field interface.
