Modifying the SOLIDWORKS®Geometry from Within the COMSOL® Model
1
In the Settings window for LiveLink for SOLIDWORKS, click to expand the Parameters in CAD Package section.
As you can see, the table contains a dimension, D5@Sketch1, which is part of the SOLIDWORKS model. This dimension was selected to be linked to COMSOL in SOLIDWORKS and saved in the SOLIDWORKS file. Such linked dimensions are retrieved and appear in the CAD name column of the table, when you click the Synchronize button. The corresponding entry in the COMSOL name column, the parameter LL_D5_Sketch1, is a global parameter that is generated automatically in the COMSOL model. When it is created during synchronization, LL_D5_Sketch1 is assigned the current value of the corresponding SOLIDWORKS dimension. This value, 12.5 mm, is displayed in the COMSOL value column.
Global parameters in a COMSOL model allow you to parameterize settings and can be controlled by the parametric solver to perform parametric sweeps. Thus, by linking SOLIDWORKS dimensions to COMSOL global parameters, the parametric solver can automatically update and synchronize the geometry for each new value in a sweep. Here you can manually change the parameter value and synchronize.
2
In the Model Builder tree, expand Global Definitions , then click the Parameters  node.
3
In the Settings window for Parameters change the value for the parameter LL_D5_Sketch1. Enter 8[mm] in the Expression column.
4
Under the Geometry 1 node, click the LiveLink for SOLIDWORKS 1 (cad1)  node.
Note that the new parameter value is displayed in the table.
5
Click the Synchronize button.

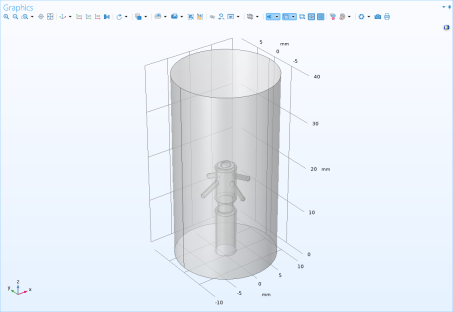

The geometry now changes according to the value of the global parameter LL_D5_Sketch1 before transferring from SOLIDWORKS to COMSOL. The change affected the position of the counter electrode (thin waist) on the pacemaker.
