Adding a LiveLink Node to the Geometry
1
In the Home toolbar click LiveLink
and choose LiveLink for
Solid Edge.
2
In the Settings window for LiveLink for
Solid Edge click the Synchronize button:

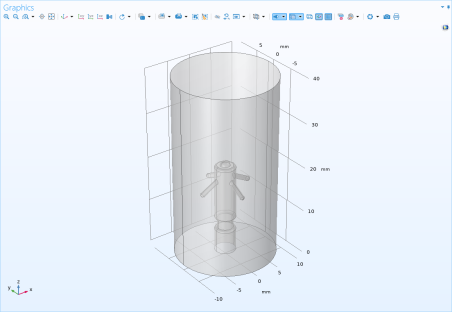

By this action you transfer the geometry of the pacemaker electrode from
Solid Edge to COMSOL.
3
Click the Transparency
button in the Graphics toolbar.
and choose LiveLink for
button in the Graphics toolbar.
