Importing the Geometry
This tutorial uses the wheel rim geometry that appeared in the previous example. Make sure that the CAD Import Module geometry kernel is used.
1
In the Model Builder window, under Component 1 (comp1) click Geometry 1.
2
In the Settings window for Geometry, from the Geometry representation list, choose CAD kernel.
3
In the Home toolbar click Import .
4
In the Settings window for Import click the Browse button.
5
In your COMSOL installation directory navigate to the folder applications/LiveLink_for_Inventor/Tutorials,_CAD_Import and double click the file wheel_rim.x_b.
6
Click Import.

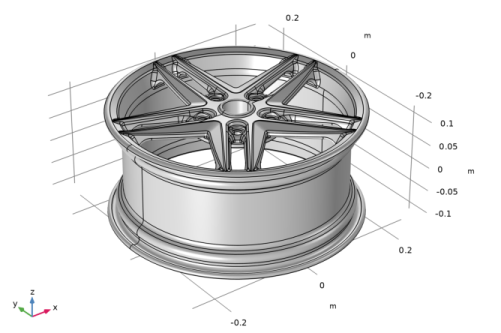

As soon as the import is done the geometry appears in the Graphics window.
