Adding a LiveLink Node to the Geometry
1
In the Home toolbar click LiveLink and choose LiveLink for PTC Creo Parametric.
2
In the Settings window for LiveLink for PTC Creo Parametric click the Synchronize button:
By this action you transfer the geometry of the pacemaker electrode from PTC Creo Parametric to COMSOL.
3

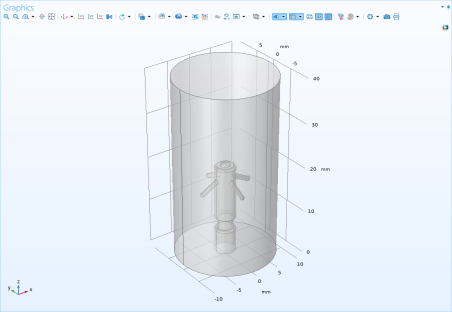

Click the Transparency button in the Graphics toolbar.
