Deleting Holes
To create a domain inside the enclosure we need the imported objects to form a watertight structure. A first step in achieving this is to apply the Delete Holes operation that can find and delete cylindrical holes in solid objects.
Note: A geometry object that contains more than one domain is a nonmanifold object for which defeaturing operations, such as deleting holes, are not supported. Thus it is recommended to use the defeaturing tools before computing the union of the imported objects.
1
In the Geometry toolbar, click  Defeaturing and Repair and choose  Delete Holes.
2

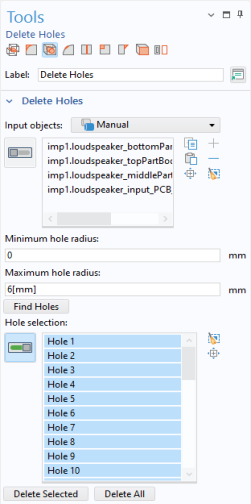

In the Tools window all objects already appear in the Input objects list, and you can enter 6[mm] in the Maximum hole radius text field.
3
Click Find Holes.
The tool found 36 holes, which appear in the Hole selection list, and they are also highlighted on the geometry.












4
Click Delete All to remove all holes.

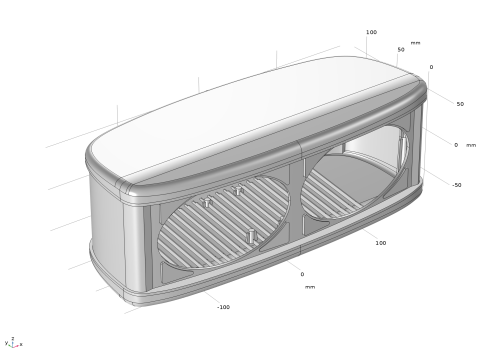

The holes are now deleted, and a Delete Holes 1 (dho1) node is inserted into the geometry sequence.
