Adding a LiveLink Node to the Geometry
1
In the Home toolbar click LiveLink and choose LiveLink for AutoCAD
.
2
In the Settings window for LiveLink for AutoCAD, click the Synchronize button:

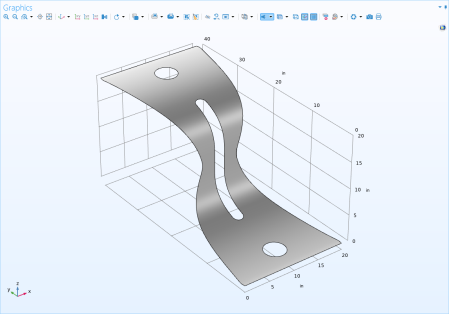

By this action you transfer the geometry of the foil wire from AutoCAD to COMSOL.
.
