Multiphysics
Now add the Nonisothermal Flow multiphysics feature to couple the Heat Transfer in Solids and Fluids and Laminar Flow interfaces. By doing this, you ensure in particular that the velocity field computed by the Laminar Flow interface is used by the Fluid 1 feature in the Heat Transfer interface. In addition, the temperature dependence of the material properties in the flow interface is then defined from the temperature field computed by the Heat Transfer interface.
1
In the Model Builder window, right-click on Component 1 (comp1) and select Add Multiphysics
.
2

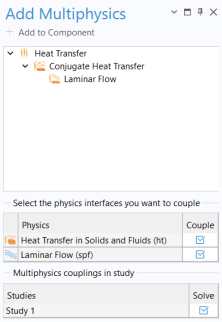

Go to the Add Multiphysics window. In the tree, select Heat Transfer > Conjugate Heat Transfer > Laminar Flow.
3
Click Add to Component
. Close the Add Multiphysics window.
.
