Global Definitions
Load the model parameters from a text file.
Parameters
1

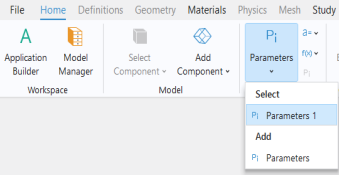

In the Home toolbar click Parameters  and select Parameters 1 .
Note: On Linux and Mac, the Home toolbar refers to the specific set of controls near the top of the Desktop.
2
In the Settings window for Parameters locate the Parameters section. Click Load from File .
3
In the application library folder Fuel_Cell_and_Electrolyzer_Module\Fuel_Cells on your computer, double-click the file fuel_cell_cathode_parameters.txt to import it to the Parameters table. Note that the location of the files used in this exercise may vary depending on the installation. For example, if the installation is on your hard drive, the file path might be similar to C:\Program Files\COMSOL\COMSOL64\applications\.
