Global Definitions
Load the parameter values to be used in the model from a parameter file.
Parameters
1
In the Home toolbar click Parameters and select Parameters 1 .
Note: On Linux and Mac, the Home toolbar refers to the specific set of controls near the top of the Desktop.
2
In the Settings window locate the Parameters section.
3
Click Load from File .
4
Browse to the file decorative_plating_parameters.txt in the application library folder on your computer, applications\Electrodeposition_Module\Tutorials. Double-click to add or click Open.
Note: The location of the file used in this exercise varies based on the installation of COMSOL Multiphysics. For example, if the installation is on your hard drive, the file path might be similar to C:\Program Files\COMSOL\COMSOL64\Multiphysics\applications\.

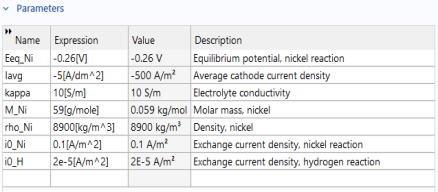

The parameters are added to the table as in this figure:
