Study 1
The problem is now ready for solving. Use a parametric sweep to solve the problem for various sweep rates.
Parametric Sweep
1
In the Study toolbar, click Parametric Sweep .
2

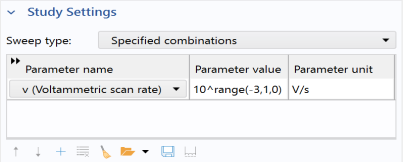

Under Study Settings in Parametric Sweep Settings window, click the Add button under the table. In the Parameter name column, select v (Voltammetric scan rate) from the list that appears.
3
In the Parameter value column enter (10^range(-3,1,0))[V/s].
4
In the Study toolbar click Compute .
