Geometry 1
Now create the geometry by using a rectangle and a circle.
Rectangle 1
1
In the Model Builder right-click Geometry 1 and choose Rectangle .
2
In the Settings window for Rectangle under Size:
-
In the Width text field, enter W.
-
In the Height text field, enter L.
3
Click the Build Selected button and, if required, in the Graphics toolbar the Zoom Extents button .
Circle 1
1
In the Model Builder right-click Geometry 1 and choose Circle .
-

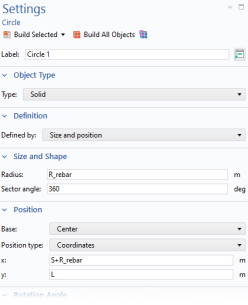

In the Settings window for Circle, under Size and Shape, enter R_rebar in the Radius text field.
2
Under Position:
-
In the x text field, enter S+R_rebar.
-
In the y text field, enter L.
3
Click the Build Selected button .
Difference 1
1
In the Model Builder, right-click Geometry 1 and choose Booleans and Partitions > Difference .
2
Select the object r1 (the rectangle). In the Graphics window, click r1 and Add  to add it to the Objects to add list in the Settings window for Difference.
3

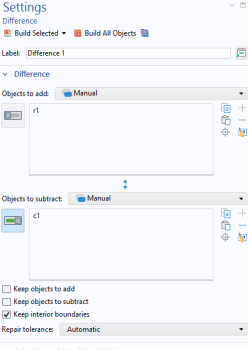

In the Settings window for Difference locate the Difference section.
4
Under Objects to subtract, click the Active button.
5
Select the object c1 only (the circle) using the same method as described for the rectangle.
6
Click the Build All button . The geometry should match Figure 4.
