Definitions
Create interpolation functions for the electrolyte conductivity and oxygen diffusivity as functions of the pore saturation level. Load the data from text files.
Interpolation 1
1
In the Home toolbar click Functions and choose Interpolation .
2
In the Model Builder under Definitions, click Interpolation 1 .
3

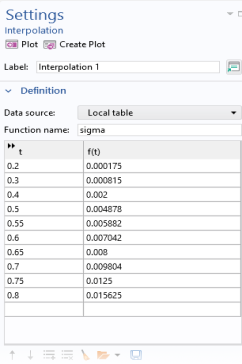

In the Settings window for Interpolation, locate the Definition section and choose File from the Data source list.
4
Click Browse and go to the application library folder, Corrosion Module > Cathodic Protection. Double-click the file cathodic_protection_in_concrete_sigma.txt.
5
Click Import.
6
In the Settings window for Interpolation in the Function name text field, enter sigma (replace the default).
7
Locate the Units section. In the Function text field, enter S/m.
8
Click the Plot button .
The plot should match this figure:
Interpolation 2
Create a second interpolation function in the same way.
1
In the Home toolbar click Functions and choose Local Interpolation .
2
In the Model Builder click Interpolation 2 .
3
In the Settings window for Interpolation locate the Definition section and choose File from the Data source list.
4
Click Browse and go to the application library folder, Corrosion Module > Cathodic Protection. Double-click the file cathodic_protection_in_concrete_D_O2.txt.
5
Click Import
6
In the Settings window for Interpolation in the Function name text field, enter D_O2.
7
Locate the Units section. In the Function text field, enter m^2/s.
8
Click the Plot button
The plot should match this figure:
