Operating System Methods
Operating system methods are used for accessing operating system information and commands from an application.
Name
Syntax
Description
executeOSCommand
String executeOSCommand(String command, String... params)
Executes the OS command with the given command (full path) and parameters. Execution times out after a default 180 seconds. Returns everything the process printed to its out stream as a string. When applicable, the command is run server side.
executeOSCommand
String executeOSCommand(String command, int timeoutSec, String params...)
Executes the OS command with the given command (full path) and parameters. Returns everything the process printed to its out stream as a string. The execution is forcibly stopped after timeoutSec seconds if the command has not finished. To disable the timeout functionality, timeoutSec value 0 can be used. When applicable, the command is run server side.
fileOpen
fileOpen(String name)
Opens the file represented by name with the associated program on the client. Also see the section “Example code”.
getUser
String username = getUser()
Returns the username of the user that is running the application. If the application is not run from COMSOL Server, then the value of the preference setting General>Username>Name is returned.
openURL
openURL(String url)
Opens a URL in the default browser on the client.
playSound
playSound(String name)
Plays the sounds in the given file on the client. Only .wav files are supported; no external libraries are required.
playSound
playSound(double hz, int millis)
Plays a signal at a given frequency hz and with given duration millis in milliseconds on the client.
Example Code
The line of code below plays one of the sounds available in the data/sounds folder of the COMSOL installation and has been embedded in the application and stored in the Sounds library.
playSound("embedded:///success_1.wav");
In the command sequence of a form object, this is equivalent to selecting a sound node under Libraries and clicking Run.
The line of code below opens a PDF file embedded in the application and stored in the File library.
fileOpen("embedded:///li_ion_battery_impedance.pdf");

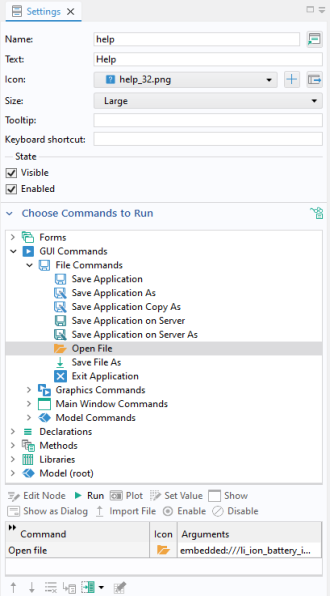

In the command sequence of a form object, this is equivalent to selecting an Open File node under GUI Commands > File Commands and clicking Run, as shown in the figure below.
This line of code opens the COMSOL home page in the default browser:
openURL("www.comsol.com");
This line of code runs an application by means of an OS command:
executeOSCommand("C:\\COMSOL64\\Multiphysics\\bin\\win64\\comsol.exe",     "-run", "C:\\work\\tubular_reactor.mph");
