Study 2 — Column Design
1
In the Model Builder, click Study 2 .
2
In the Settings window for Study 2, type Column Design in the Label text field.
3
Locate the Study Settings section. Clear the Generate default plots checkbox. To investigate the effect of column height, use a Parametric Sweep feature.
4
In the Study toolbar, click Parametric Sweep .
Parametric Sweep
1
In the Settings window for Parametric Sweep, locate the Study Settings section.
2
Click the Add  button.
3

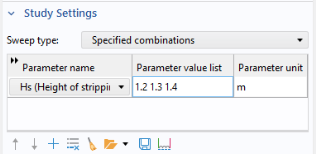

In the table, from the list of parameters, select Hs the stripping section height parameter, and enter three different heights for the stripping section as 1.2,1.3, and 1.4 meter.
4
In the Study toolbar, click Compute .
