Generate Space-Dependent Model
After studying the ethanol–water equilibrium curve, use it to design a distillation column to purify ethanol up to 85 percent. To do this, add a Generate Space Dependent Model feature to export all the setting in 0D component to a 1D component.
1
On the Reaction Engineering toolbar, click Generate Space-Dependent Model
.
2

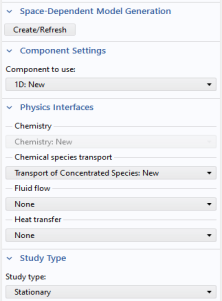

In the Settings window for Generate Space-Dependent Model
, locate the Component Settings section.
3
From the Component to use list, choose 1D: New.
4
Locate the Physics Interfaces section. Find the Chemical species transport subsection. From the list, choose Transport of Concentrated Species: New.
5
In the Space-Dependent Model Generation section. Click Create/Refresh.
.
