Equilibrium Calculation
Now, use the thermodynamic system to define an equilibrium function. This will be used to visualize the phase envelope of the coolant mixture.
1
In the Model Builder window, under  Global Definitions >  Thermodynamics right-click  Vapor-Liquid System 1 (pp1) and choose  Equilibrium Calculation.
1
Go to the Select Species window.
2
Click  Add All.
3
Click  Next in the window toolbar.
4
Go to the Equilibrium Specifications window.
5
From the Amount base unit list, choose mol.
Specify the equilibrium conditions. It is possible to create different equilibrium diagrams such as T-x, h-x, P-x, x-y, and so on using two equilibrium conditions. These available conditions are: Temperature, Pressure, Phase fraction, Enthalpy, Entropy, Energy, Density and Volume.
6
Find the Equilibrium conditions subsection. From the First condition list, choose Pressure.
7
From the Second condition list, choose Phase fraction.
8
Click  Next in the window toolbar.
9

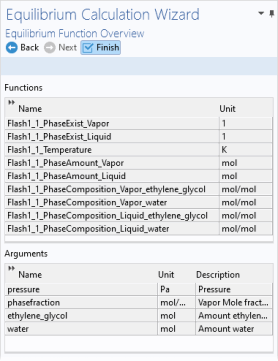

Go to the Equilibrium Function Overview window. The functions to be created and their arguments are now displayed. Note especially Flash1_1_Temperature. This equilibrium function will be used to plot the phase envelope
10
Click  Finish in the window toolbar. This creates an Equilibrium Calculation node in the Model Builder window.
You can now create an  Analytic function to plot the phase envelope.
