Global Definitions — Parameters
The first task is to define a parameter for the inlet velocity.
1
In the Home toolbar click Parameters
and select Parameter 1
.
Note:
On Linux and Mac, the Home toolbar refers to the specific set of controls near the top of the Desktop.
2

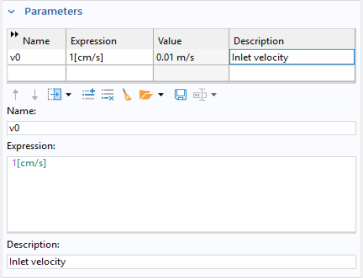

In the Settings window for Parameters locate the Parameters section. In the table enter the following settings:
-
In the Name text field, enter
v0
.
-
In the Expression text field, enter
1[cm/s]
.
-
In the Description text field, enter
Inlet velocity
.
and select Parameter 1
.
