Global Definitions
Parameters
Some parameters were loaded with the geometry sequence into the Parameters 1 node.
1
In the Model Builder window, under Global Definitions click Parameters 1.
2
In the Settings window for Parameters, type Geometry Parameters in the Label text field to rename it.
Add some more parameters from a text file.
1

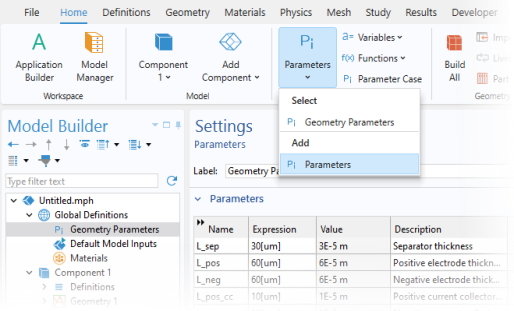

In the Home toolbar, click  Parameters and choose Add > Parameters.
2

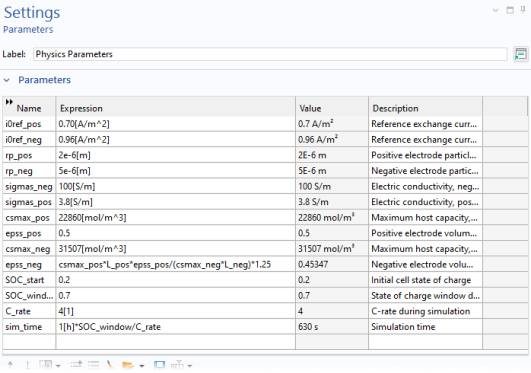

In the Settings window for the new Parameters node, type Physics Parameters in the Label text field.
3
Locate the Parameters section. Click  Load from File.
4
Browse to the model’s Application Libraries folder and double-click the file pouch_cell_utilization_physics_parameters.txt.
