Derived Values
Next, evaluate the coil inductance and resistance and compare them respectively to the inductance estimated from the total magnetic energy and to the resistance defined using Ohm’s law.
1
In the Results toolbar click Global Evaluation
.
2

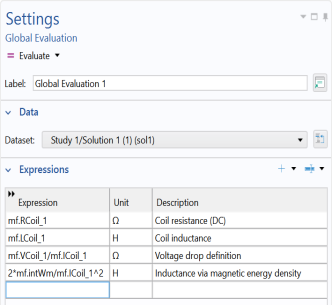

In the Settings window for Global Evaluation, locate the Expression section.
3
In the table, enter the following settings:
4
Click the Evaluate
button.

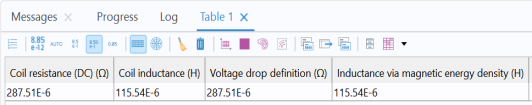

Compare the results in the Table window. The results could be different depending on the format settings above the table.
.
button.
