Mesh 1
The infinite elements region requires a swept mesh to maintain a good effective element quality despite the steep radial scaling. This meshing method should be enabled by default.
1
In the Model Builder click Mesh 1
.
2

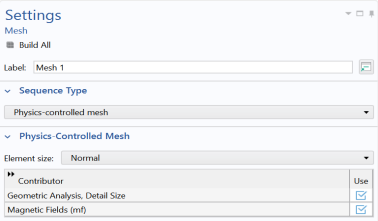

In the Settings window for Mesh 1, make sure that Physics-Controlled Mesh is selected.
3
Make sure that Magnetic Fields is selected in the Contributor list.
In the Mesh toolbar click Build MeshÂ
.
.
.
