User-Defined Material 3
The core material is not included in the material library so it is entered as a user-defined material.
1
In the Materials toolbar click Blank Material .
2
In the Settings window for Material, in the Label text field, type Core.
3
Under Geometric Entity Selection select Core from the Selection list.
4

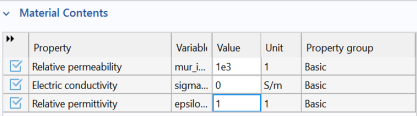

Under Material Contents in the table, enter these settings in the Value column:
-
1e3 for the Relative permeability
-
0 for the Electric conductivity
-
1 for the Relative permittivity
The node sequence under Materials should match the figure.
