Comparison of Different Hydrodynamic Bearings
Introduction
This example compares the load bearing abilities of different hydrodynamic bearings. The simulation is performed using the Rotordynamics Module’s Hydrodynamic Bearing interface. This interface solves the Reynolds equation to compute the pressure developed in a thin fluid film for different bearing types. The bearings included in this example are of cylindrical, elliptical, split-halves, and multilobe type (2, 3, and 4 lobes).
Model Definition
Eight bearings are compared: one each of cylindrical, elliptical, and split-halves type, and five different multilobe bearings. The latter are one two-lobe bearing and two three-lobe and four-lobe bearings. The two three-lobe bearings differ from each other in their relative orientation with respect to the applied load direction, as do the two four-lobe bearings.
The journals rotate inside the bearing with an angular speed of Ω (rad/s). The static position of the journal is obtained such that the net force due to the fluid film in the horizontal direction is zero whereas that in the vertical direction balances the journal weight, W.
The bearing configuration is shown in Figure 1 below.
Figure 1: Bearing configuration. Top row: Cylindrical, elliptical, split halves, two-lobe. Bottom row: Three-lobe (LOP), three-lobe (LBP), four-lobe (LOP), four-lobe (LBP).
On the fluid side, the parameters needed for the computation are the dynamic viscosity, the density at cavitation pressure, and the compressibility. The fluid parameters, whose values are summarized in Table 1, are close to those of lubricating oils used in real bearings.
Table 1: Fluid properties.
Property
value
Density ρ
1000 kg/m3
Dynamic viscosityμ
0.072 Pa·s
Compressibility β
10-7 Pa-1
Bearing Data
The maximum and minimum clearance, Cmax and Cmin, respectively, of all the bearings are set to the same values in order to make them equivalent.
The initial clearance, hb, assuming that the journal is located at the center of the bearing, is listed in Table 2.
Table 2: Initial FILM thickness.
Bearing
Initial film thickness
Cylindrical
 hb = C
Elliptical
Split halves
Multilobe
The objective is to obtain various parameters in Table 2 for different bearings by setting maximum and minimum values to Cmax and Cmin, respectively. The following sections provide these expressions.
Cylindrical Bearing
Because the initial thickness is uniform, the best choice of C for the cylindrical bearing is C = (Cmax + Cmin)/2.
Elliptical Bearing
The maximum and minimum clearance Cmax and Cmin are known.
Split-halves Bearing
For split-halves bearings, Cmin = C − d, Cmax = C + d, from which one finds C = (Cmax + Cmin)/2 and d = (Cmax − Cmin)/2.
Multilobe Bearings
For multilobe bearings, Cmax = C + d and Cmin = C + d cos(π/N).
Hence, it follows that C = (Cmin − cos(π/N)Cmax)/(1 − cos(π/N)), and d = (Cmax − Cmin)/(1 − cos(π/N)).
Results and Discussion

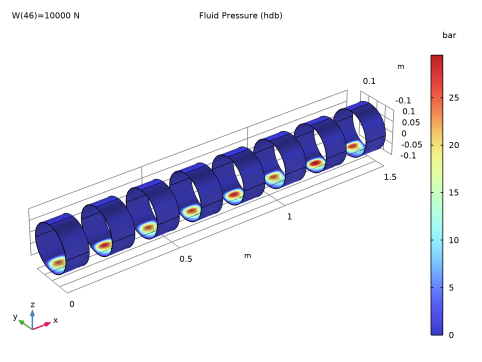

Figure 2 below shows the fluid pressure profile on the bearing.
Figure 2: Fluid-film pressure profile.

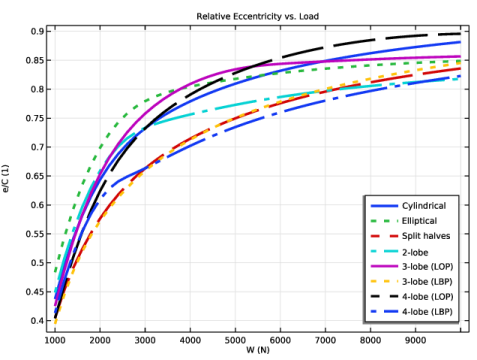

Several results from the simulation provide valuable information about bearing performance. Figure 3 shows a plot of journal eccentricity versus load. The journals that exhibit lower eccentricity are the better ones. From the plot, it seems that the split-halves and 3-lobe LBP (load between pad) bearings have optimum eccentricity in the operating range. For loads higher than 5000 N, the 4-lobe bearing with load on pad (LOP) has the largest eccentricity, while the 4-lobe LBP has the smallest one. The performances of the other bearings lie somewhere in between.
Figure 3: Eccentricity vs. load.
The equilibrium position of the journals is shown in Figure 4 with increasing load W. The y-coordinate of the journal position is plotted on the x-axis, and the z-coordinate is plotted on the y-axis. When the load W is small, all journals tend to move more in the y direction while the movement in the z direction is small. However, as the load increases, they move significantly in the negative z direction and touch the bottom part of the bearing. In the hydrodynamic bearing, two types of forces act on the journal. One, a radial force due to the pressure distribution in the film and other, a tangential viscous force due to the shear in the film. The journal equilibrium position depends on the relative magnitude of these forces. If the shear force is dominant and is enough to support the weight of the journal, equilibrium position is more toward the horizontal direction. For a large journal weight, shear force alone cannot support the journal and a radial force is also needed. In such a case, journal equilibrium position will move in the negative z direction.
Figure 4: Journal position.
Figure 5 shows the plot of the fluid thickness profile when the journal is concentric with the bearing. The geometric parameters of bearings are set in such a way that the minimum and maximum clearances are the same for all bearings except for the cylindrical bearing, which is kept at the mean position.
Figure 5: Initial thickness profile.

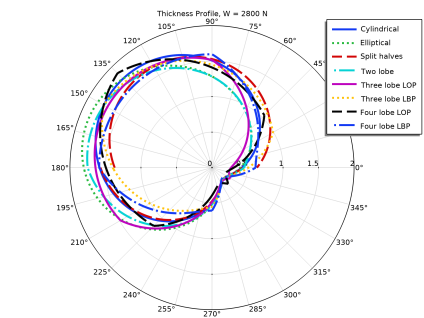

Figure 6 shows a plot of the steady-state (current) thickness profile of the fluid.
Figure 6: Current thickness profile.

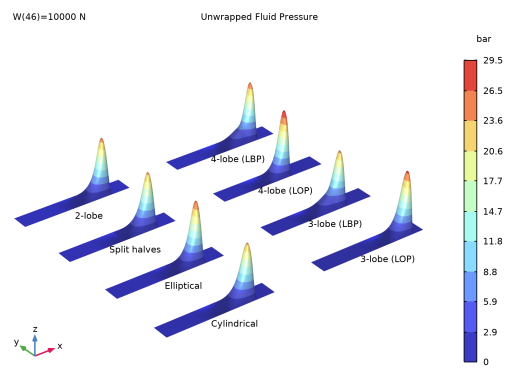

In Figure 7, the fluid-film pressure profiles is unwrapped from the bearing surface and the resulting surface is compared between the eight different bearing types. Similarly, Figure 8 compares the unwrapped velocity fields.
Figure 7: Unwrapped fluid-film pressure profile.
Figure 8: Unwrapped fluid-film pressure and velocity field.
Notes About the COMSOL Implementation
In the computation, use an Auxiliary sweep study extension on the load applied by the journal on the bearing to automatically run a loop over the parameter. The Auxiliary sweep functionality is activated in the study step settings.
Application Library path: Rotordynamics_Module/Tutorials/hydrodynamic_bearings_comparison
Modeling Instructions
From the File menu, choose New.
New
In the New window, click  Model Wizard.
Model Wizard
1
In the Model Wizard window, click  3D.
2
In the Select Physics tree, select Structural Mechanics > Rotordynamics > Hydrodynamic Bearing (hdb).
3
Click Add.
4
Click  Study.
5
In the Select Study tree, select General Studies > Stationary.
6
Click  Done.
Global Definitions
Parameters 1
1
In the Model Builder window, under Global Definitions click Parameters 1.
2
In the Settings window for Parameters, locate the Parameters section.
3
In the table, enter the following settings:
Name
Expression
Value
Description
Rj
0.1[m]
0.1 m
Radius of journal
H
0.1[m]
0.1 m
Height of journal
C
0.001[m]
0.001 m
Mean bearing clearance
d
0.1*C
1E-4 m
Pad center offset
Cmax
C+d
0.0011 m
Maximum bearing clearance
Cmin
C-d
9E-4 m
Minimum bearing clearance
Ow
200[rad/s]
200 rad/s
RPS
W
100[N]
100 N
Load on bearing, z-component
mu
0.072[Pa*s]
0.072 Pa·s
Dynamic viscosity
Geometry 1
Cylinder 1 (cyl1)
1
In the Geometry toolbar, click  Cylinder.
2
In the Settings window for Cylinder, locate the Size and Shape section.
3
In the Radius text field, type Rj.
4
In the Height text field, type H.
5
Locate the Axis section. From the Axis type list, choose x-axis.
6
Locate the Object Type section. From the Type list, choose Surface.
7
Click  Build Selected.
Array 1 (arr1)
Replicate 7 more cylinders along the x direction by executing the following commands.
1
In the Geometry toolbar, click  Transforms and choose Array.
2
Select the object cyl1 only.
3
In the Settings window for Array, locate the Size section.
4
In the x size text field, type 8.
5
Locate the Displacement section. In the x text field, type 2*H.
Form Union (fin)
1
In the Geometry toolbar, click  Build All.
2
Click the  Zoom Extents button in the Graphics toolbar.
Definitions
Cylindrical bearing
1
In the Definitions toolbar, click  Explicit.
2
In the Settings window for Explicit, type Cylindrical bearing in the Label text field.
3
Locate the Input Entities section. From the Geometric entity level list, choose Boundary.
4
Select Boundary 1 only.
5
Select the Group by continuous tangent checkbox.
Selecting this checkbox allows automatic selection of multiple surfaces across which the tangent is continuous.
Elliptical bearing
1
Right-click Cylindrical bearing and choose Duplicate.
2
In the Settings window for Explicit, type Elliptical bearing in the Label text field.
3
Locate the Input Entities section. Click  Clear Selection.
4
Select Boundaries 5–8 only.
Explicit Selections
1
Repeat above sequence of commands to add more Explicit selections using the information given in the following table:
Name
Selection
Split halves bearing
9, 10, 11, 12
Two lobe bearing
13, 14, 15, 16
Three Lobe bearing (LOP)
17, 18, 19, 20
Three lobe bearing (LBP)
21, 22, 23, 24
Four lobe bearing (LOP)
25, 26, 27, 28
Four lobe bearing (LBP)
29, 30, 31, 32
The table above displays the entire selection for each bearing. But to create for example the Hydrodynamic Journal Bearing (Split halves) selection, selecting surface 9 is enough. This is so because you duplicate the existing selection to create the new ones and the Group by continuous tangent checkbox is already selected within the old.
2
In the Model Builder window, collapse the Definitions node.
Hydrodynamic Bearing (hdb)
1
Click the  Show More Options button in the Model Builder toolbar.
2
In the Show More Options dialog, in the tree, select the checkbox for the node Physics > Advanced Physics Options.
3
In the tree, select Physics > Stabilization.
4
In the tree, select the checkbox for the node Physics > Stabilization.
5
Click OK.
6
In the Model Builder window, under Component 1 (comp1) click Hydrodynamic Bearing (hdb).
7
In the Settings window for Hydrodynamic Bearing, locate the Physical Model section.
8
From the Fluid type list, choose Liquid with cavitation.
You can change the compressibility β inside the bearing node.
9
Click to expand the Inconsistent Stabilization section. In the δartificial text field, type 20.
The tuning parameter is increased to improve the stabilization in the cavitated film.
Hydrodynamic Journal Bearing (Cylindrical)
1
In the Model Builder window, under Component 1 (comp1) > Hydrodynamic Bearing (hdb) click Hydrodynamic Journal Bearing 1.
2
In the Settings window for Hydrodynamic Journal Bearing, type Hydrodynamic Journal Bearing (Cylindrical) in the Label text field.
3
Locate the Bearing Properties section. In the C text field, type C.
4
Locate the Journal Properties section. From the Specify list, choose Load.
5
Specify the Wj vector as
0
x
0
y
-W
z
6
Specify the uj0 vector as
0
x
0
y
-0.1*C
z
7
In the Ω text field, type Ow.
8
Locate the Fluid Properties section. From the μ list, choose User defined. In the associated text field, type mu.
9
Locate the Bearing Properties section. From the Xc list, choose From geometry.
Hydrodynamic Journal Bearing (Elliptical)
1
Right-click Hydrodynamic Journal Bearing (Cylindrical) and choose Duplicate.
2
In the Settings window for Hydrodynamic Journal Bearing, type Hydrodynamic Journal Bearing (Elliptical) in the Label text field.
3
Locate the Boundary Selection section. From the Selection list, choose Elliptical bearing.
4
Locate the Bearing Properties section. From the Bearing type list, choose Elliptical.
5
In the Cmin text field, type Cmin.
6
In the Cmax text field, type Cmax.
7
From the Xc list, choose From geometry.
Hydrodynamic Journal Bearing (Split halves)
1
Right-click Hydrodynamic Journal Bearing (Elliptical) and choose Duplicate.
2
In the Settings window for Hydrodynamic Journal Bearing, type Hydrodynamic Journal Bearing (Split halves) in the Label text field.
3
Locate the Boundary Selection section. From the Selection list, choose Split halves bearing.
4
Locate the Bearing Properties section. From the Bearing type list, choose Split halves.
5
In the C text field, type C.
6
From the Preload factor list, choose Compute from offset.
7
In the d text field, type d.
8
From the Xc list, choose From geometry.
Hydrodynamic Journal Bearing (2-lobe)
1
Right-click Hydrodynamic Journal Bearing (Split halves) and choose Duplicate.
2
In the Settings window for Hydrodynamic Journal Bearing, type Hydrodynamic Journal Bearing (2-lobe) in the Label text field.
3
Locate the Boundary Selection section. From the Selection list, choose Two lobe bearing.
4
Locate the Bearing Properties section. From the Bearing type list, choose Multilobe.
5
In the C text field, type Cmax.
6
From the Preload factor list, choose Compute from offset.
7
In the d text field, type 2*d.
8
From the Xc list, choose From geometry.
Hydrodynamic Journal Bearing (3-lobe LOP)
1
Right-click Hydrodynamic Journal Bearing (2-lobe) and choose Duplicate.
2
In the Settings window for Hydrodynamic Journal Bearing, type Hydrodynamic Journal Bearing (3-lobe LOP) in the Label text field.
3
Locate the Boundary Selection section. From the Selection list, choose Three Lobe bearing (LOP).
4
Locate the Bearing Properties section. In the C text field, type 2*Cmax-Cmin.
5
In the d text field, type 4*d.
6
In the N text field, type 3.
7
From the Xc list, choose From geometry.
Hydrodynamic Journal Bearing (3-lobe LBP)
1
Right-click Hydrodynamic Journal Bearing (3-lobe LOP) and choose Duplicate.
2
In the Settings window for Hydrodynamic Journal Bearing, type Hydrodynamic Journal Bearing (3-lobe LBP) in the Label text field.
3
Locate the Boundary Selection section. From the Selection list, choose Three lobe  bearing (LBP).
4
Locate the Bearing Properties section. From the Xc list, choose From geometry.
Hydrodynamic Journal Bearing (4-lobe LOP)
1
Right-click Hydrodynamic Journal Bearing (3-lobe LBP) and choose Duplicate.
2
In the Settings window for Hydrodynamic Journal Bearing, type Hydrodynamic Journal Bearing (4-lobe LOP) in the Label text field.
3
Locate the Boundary Selection section. From the Selection list, choose Four lobe bearing (LOP).
4
Locate the Bearing Properties section. In the C text field, type (sqrt(2)*Cmax-Cmin)/(sqrt(2)-1).
5
In the d text field, type sqrt(2)*(Cmax-Cmin)/(sqrt(2)-1).
6
In the N text field, type 4.
7
From the Xc list, choose From geometry.
Hydrodynamic Journal Bearing (4-lobe LBP)
1
Right-click Hydrodynamic Journal Bearing (4-lobe LOP) and choose Duplicate.
2
In the Settings window for Hydrodynamic Journal Bearing, type Hydrodynamic Journal Bearing (4-lobe LBP) in the Label text field.
3
Locate the Boundary Selection section. From the Selection list, choose Four lobe bearing (LBP).
4
Locate the Bearing Properties section. From the Xc list, choose From geometry.
Next set the orientation of the bearings using the following instructions.
Bearing Orientation Hydrodynamic Journal Bearing (3-lobe LOP)
1
In the Physics toolbar, click  Boundaries and choose Bearing Orientation.
2
In the Settings window for Bearing Orientation, type Bearing Orientation Hydrodynamic Journal Bearing (3-lobe LOP) in the Label text field.
3
Locate the Boundary Selection section. From the Selection list, choose Three Lobe bearing (LOP).
4
Locate the Bearing Orientation section. In the ϕ text field, type -pi/6.
Bearing Orientation Hydrodynamic Journal Bearing (3-lobe LBP)
1
Right-click Bearing Orientation Hydrodynamic Journal Bearing (3-lobe LOP) and choose Duplicate.
2
In the Settings window for Bearing Orientation, type Bearing Orientation Hydrodynamic Journal Bearing (3-lobe LBP) in the Label text field.
3
Locate the Boundary Selection section. From the Selection list, choose Three lobe  bearing (LBP).
4
Locate the Bearing Orientation section. In the ϕ text field, type pi/6.
Bearing Orientation Hydrodynamic Journal Bearing (4-lobe LOP)
1
Right-click Bearing Orientation Hydrodynamic Journal Bearing (3-lobe LBP) and choose Duplicate.
2
In the Settings window for Bearing Orientation, type Bearing Orientation Hydrodynamic Journal Bearing (4-lobe LOP) in the Label text field.
3
Locate the Boundary Selection section. From the Selection list, choose Four lobe bearing (LOP).
4
Locate the Bearing Orientation section. In the ϕ text field, type pi/4.
Mesh 1
Mapped 1
1
In the Mesh toolbar, click  More Generators and choose Mapped.
2
In the Settings window for Mapped, locate the Boundary Selection section.
3
From the Selection list, choose All boundaries.
Distribution 1
1
Right-click Mapped 1 and choose Distribution.
2
In the Settings window for Distribution, locate the Edge Selection section.
3
From the Selection list, choose All edges.
4
Locate the Distribution section. In the Number of elements text field, type 15.
5
In the Model Builder window, right-click Mesh 1 and choose Build All.
Study 1
Step 1: Stationary
1
In the Model Builder window, under Study 1 click Step 1: Stationary.
2
In the Settings window for Stationary, click to expand the Study Extensions section.
Use following instructions to add an Auxiliary sweep on load W.
3
Select the Auxiliary sweep checkbox.
4
Click  Add.
5
In the table, enter the following settings:
Parameter name
Parameter value list
Parameter unit
W (Load on bearing, z-component)
range(1000,200,10000)
N
6
In the Study toolbar, click  Compute.
Set preferred units for the pressure by following the instructions below.
Results
Preferred Units 1
1
In the Results toolbar, click  Configurations and choose Preferred Units.
2
In the Settings window for Preferred Units, locate the Units section.
3
Click  Add Physical Quantity.
4
In the Physical Quantity dialog, type pres in the text field.
5
In the tree, select General > Pressure (Pa).
6
Click OK.
7
In the Settings window for Preferred Units, locate the Units section.
8
In the table, enter the following settings:
Quantity
Unit
Preferred unit
Pressure
Pa
bar
9
Click  Apply.
Fluid Pressure (hdb)
1
In the Model Builder window, under Results click Fluid Pressure (hdb).
2
In the Settings window for 3D Plot Group, click to expand the Title section.
3
From the Title type list, choose Label.
4
Locate the Color Legend section. Select the Show units checkbox.
The dependent variable pfilm in the default plot does not represent the physical pressure and can have a negative value in the cavitated zone. Use physics scope variable hdb.p instead to show the physical pressure in the bearings.
Surface 1
1
In the Model Builder window, expand the Fluid Pressure (hdb) node, then click Surface 1.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type hdb.p.
Contour 1
1
In the Model Builder window, click Contour 1.
2
In the Settings window for Contour, locate the Expression section.
3
In the Expression text field, type hdb.p.
4
In the Fluid Pressure (hdb) toolbar, click  Plot.
5
Click the  Zoom Extents button in the Graphics toolbar.
Use the following instructions to plot the eccentricity of the journals against the load as shown in Figure 3.
Relative Eccentricity vs. Load
1
In the Results toolbar, click  1D Plot Group.
2
In the Settings window for 1D Plot Group, type Relative Eccentricity vs. Load in the Label text field.
3
Click to expand the Title section. From the Title type list, choose Label.
4
Locate the Plot Settings section.
5
Select the x-axis label checkbox. In the associated text field, type W (N).
6
Select the y-axis label checkbox. In the associated text field, type e/C (1).
Global 1
1
Right-click Relative Eccentricity vs. Load and choose Global.
2
In the Settings window for Global, click Replace Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (Cylindrical) > Eccentricity and attitude angle > hdb.hjb1.ec_rel - Relative eccentricity - 1.
3
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (Elliptical) > Eccentricity and attitude angle > hdb.hjb2.ec_rel - Relative eccentricity - 1.
4
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (Split halves) > Eccentricity and attitude angle > hdb.hjb3.ec_rel - Relative eccentricity - 1.
5
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (2-lobe) > Eccentricity and attitude angle > hdb.hjb4.ec_rel - Relative eccentricity - 1.
6
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (3-lobe LOP) > Eccentricity and attitude angle > hdb.hjb5.ec_rel - Relative eccentricity - 1.
7
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (3-lobe LBP) > Eccentricity and attitude angle > hdb.hjb6.ec_rel - Relative eccentricity - 1.
8
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (4-lobe LOP) > Eccentricity and attitude angle > hdb.hjb7.ec_rel - Relative eccentricity - 1.
9
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (4-lobe LBP) > Eccentricity and attitude angle > hdb.hjb8.ec_rel - Relative eccentricity - 1.
10
Locate the y-Axis Data section. In the table, enter the following settings:
Expression
Unit
Description
hdb.hjb1.ec_rel
1
Cylindrical
hdb.hjb2.ec_rel
1
Elliptical
hdb.hjb3.ec_rel
1
Split halves
hdb.hjb4.ec_rel
1
2-lobe
hdb.hjb5.ec_rel
1
3-lobe (LOP)
hdb.hjb6.ec_rel
1
3-lobe (LBP)
hdb.hjb7.ec_rel
1
4-lobe (LOP)
hdb.hjb8.ec_rel
1
4-lobe (LBP)
11
Click to expand the Coloring and Style section. Find the Line style subsection. From the Line list, choose Cycle.
12
From the Width list, choose 3.
Relative Eccentricity vs. Load
1
In the Model Builder window, click Relative Eccentricity vs. Load.
2
In the Settings window for 1D Plot Group, locate the Legend section.
3
From the Position list, choose Lower right.
4
In the Relative Eccentricity vs. Load toolbar, click  Plot.
5
Click the  Zoom Extents button in the Graphics toolbar.
6
In the Model Builder window, collapse the Relative Eccentricity vs. Load node.
Use the following instructions to plot the attitude angle against the load.
Attitude Angle vs. Load
1
In the Results toolbar, click  1D Plot Group.
2
In the Settings window for 1D Plot Group, type Attitude Angle vs. Load in the Label text field.
3
Locate the Title section. From the Title type list, choose Label.
4
Locate the Plot Settings section.
5
Select the x-axis label checkbox. In the associated text field, type W (N).
6
Select the y-axis label checkbox. In the associated text field, type \phi (degree).
Global 1
1
Right-click Attitude Angle vs. Load and choose Global.
2
In the Settings window for Global, click Replace Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (Cylindrical) > Eccentricity and attitude angle > hdb.hjb1.phia - Attitude angle - rad.
3
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (Elliptical) > Eccentricity and attitude angle > hdb.hjb2.phia - Attitude angle - rad.
4
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (Split halves) > Eccentricity and attitude angle > hdb.hjb3.phia - Attitude angle - rad.
5
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (2-lobe) > Eccentricity and attitude angle > hdb.hjb4.phia - Attitude angle - rad.
6
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (3-lobe LOP) > Eccentricity and attitude angle > hdb.hjb5.phia - Attitude angle - rad.
7
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (3-lobe LBP) > Eccentricity and attitude angle > hdb.hjb6.phia - Attitude angle - rad.
8
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (4-lobe LOP) > Eccentricity and attitude angle > hdb.hjb7.phia - Attitude angle - rad.
9
Click Add Expression in the upper-right corner of the y-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Hydrodynamic Journal Bearing (4-lobe LBP) > Eccentricity and attitude angle > hdb.hjb8.phia - Attitude angle - rad.
10
Locate the y-Axis Data section. In the table, enter the following settings:
Expression
Unit
Description
hdb.hjb1.phia
deg
Cylindrical
hdb.hjb2.phia
deg
Elliptical
hdb.hjb3.phia
deg
Split halves
hdb.hjb4.phia
deg
2-lobe
hdb.hjb5.phia
deg
3-lobe (LOP)
hdb.hjb6.phia
deg
3-lobe (LBP)
hdb.hjb7.phia
deg
4-lobe (LOP)
hdb.hjb8.phia
deg
4-lobe (LBP)
11
Locate the Coloring and Style section. Find the Line style subsection. From the Line list, choose Cycle.
12
From the Width list, choose 3.
Attitude Angle vs. Load
1
In the Model Builder window, click Attitude Angle vs. Load.
2
In the Attitude Angle vs. Load toolbar, click  Plot.
3
Click the  Zoom Extents button in the Graphics toolbar.
4
In the Model Builder window, collapse the Attitude Angle vs. Load node.
Use the following instructions to plot the journal position versus load as shown in Figure 4.
Journal Position
1
In the Results toolbar, click  1D Plot Group.
2
In the Settings window for 1D Plot Group, type Journal Position in the Label text field.
3
Locate the Title section. From the Title type list, choose Label.
4
Locate the Plot Settings section.
5
Select the x-axis label checkbox. In the associated text field, type u<sub>y</sub>/C (1).
6
Select the y-axis label checkbox. In the associated text field, type u<sub>z</sub>/C (1).
Cylindrical
1
Right-click Journal Position and choose Global.
2
In the Settings window for Global, type Cylindrical in the Label text field.
3
Locate the y-Axis Data section. In the table, enter the following settings:
Expression
Unit
Description
hdb.hjb1.uJz/C
1

4
Locate the x-Axis Data section. From the Parameter list, choose Expression.
5
In the Expression text field, type hdb.hjb1.uJy/C.
6
Locate the Coloring and Style section. Find the Line style subsection. From the Line list, choose Cycle.
7
From the Width list, choose 3.
8
Click to expand the Legends section. Find the Include subsection. Clear the Solution checkbox.
9
Clear the Description checkbox.
10
Select the Label checkbox.
Elliptical
1
Right-click Cylindrical and choose Duplicate.
2
In the Settings window for Global, type Elliptical in the Label text field.
3
Locate the y-Axis Data section. In the table, enter the following settings:
Expression
Unit
Description
hdb.hjb2.uJz/C
1

4
Locate the x-Axis Data section. In the Expression text field, type hdb.hjb2.uJy/C.
Global Display Nodes
Similarly add six more Global display nodes using the information given in the following table:
Name
y axis Data
x axis Data
Legends
Split halves
hdb.hjb3.uJz/C
hdb.hjb3.uJy/C
Split halves
Two lobe
hdb.hjb4.uJz/C
hdb.hjb4.uJy/C
Two lobe
Three lobe LOP
hdb.hjb5.uJz/C
hdb.hjb5.uJy/C
Three lobe LOP
Three lobe LBP
hdb.hjb6.uJz/C
hdb.hjb6.uJy/C
Three lobe LBP
Four lobe LOP
hdb.hjb7.uJz/C
hdb.hjb7.uJy/C
Four lobe LOP
Four lobe LBP
hdb.hjb8.uJz/C
hdb.hjb8.uJy/C
Four lobe LBP
Journal Position
1
In the Model Builder window, click Journal Position.
2
In the Settings window for 1D Plot Group, locate the Legend section.
3
From the Position list, choose Upper left.
4
In the Journal Position toolbar, click  Plot.
5
Click the  Zoom Extents button in the Graphics toolbar.
6
In the Model Builder window, collapse the Journal Position node.
Use the following instructions to plot the initial thickness profile of the fluid film as shown in Figure 5.
Initial Thickness Profile
1
In the Results toolbar, click  Polar Plot Group.
2
In the Settings window for Polar Plot Group, type Initial Thickness Profile in the Label text field.
3
Locate the Data section. From the Parameter selection (W) list, choose First.
4
Click to expand the Title section. From the Title type list, choose Label.
5
Locate the Axis section. Select the Manual axis limits checkbox.
6
In the r minimum text field, type 0.6.
7
In the r maximum text field, type 1.2.
Cylindrical
1
Right-click Initial Thickness Profile and choose Line Graph.
2
Select Edges 1, 2, 4, and 6 only.
3
In the Settings window for Line Graph, click Replace Expression in the upper-right corner of the r-Axis Data section. From the menu, choose Component 1 (comp1) > Hydrodynamic Bearing > Journal and bearing properties > Film thickness and clearance > hdb.hi_rel - Relative film thickness, initial - 1.
4
Locate the r-Axis Data section.
5
Select the Description checkbox. In the associated text field, type Cylindrical.
6
Locate the θ Angle Data section. From the Parameter list, choose Expression.
7
In the Expression text field, type hdb.Th+hdb.ang_bearing.
8
Click to expand the Coloring and Style section. Find the Line style subsection. From the Line list, choose Cycle.
9
From the Width list, choose 3.
10
Click to expand the Legends section. Select the Show legends checkbox.
11
Find the Include subsection. Clear the Solution checkbox.
12
Select the Label checkbox.
13
In the Label text field, type Cylindrical.
Elliptical
1
Right-click Cylindrical and choose Duplicate.
2
In the Settings window for Line Graph, type Elliptical in the Label text field.
3
Locate the Selection section. Click  Clear Selection.
4
Select Edges 13, 14, 16, and 18 only.
5
Locate the r-Axis Data section. In the Description text field, type Elliptical.
Line graph Nodes
Similarly add more Line Graph nodes using the information given in the following table:
Name
Selection
r-Axis Data: Expression
Legends
Split halves
25, 26, 28, 30
Split halves
Split halves
Two lobe
37, 38, 40, 42
Two lobe
Two lobe
Three lobe LOP
49, 50, 52, 54
Three lobe LOP
Three lobe LOP
Three lobe LBP
61, 62, 64, 66
Three lobe LBP
(As is)
Four lobe LOP
73, 74, 76, 78
Four lobe LOP
Four lobe LOP
Four lobe LBP
85, 86, 88, 90
Four lobe LBP
Four lobe LBP
Initial Thickness Profile
1
In the Model Builder window, click Initial Thickness Profile.
2
In the Initial Thickness Profile toolbar, click  Plot.
Use the following instructions to plot the current thickness profile of the fluid film as shown in Figure 6 using the following instructions.
Initial Thickness Profile 1
Right-click Initial Thickness Profile and choose Duplicate.
Initial Thickness Profile
In the Model Builder window, collapse the Results > Initial Thickness Profile node.
Current Thickness Profile
1
In the Model Builder window, under Results click Initial Thickness Profile 1.
2
In the Settings window for Polar Plot Group, type Current Thickness Profile in the Label text field.
3
Click to expand the Title section. From the Title type list, choose Manual.
4
In the Title text area, type Thickness Profile, W = 2800 N.
Line graph Nodes
1
Edit the existing Line Graph nodes under Polar: Current Thickness Profile using the information given in the following table:
Name
r-Axis Data: Expression
theta angle data: Expression
Cylindrical
hdb.h_rel
mod(hdb.Th+hdb.ang_bearing,2*pi)
Elliptical
hdb.h_rel
mod(hdb.Th+hdb.ang_bearing,2*pi)
Split halves
hdb.h/C
mod(hdb.Th+hdb.ang_bearing,2*pi)
Two lobe
hdb.h_rel
mod(hdb.Th+hdb.ang_bearing,2*pi)
Three lobe LOP
hdb.h_rel
mod(hdb.Th+hdb.ang_bearing,2*pi)
Three lobe LBP
hdb.h_rel
mod(hdb.Th+hdb.ang_bearing,2*pi)
Four lobe LOP
hdb.h_rel
mod(hdb.Th+hdb.ang_bearing,2*pi)
Four lobe LBP
hdb.h_rel
mod(hdb.Th+hdb.ang_bearing,2*pi)
2
In the Model Builder window, expand the Current Thickness Profile node, then click Results > Current Thickness Profile.
3
Locate the Data section. From the Parameter selection (W) list, choose Manual.
4
In the Parameter indices (1-46) text field, type 15.
5
Locate the Axis section. In the r minimum text field, type 0.0.
6
In the r maximum text field, type 2.0.
7
In the Current Thickness Profile toolbar, click  Plot.
8
In the Model Builder window, collapse the Results > Current Thickness Profile node.
Result Templates
Add unwrapped plots for all the bearings, to create the associated datasets.
1
In the Results toolbar, click  Result Templates to open the Result Templates window.
2
Go to the Result Templates window.
3
In the tree, select Study 1/Solution 1 (sol1) > Hydrodynamic Bearing > Unwrapped Plots (hjb1), Study 1/Solution 1 (sol1) > Hydrodynamic Bearing > Unwrapped Plots (hjb2), Study 1/Solution 1 (sol1) > Hydrodynamic Bearing > Unwrapped Plots (hjb3), Study 1/Solution 1 (sol1) > Hydrodynamic Bearing > Unwrapped Plots (hjb4), Study 1/Solution 1 (sol1) > Hydrodynamic Bearing > Unwrapped Plots (hjb5), Study 1/Solution 1 (sol1) > Hydrodynamic Bearing > Unwrapped Plots (hjb6), Study 1/Solution 1 (sol1) > Hydrodynamic Bearing > Unwrapped Plots (hjb7), and Study 1/Solution 1 (sol1) > Hydrodynamic Bearing > Unwrapped Plots (hjb8).
4
Click the Add Result Template button in the window toolbar.
5
In the Results toolbar, click  Result Templates to close the Result Templates window.
Results
Unwrapped Plots (hjb1)
In the Model Builder window, under Results right-click Unwrapped Plots (hjb1) and choose Ungroup.
Unwrapped Fluid Pressure
1
In the Model Builder window, under Results click Unwrapped Fluid Pressure (hjb1).
2
In the Settings window for 2D Plot Group, type Unwrapped Fluid Pressure in the Label text field.
3
Click to expand the Title section. From the Title type list, choose Label.
4
Locate the Color Legend section. Select the Show units checkbox.
5
Click to expand the Plot Array section. Select the Enable checkbox.
6
From the Array shape list, choose Square.
7
From the Padding list, choose Absolute.
8
In the Row padding length text field, type 3*H.
9
In the Column padding length text field, type 3*H.
Pressure (Cylindrical)
1
In the Model Builder window, expand the Unwrapped Fluid Pressure node, then click Surface 1.
2
In the Settings window for Surface, type Pressure (Cylindrical) in the Label text field.
Pressure (Elliptical)
1
Right-click Pressure (Cylindrical) and choose Duplicate.
2
In the Settings window for Surface, type Pressure (Elliptical) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Surface (hjb2).
4
Click to expand the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
5
Click to expand the Plot Array section. Select the Manual indexing checkbox.
6
In the Row index text field, type 1.
Pressure (Split Halves)
1
Right-click Pressure (Cylindrical) and choose Duplicate.
2
In the Settings window for Surface, type Pressure (Split Halves) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Surface (hjb3).
4
Locate the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
5
Locate the Plot Array section. Select the Manual indexing checkbox.
6
In the Row index text field, type 2.
Pressure (2-lobe)
1
Right-click Pressure (Cylindrical) and choose Duplicate.
2
In the Settings window for Surface, type Pressure (2-lobe) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Surface (hjb4).
4
Locate the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
5
Locate the Plot Array section. Select the Manual indexing checkbox.
6
In the Row index text field, type 3.
Pressure (3-lobe LOP)
1
Right-click Pressure (Cylindrical) and choose Duplicate.
2
In the Settings window for Surface, type Pressure (3-lobe LOP) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Surface (hjb5).
4
Locate the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
5
Locate the Plot Array section. Select the Manual indexing checkbox.
6
In the Column index text field, type 1.
Pressure (3-lobe LBP)
1
Right-click Pressure (Cylindrical) and choose Duplicate.
2
In the Settings window for Surface, type Pressure (3-lobe LBP) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Surface (hjb6).
4
Locate the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
5
Locate the Plot Array section. Select the Manual indexing checkbox.
6
In the Row index text field, type 1.
7
In the Column index text field, type 1.
8
In the Unwrapped Fluid Pressure toolbar, click  Plot.
Pressure (4-lobe LOP)
1
Right-click Pressure (Cylindrical) and choose Duplicate.
2
In the Settings window for Surface, type Pressure (4-lobe LOP) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Surface (hjb7).
4
Locate the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
5
Locate the Plot Array section. Select the Manual indexing checkbox.
6
In the Row index text field, type 2.
7
In the Column index text field, type 1.
Pressure (4-lobe LBP)
1
Right-click Pressure (Cylindrical) and choose Duplicate.
2
In the Settings window for Surface, type Pressure (4-lobe LBP) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Surface (hjb8).
4
Locate the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
5
Locate the Plot Array section. Select the Manual indexing checkbox.
6
In the Row index text field, type 3.
7
In the Column index text field, type 1.
Unwrapped Fluid Pressure
In the Model Builder window, click Unwrapped Fluid Pressure.
Table Annotation 1
1
In the Unwrapped Fluid Pressure toolbar, click  More Plots and choose Table Annotation.
2
In the Settings window for Table Annotation, locate the Data section.
3
From the Source list, choose Local table.
4
In the table, enter the following settings:
x-coordinate
y-coordinate
Annotation
Rj*pi
-3*H/2
Cylindrical
Rj*pi
5*H/2
Elliptical
Rj*pi
13*H/2
Split halves
Rj*pi
21*H/2
2-lobe
3*Rj*pi+3*H
-3*H/2
3-lobe (LOP)
3*Rj*pi+3*H
5*H/2
3-lobe (LBP)
3*Rj*pi+3*H
13*H/2
4-lobe (LOP)
3*Rj*pi+3*H
21*H/2
4-lobe (LBP)
5
Locate the Coloring and Style section. Clear the Show point checkbox.
6
From the Anchor point list, choose Center.
7
In the Unwrapped Fluid Pressure toolbar, click  Plot.
8
Click the  Go to Default View button in the Graphics toolbar.
9
Click the  Zoom Extents button in the Graphics toolbar.
Unwrapped Fluid Pressure
In the Model Builder window, collapse the Results > Unwrapped Fluid Pressure node.
Unwrapped Velocity
1
In the Model Builder window, under Results click Unwrapped Velocity (hjb1).
2
In the Settings window for 2D Plot Group, type Unwrapped Velocity in the Label text field.
3
Click to expand the Title section. From the Title type list, choose Manual.
4
In the Title text area, type Fluid Pressure, Fluid Velocity.
5
Locate the Color Legend section. Select the Show units checkbox.
6
Click to expand the Plot Array section. Select the Enable checkbox.
7
From the Array shape list, choose Square.
8
From the Padding list, choose Absolute.
9
In the Row padding length text field, type 2*H.
10
In the Column padding length text field, type 2*H.
Pressure (Cylindrical)
1
In the Model Builder window, expand the Unwrapped Velocity node, then click Pressure.
2
In the Settings window for Surface, type Pressure (Cylindrical) in the Label text field.
3
Click to expand the Plot Array section. Select the Manual indexing checkbox.
Velocity (Cylindrical)
1
In the Model Builder window, click Velocity.
2
In the Settings window for Arrow Surface, type Velocity (Cylindrical) in the Label text field.
3
Click to expand the Plot Array section. Select the Manual indexing checkbox.
Pressure (Cylindrical), Velocity (Cylindrical)
1
In the Model Builder window, under Results > Unwrapped Velocity, Ctrl-click to select Pressure (Cylindrical) and Velocity (Cylindrical).
2
Right-click and choose Duplicate.
Pressure (Elliptical)
1
In the Settings window for Surface, type Pressure (Elliptical) in the Label text field.
2
Locate the Data section. From the Dataset list, choose Surface (hjb2).
3
Click to expand the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
4
Locate the Plot Array section. In the Row index text field, type 1.
Velocity (Elliptical)
1
In the Model Builder window, under Results > Unwrapped Velocity click Velocity (Cylindrical) 1.
2
In the Settings window for Arrow Surface, type Velocity (Elliptical) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Surface (hjb2).
4
Click to expand the Inherit Style section. From the Plot list, choose Velocity (Cylindrical).
5
Locate the Plot Array section. In the Row index text field, type 1.
6
In the Unwrapped Velocity toolbar, click  Plot.
Pressure (Cylindrical), Velocity (Cylindrical)
1
In the Model Builder window, under Results > Unwrapped Velocity, Ctrl-click to select Pressure (Cylindrical) and Velocity (Cylindrical).
2
Right-click and choose Duplicate.
Pressure (Split Halves)
1
In the Settings window for Surface, type Pressure (Split Halves) in the Label text field.
2
Locate the Data section. From the Dataset list, choose Surface (hjb3).
3
Click to expand the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
4
Locate the Plot Array section. In the Row index text field, type 2.
Velocity (Split Halves)
1
In the Model Builder window, under Results > Unwrapped Velocity click Velocity (Cylindrical) 1.
2
In the Settings window for Arrow Surface, type Velocity (Split Halves) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Surface (hjb3).
4
Click to expand the Inherit Style section. From the Plot list, choose Velocity (Cylindrical).
5
Locate the Plot Array section. In the Row index text field, type 2.
6
In the Unwrapped Velocity toolbar, click  Plot.
Pressure (Cylindrical), Velocity (Cylindrical)
1
In the Model Builder window, under Results > Unwrapped Velocity, Ctrl-click to select Pressure (Cylindrical) and Velocity (Cylindrical).
2
Right-click and choose Duplicate.
Pressure (2-lobe)
1
In the Settings window for Surface, type Pressure (2-lobe) in the Label text field.
2
Locate the Data section. From the Dataset list, choose Surface (hjb4).
3
Click to expand the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
4
Locate the Plot Array section. In the Row index text field, type 3.
Velocity (2-lobe)
1
In the Model Builder window, click Velocity (Cylindrical) 1.
2
In the Settings window for Arrow Surface, locate the Data section.
3
From the Dataset list, choose Surface (hjb4).
4
In the Label text field, type Velocity (2-lobe).
5
Click to expand the Inherit Style section. From the Plot list, choose Velocity (Cylindrical).
6
Locate the Plot Array section. In the Row index text field, type 3.
7
In the Unwrapped Velocity toolbar, click  Plot.
Pressure (Cylindrical), Velocity (Cylindrical)
1
In the Model Builder window, under Results > Unwrapped Velocity, Ctrl-click to select Pressure (Cylindrical) and Velocity (Cylindrical).
2
Right-click and choose Duplicate.
Pressure (3-lobe LOP)
1
In the Settings window for Surface, type Pressure (3-lobe LOP) in the Label text field.
2
Locate the Data section. From the Dataset list, choose Surface (hjb5).
3
Click to expand the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
4
Locate the Plot Array section. In the Column index text field, type 1.
Velocity (3-lobe LOP)
1
In the Model Builder window, under Results > Unwrapped Velocity click Velocity (Cylindrical) 1.
2
In the Settings window for Arrow Surface, type Velocity (3-lobe LOP) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Surface (hjb5).
4
Click to expand the Inherit Style section. From the Plot list, choose Velocity (Cylindrical).
5
Locate the Plot Array section. In the Column index text field, type 1.
6
In the Unwrapped Velocity toolbar, click  Plot.
Pressure (Cylindrical), Velocity (Cylindrical)
1
In the Model Builder window, under Results > Unwrapped Velocity, Ctrl-click to select Pressure (Cylindrical) and Velocity (Cylindrical).
2
Right-click and choose Duplicate.
Pressure (3-lobe LBP)
1
In the Settings window for Surface, type Pressure (3-lobe LBP) in the Label text field.
2
Locate the Data section. From the Dataset list, choose Surface (hjb6).
3
Click to expand the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
4
Locate the Plot Array section. In the Row index text field, type 1.
5
In the Column index text field, type 1.
Velocity (3-lobe LBP)
1
In the Model Builder window, under Results > Unwrapped Velocity click Velocity (Cylindrical) 1.
2
In the Settings window for Arrow Surface, type Velocity (3-lobe LBP) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Surface (hjb6).
4
Click to expand the Inherit Style section. From the Plot list, choose Velocity (Cylindrical).
5
Locate the Plot Array section. In the Row index text field, type 1.
6
In the Column index text field, type 1.
7
In the Unwrapped Velocity toolbar, click  Plot.
Pressure (Cylindrical), Velocity (Cylindrical)
1
In the Model Builder window, under Results > Unwrapped Velocity, Ctrl-click to select Pressure (Cylindrical) and Velocity (Cylindrical).
2
Right-click and choose Duplicate.
Pressure (4-lobe LOP)
1
In the Settings window for Surface, type Pressure (4-lobe LOP) in the Label text field.
2
Locate the Data section. From the Dataset list, choose Surface (hjb7).
3
Click to expand the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
4
Locate the Plot Array section. In the Row index text field, type 2.
5
In the Column index text field, type 1.
Velocity (4-lobe LOP)
1
In the Model Builder window, under Results > Unwrapped Velocity click Velocity (Cylindrical) 1.
2
In the Settings window for Arrow Surface, type Velocity (4-lobe LOP) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Surface (hjb7).
4
Click to expand the Inherit Style section. From the Plot list, choose Velocity (Cylindrical).
5
Locate the Plot Array section. In the Row index text field, type 2.
6
In the Column index text field, type 1.
7
In the Unwrapped Velocity toolbar, click  Plot.
Pressure (Cylindrical), Velocity (Cylindrical)
1
In the Model Builder window, under Results > Unwrapped Velocity, Ctrl-click to select Pressure (Cylindrical) and Velocity (Cylindrical).
2
Right-click and choose Duplicate.
Pressure (4-lobe LBP)
1
In the Settings window for Surface, type Pressure (4-lobe LBP) in the Label text field.
2
Locate the Data section. From the Dataset list, choose Surface (hjb8).
3
Click to expand the Inherit Style section. From the Plot list, choose Pressure (Cylindrical).
4
Locate the Plot Array section. In the Row index text field, type 3.
5
In the Column index text field, type 1.
Velocity (4-lobe LBP)
1
In the Model Builder window, click Velocity (Cylindrical) 1.
2
In the Settings window for Arrow Surface, locate the Data section.
3
From the Dataset list, choose Surface (hjb8).
4
In the Label text field, type Velocity (4-lobe LBP).
5
Click to expand the Inherit Style section. From the Plot list, choose Velocity (Cylindrical).
6
Locate the Plot Array section. In the Row index text field, type 3.
7
In the Column index text field, type 1.
Unwrapped Velocity
In the Model Builder window, click Unwrapped Velocity.
Table Annotation 1
1
In the Unwrapped Velocity toolbar, click  More Plots and choose Table Annotation.
2
In the Settings window for Table Annotation, locate the Data section.
3
From the Source list, choose Local table.
4
In the table, enter the following settings:
x-coordinate
y-coordinate
Annotation
Rj*pi
-H
Cylindrical
Rj*pi
2*H
Elliptical
Rj*pi
5*H
Split halves
Rj*pi
8*H
2-lobe
3*Rj*pi+2*H
-H
3-lobe (LOP)
3*Rj*pi+2*H
2*H
3-lobe (LBP)
3*Rj*pi+2*H
5*H
4-lobe (LOP)
3*Rj*pi+2*H
8*H
4-lobe (LBP)
5
Locate the Coloring and Style section. Clear the Show point checkbox.
6
From the Anchor point list, choose Center.
7
In the Unwrapped Velocity toolbar, click  Plot.
8
Click the  Zoom Extents button in the Graphics toolbar.
Unwrapped Velocity
In the Model Builder window, collapse the Results > Unwrapped Velocity node.
Unwrapped Plots (hjb2), Unwrapped Plots (hjb3), Unwrapped Plots (hjb4), Unwrapped Plots (hjb5), Unwrapped Plots (hjb6), Unwrapped Plots (hjb7), Unwrapped Plots (hjb8)
Delete unnecessary plots.
1
In the Model Builder window, under Results, Ctrl-click to select Unwrapped Plots (hjb2), Unwrapped Plots (hjb3), Unwrapped Plots (hjb4), Unwrapped Plots (hjb5), Unwrapped Plots (hjb6), Unwrapped Plots (hjb7), and Unwrapped Plots (hjb8).
2
Right-click and choose Delete.
